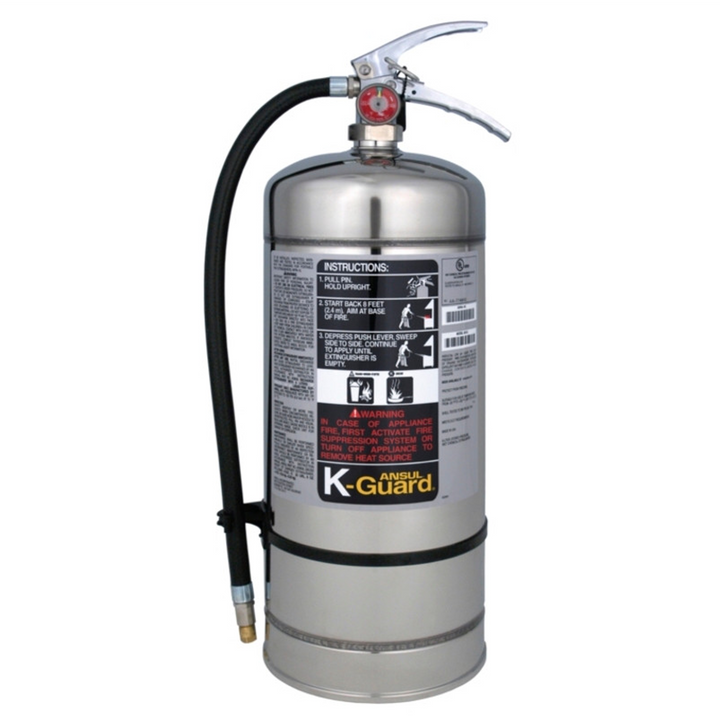

ANSUL Sentry K-Guard K01-3, 6-Liter Capacity Fire Extinguisher
Are you a fire protection company? Get wholesale pricing at HedrickPro
Wholesale PricingThe ANSUL Sentry K-Guard K01-3 is a specialized, professional-grade 6-liter Class K fire extinguisher specifically engineered to combat the unique hazards of modern commercial kitchens. While standard extinguishers are designed for wood or electrical fires, the K-Guard is built for one purpose: suppressing high-temperature fires involving vegetable oils, animal fats, and commercial frying media.
Charged with ANSULEX Low pH Liquid Suppressant, the K01-3 is the primary portable defense for fryers, griddles, and ranges. In a fire event, the agent is discharged in a fine, wide-angle mist that initiates saponification — chemically converting the burning fat into a soap-like foam. This foam blanket starves the fire of oxygen and provides a cooling effect that brings the oil temperature below its auto-ignition point. For facilities ranging from hospital cafeterias to five-star restaurant lines, the K-Guard is the essential companion to an ANSUL R-102 built-in suppression system.
Why Class K is Mandatory for Commercial Cooking
In the fire safety industry, the transition from animal fats to vegetable oils — which burn at much higher temperatures — necessitated the creation of the Class K designation. Standard ABC dry chemical extinguishers can actually be dangerous in these scenarios, as the high-pressure discharge can splash burning oil, and the dry chemical agent lacks the cooling capacity to prevent re-flash.
- The ANSULEX Advantage: The low pH agent is not only effective at suppression but is also significantly easier to clean up than traditional dry chemicals. This allows for faster kitchen recovery and less down-time after a minor incident.
- Controlled Application: The K-Guard features a soft-discharge nozzle that ensures the agent is applied gently to the surface of the oil, preventing the splashing of 600°F grease onto kitchen staff.
- Redundancy and Reliability: While your hood system (R-102) is your first line of defense, NFPA 10 requires a portable Class K unit within 30 feet of cooking equipment to handle fires that may start on the periphery or during system maintenance.
The K-Guard K01-3 is the specified choice for high-volume cooking environments where UL 300 standards are in effect:
- Hospitals and Healthcare: Provides a non-toxic, low-mess solution for sensitive medical environments.
- Hotels and Hospitality: The polished stainless steel finish provides a clean, professional aesthetic for open-concept kitchens.
- Airports and Institutional Dining: High-capacity 6-liter volume provides ample agent for large-scale fryer banks.
- Food Processing Plants: Rated 2-A:K, meaning it can also handle minor trash or wood fires (Class A) that occur near the cooking line.
The Engineering of the K-Guard K01-3
- Stainless Steel Shell: The K01-3 features a high-polished stainless steel cylinder. Unlike carbon steel, this resists the corrosive vapors and humidity common in commercial kitchens, ensuring a long service life.
- Trilingual Nameplate: The glare-resistant nameplate includes easy-to-read instructions in English, French, and Spanish, along with a high-resolution barcode for digital inspection tracking.
- Large Loop Stainless Steel Pin: Ergonomically designed for rapid use, allowing an operator to deploy the unit instantly even with greasy hands or while wearing kitchen safety gloves.
- Butt-Welded Construction: The cylinder is butt-welded to provide superior structural integrity under pressure, far exceeding the durability of seamed consumer-grade canisters.
| Feature | Details |
|---|---|
| Manufacturer | ANSUL (A Johnson Controls Brand) |
| Model | Sentry K-Guard K01-3 |
| Part Number | 434909 |
| Agent Type | ANSULEX Low pH Liquid |
| Capacity | 6 Liters (1.5 Gallons) |
| UL Rating | 2-A:K |
| Discharge Time | 45 Seconds |
| Discharge Range | 8 to 12 Feet |
| Cylinder Material | Polished Stainless Steel |
| Total Weight (Full) | 25 lbs (11.3 kg) |
The ANSUL K-Guard is a serviceable life-safety asset. To remain compliant with NFPA 10 and local fire codes, the following maintenance must be documented:
- Monthly Visual Check: Ensure the pressure gauge is in the green, the nozzle is unobstructed, and the unit is mounted at the correct height — no more than 5 feet from the floor.
- Annual Maintenance: A certified fire technician must check the agent's pH level and the mechanical operation of the valve.
- 5-Year Hydrostatic Test: Because it is a liquid-agent extinguisher, the stainless steel shell must undergo pressure testing every five years to ensure its integrity.
- UL 711 Compliance: The K-Guard is tested and listed under UL 711 for Rating and Testing of Fire Extinguishers, ensuring it meets rigorous firefighting standards.
Can I use an ABC extinguisher instead of a Class K?
No. Using an ABC extinguisher on a grease fire can cause the burning oil to splash and spread the fire to the walls or ceiling. Additionally, ABC powder does not cool the oil, meaning the fire is likely to re-ignite once the powder settles.
How many K-Guard units do I need?
Per NFPA 10, you must have at least one Class K extinguisher for every group of up to four deep fryers. The travel distance from any appliance to the extinguisher must not exceed 30 feet.
Is the ANSULEX agent safe?
Yes, it is a low pH liquid agent. While safe for the kitchen environment, it is an industrial chemical and should be washed off the skin if contact occurs during discharge. It is much easier to clean than the dry powder from an ABC extinguisher.
