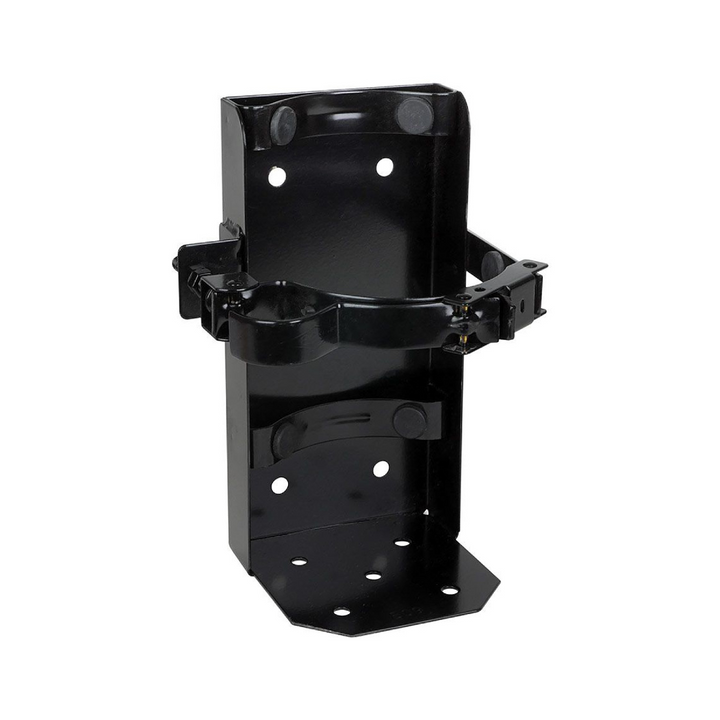

OEM Amerex 809 - 5.25" Fire Extinguisher Bracket - Black - Heavy Duty - 12932

The Amerex 809 is a professional-grade, heavy-duty mounting solution specifically engineered for fire extinguishers with a 5.25-inch cylinder diameter. As extinguishers increase in size and agent capacity, the forces acting upon their mounting hardware during transit grow exponentially. The Amerex 809 is designed to meet this challenge, providing an ultra-secure, fail-safe cradle for 10 lb and specialized 5 lb units that require more robust retention than a standard wall hook can provide.

Constructed from high-tensile steel and finished with an industrial-grade powder coating, the 809 bracket is built for the most demanding "Dynamic" environments. Whether it is bolted to the vibrating bulkhead of a diesel-powered service truck, the frame of a heavy-duty excavator, or the wall of a high-traffic manufacturing facility, this bracket ensures your life-safety equipment remains exactly where it belongs. With its high-tension metal strap and quick-release latch, the 809 provides the perfect balance between immovable security and instantaneous emergency access.

The Engineering of Vibration Resistance: Protecting Your Investment

• Agent Settlement Prevention: In heavy machinery, constant low-frequency vibration can cause the dry chemical agent inside an extinguisher to "pack" or "cake" at the bottom. The 809's rigid cradle helps stabilize the cylinder, reducing the internal movement of the agent and ensuring a smooth discharge when the lever is pulled.
• Structural Integrity: Standard "butterfly" or "quick-clip" brackets are prone to metal fatigue when subjected to the swaying of a moving vehicle. The 809 utilizes a reinforced baseplate and a heavy-gauge strap to absorb these forces without bending or snapping.
• The 5.25-Inch Precision Standard: Mounting a 5.25-inch cylinder in a generic or undersized bracket creates "point-loading" stress on the cylinder wall. The Amerex 809 is precision-shaped to distribute the clamping pressure evenly around the circumference of the tank, preventing paint scuffing and structural deformation.

The Amerex 809 Advantage: Industrial OEM Standards

• Oven-Cured Polyester Finish: The bracket is treated with a high-gloss, corrosion-resistant black powder coat. This finish is specifically formulated to withstand the "salt spray" environments of coastal shipping docks and the UV exposure of open-cab construction equipment.
• Safety-First Quick Release: The latch mechanism requires a deliberate, high-tension "pull" to open. This prevents the bracket from accidentally vibrating open—a common and dangerous failure in low-quality hardware—while still allowing a panicked operator to retrieve the unit in seconds.
• Versatile Hole Pattern: The mounting spine features a universal drill pattern, making it compatible with existing mounting holes in many commercial vehicle cabs and industrial safety stations.
• Hardware Protection: The bracket is designed to hold the extinguisher away from the mounting surface slightly, providing air circulation that prevents moisture from being trapped against the cylinder wall, which is a leading cause of rust.

The Amerex 809 is the specified choice for environments where "Standard" mounting isn't enough:

• Heavy Construction Equipment: Ideal for large loaders, graders, and mining trucks where the machinery is in constant motion.
• Fleet Service Trucks: The standard for "Class 7 and 8" trucks that require high-capacity 10 lb extinguishers to meet DOT hazardous material transport codes.
• Manufacturing Facilities: Used near heavy stamping or CNC machinery where floor vibrations are a constant factor.
• Maritime & Port Operations: Rugged enough for use on forklifts and reach-stackers in high-humidity port environments.
• Agricultural Machinery: Provides secure mounting for harvesters and tractors where dust and rough terrain are the norms.

To maintain NFPA 10 and OSHA compliance, ensure your Amerex 809 is installed according to these industry standards:

• Bolt Selection: For vehicle mounting, use Grade 5 bolts with locking nuts and fender washers. Self-tapping screws are generally not recommended for the 809 due to the weight of the 5.25-inch cylinders.
• Orientation: While the 809 provides a secure 360-degree grip, vertical mounting is always preferred for dry chemical units to ensure the chemical remains fluidized near the siphon tube.
• Clearance: Ensure the quick-release latch has at least 4 inches of clear space to be pulled forward, allowing for a smooth, unobstructed exit of the extinguisher.
• Monthly Checks: During your 30-day fire inspection, manually check the tension of the 809 strap. If the extinguisher can be rotated within the bracket, the tension latch may need adjustment or the mounting bolts may need tightening.

How do I know if I have a 5.25-inch cylinder?
The easiest way is to use a flexible measuring tape to check the "circumference" (the distance around the tank). A 5.25-inch diameter cylinder will have a circumference of approximately 16.5 inches. If your tank is closer to 13.3 inches, you likely need the Amerex 807 (4.25") bracket.

Is this bracket suitable for "Halotron" extinguishers?
Yes, as long as the Halotron unit (such as the Amerex B394) has a 5.25-inch diameter. Because Halotron is an expensive gas, the secure mounting provided by the 809 is highly recommended to prevent accidental leaks caused by vibration.

Can I use this for wall mounting in my warehouse?
Absolutely. While the 809 is built for vehicles, many facility managers prefer it for wall mounting in high-traffic areas or near loading docks where a standard wall hook might be easily knocked or bumped.
