Amerex KP Fryer/Griddle 2XFG Nozzle, Single Item, OEM - 13729
Are you a fire protection company? Get wholesale pricing
Wholesale PricingRelated Documents

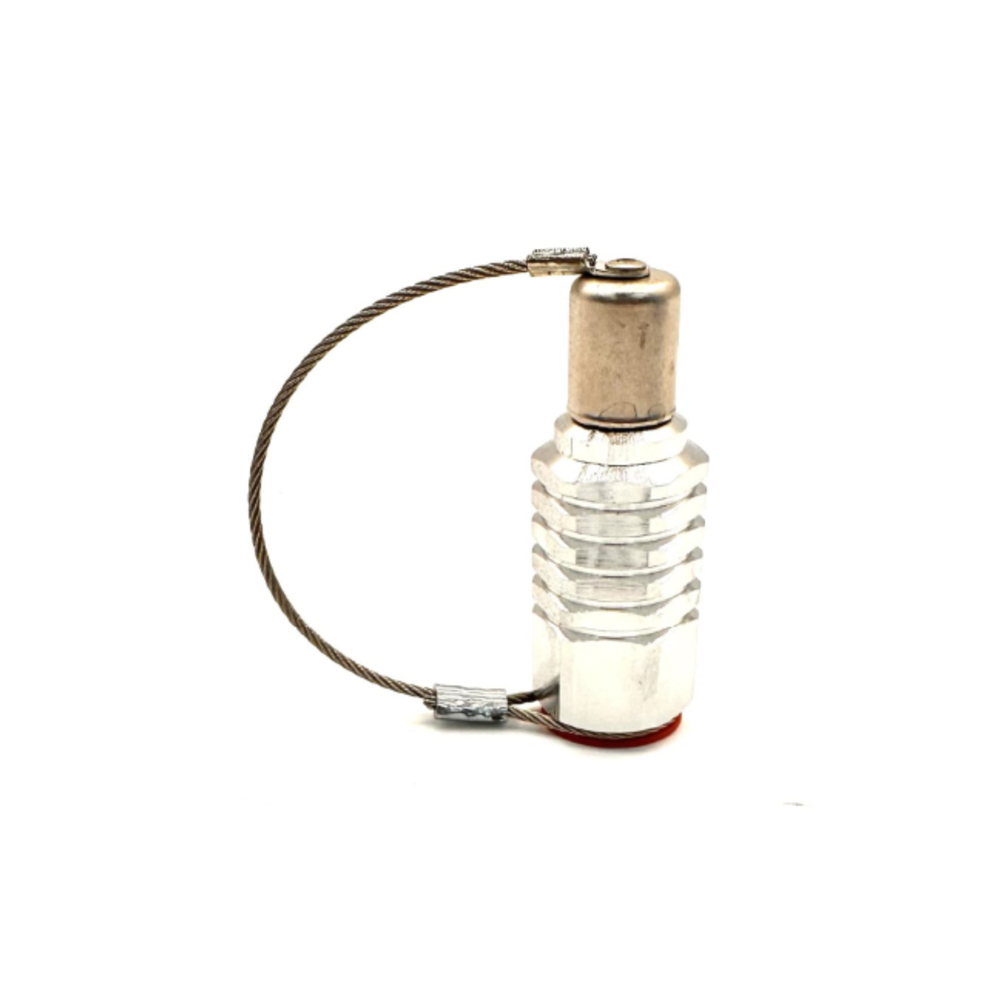

The Amerex KP 2xFG Nozzle (P/N 13729) is the fryer and griddle protection nozzle in the Amerex KP Restaurant Fire Suppression System, consuming 2 flow points per nozzle. It is identified by 5 tactile rings, which distinguishes it from all other KP nozzles by touch. Per the KP design manual, a single 13729 nozzle can protect a full-vat fryer area up to 624 square inches when installed at a height of 36 to 50 inches above the appliance surface and aimed at the center of the hazard. The standard cap (P/N 12334) is provided with every nozzle assembly; the high-temperature cap (P/N 12504) must be used where ambient temperatures at the nozzle location exceed 350°F. Compatible with swivel adapter P/N 16440. For full background on the Amerex KP nozzle family, refer to the 2xR Nozzle product page (P/N 14178).
| Feature | Details |
|---|---|
| Manufacturer | Amerex Corporation |
| Part Number | 13729 |
| Nozzle Designation | 2xFG (Fryer and Griddle) |
| Flow Points | 2 |
| Tactile Identification | 5 Rings |
| Thread Size | 3/8 Inch NPT |
| Application | Full-Vat Fryers and Griddles |
| Max Fryer Coverage Area | 624 Square Inches Per Nozzle |
| Installation Height | 36 to 50 Inches Above Appliance Surface |
| Standard Cap Included | P/N 12334 (Suitable for Locations Not Exceeding 350°F) |
| High-Temperature Cap | P/N 12504 (Required Where Ambient Temperature Exceeds 350°F) |
| Swivel Adapter (Optional) | P/N 16440 |
| System | Amerex KP Restaurant Fire Suppression System |
| Certifications | UL Listed (UL 300), NFPA 17A and 96 Compliant |
| Lead Product Page | 2xR Range/Griddle Nozzle P/N 14178 |
