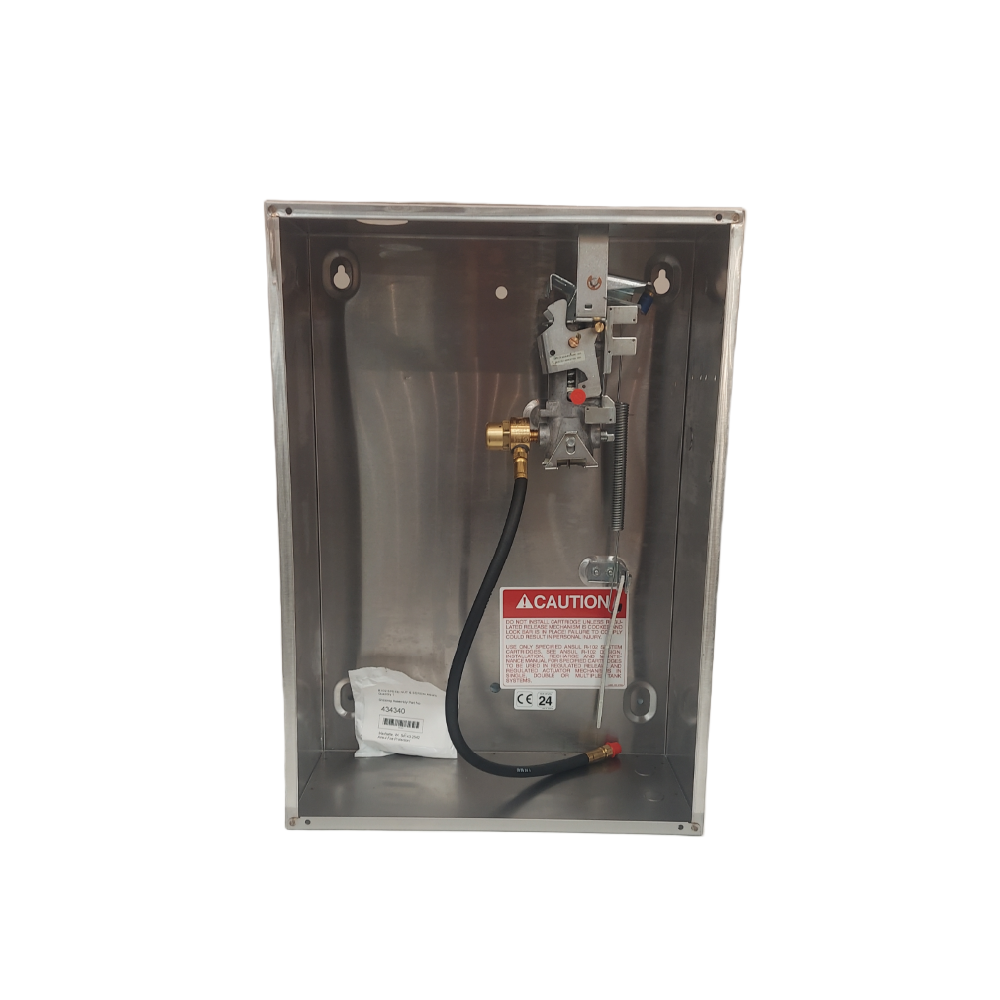

Ansul Automan Mechanical Reg. Release for R-102 - 429853
The Ansul Automan Mechanical Regulated Release (429853) is the sophisticated brain and primary command center of the Ansul R-102 restaurant fire suppression system. In a professional kitchen, where high-efficiency appliances and aerosolized grease create a volatile Class K fire environment, the Automan provides the critical mechanical-to-pneumatic interface required for total system actuation. This shipping assembly is a self-contained power plant that monitors thermal detection lines, processes manual overrides, and executes a precision-regulated discharge of the ANSULEX low pH liquid agent.
Engineered for zero-failure reliability, the 429853 operates on a stored-energy principle, requiring no external electricity or battery backup. It is housed in a rugged, industrial-grade stainless steel enclosure designed to survive the corrosive, high-humidity atmosphere of a commercial exhaust hood. For fire protection stakeholders, the Automan 429853 is the definitive choice for facilities that prioritize a fail-safe fire defense, ensuring that kinetic suppression occurs with absolute precision even during a total building power failure.
110 PSI Deadset Regulation
The hallmark of the 429853 is its factory-installed, deadset pressure regulator. Nitrogen or CO2 from the activation cartridge enters the manifold at high pressure; the Automan regulator steps this down to a consistent 110 PSI (7.6 bar). This deadset regulation ensures the agent is delivered to the nozzles with a laminar flow, creating a fine mist rather than a jet that could splash burning oil.
Kinetic Stored Energy
The release mechanism utilizes a high-tension internal spring held in equilibrium by the mechanical detection line. The Automan serves as the anchor for this tension. When a link melts, the kinetic stored energy of the spring drives the firing pin into the gas cartridge with enough force to ensure a total puncture of the diaphragm.
Dual-Stage Pressure Relief
For safety redundancy, the assembly features an external 180 PSI relief valve. This prevents the over-pressurization of the agent tanks and discharge piping in the event of a regulator malfunction, ensuring the structural integrity of the entire suppression network during a firing cycle.
High-Flow Control Head Capacity
Depending on the gas cartridge selected, a single Automan can actuate up to three 3.0-gallon agent tanks simultaneously. This allows for a modular system design where one brain protects an extensive cook line, reducing total maintenance overhead.
Service Lock Bar Logic
During semi-annual maintenance, technicians utilize the Ansul lock bar (P/N 14985) to mechanically isolate the firing mechanism. The 429853 is designed with specific mechanical clearances to allow for live-line testing of the manual pull stations and detection links without risking an accidental discharge, drastically reducing labor time for NFPA 17A compliance testing.
Visual Status Verification
The stainless steel enclosure features a specific viewing port that allows facility managers to verify that the system is in the Armed position at a glance. This transparency is vital for routine safety walkthroughs and helps prevent the kitchen from operating with an un-armed fire system.
- Full-Scale Commercial Kitchens: Managing multi-tank suppression for deep-fat fryers and ranges in high-volume restaurants.
- Institutional Dining (Hospitals/Stadiums): Providing a robust, power-independent safety system for large-scale public facilities.
- Food Trucks and Mobile Catering: A vibration-resistant mechanical trigger that remains reliable in environments where electrical connections are unstable.
- Industrial Plenums and Ductwork: Serving as the primary trigger for fires that migrate into the exhaust system.
- Retrofit Modernization: Replacing aged or non-compliant units during 12-year overhauls to restore UL 300 performance.
| Feature | Details |
|---|---|
| Manufacturer | Ansul (A Johnson Controls Brand) |
| Part Number | 429853 |
| Model Type | Automan Mechanical Regulated Release |
| Regulator Setting | 110 PSI (7.6 bar) |
| Relief Valve Setting | 180 PSI (12.4 bar) |
| Max Tank Capacity | Up to Three (3) 3.0-Gallon Tanks |
| Operating Temperature | 32°F to 130°F (0°C to 54°C) |
| Compliance | UL 300, ULC Listed, CE Approved, NFPA 17A |
Thermal Environment Management
The Automan must be installed where temperatures remain between 32°F and 130°F. Excessive heat can lead to mechanical creep in the regulator seals, potentially affecting discharge pressure.
Conduit and Knockout Integrity
Technicians must ensure all conduit connections are grease-tight. Aerosolized grease can penetrate the enclosure, gumming up mechanical linkages and slowing the firing pin response time.
The Six-Month Tension Audit
Every six months, technicians must verify the tension on the detection cable. The Automan's internal tensioning mechanism must be adjusted to ensure the drop force remains within factory tolerances.
Regulator Deadset Verification
During 12-year hydrostatic testing, the regulator itself should be verified for accuracy. A regulator that drifts from its 110 PSI setting can cause nozzles to deliver an improper spray pattern, leading to re-flash events.
Does the 429853 include the nitrogen cartridge?
No. The 429853 is the shipping assembly (enclosure, regulator, and mechanical release). The nitrogen cartridge actuation source such as the LT-20-R must be ordered separately based on your specific system design.
Can I use the 429853 for an Amerex or Buckeye system?
No. The Automan is specifically listed for Ansul R-102 series and PIRANHA systems. Mixing manufacturers is a major fire code violation and can result in mechanical failure and legal liability.
What is the "Locked" vs "Armed" status?
Armed means the system is under tension and ready to fire. Locked refers to the state when a technician has installed the lock bar during a service visit to prevent the system from discharging while they work on the detection lines.
