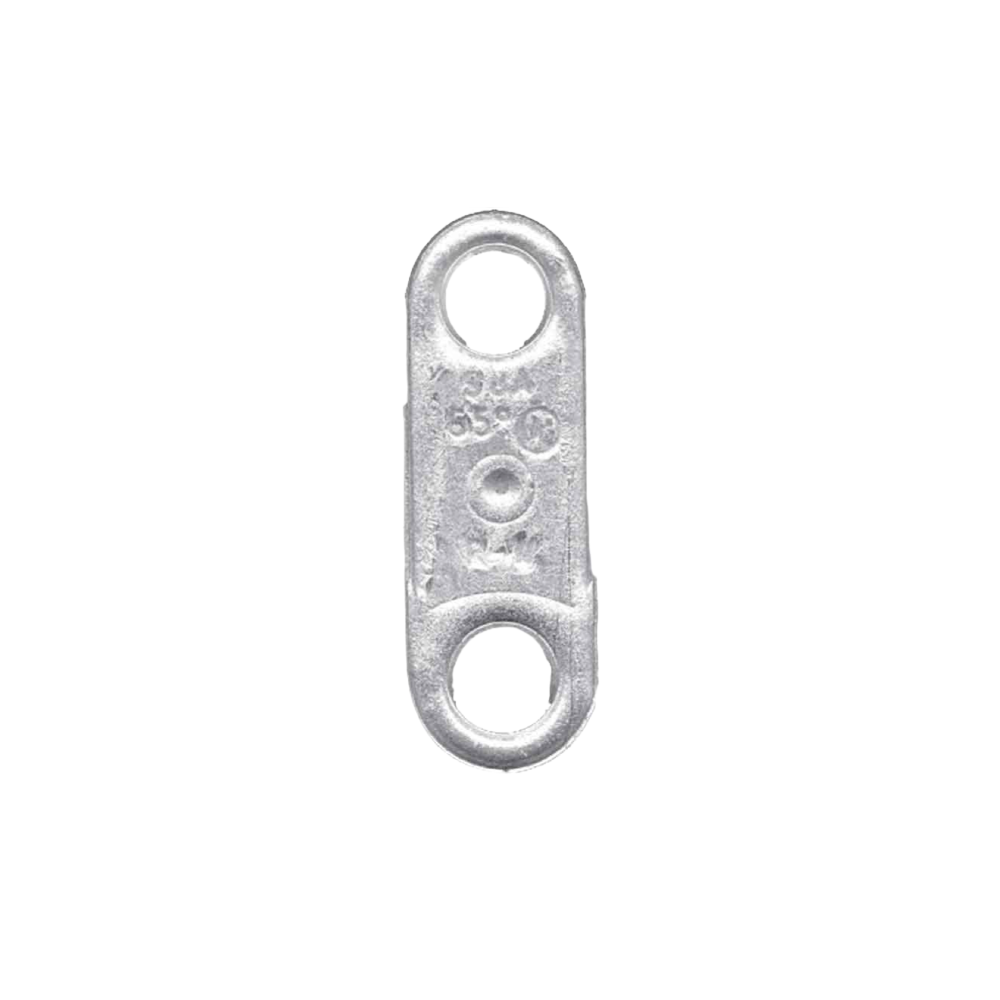

450° K Style UL Listed Fusible Link, Single Item - 439089

The 450° K-Style Fusible Link (439089) is a precision-engineered thermal detection component designed for the most extreme heat zones in a commercial kitchen. Within the architecture of a fire suppression system, the fusible link is the primary decision-maker. This K-Style link is calibrated to separate at a critical threshold of 450°F (232°C), making it the definitive choice for protecting high-output appliances like heavy-duty charbroilers and high-velocity ductwork where standard-temperature links would cause frequent nuisance trips.

Manufactured with a specialized eutectic alloy and high-tensile steel halves, the 439089 is designed to hold the constant tension of a detection cable for years without fatigue. When a grease fire occurs, the rising thermal column melts the internal alloy, causing the link to split. This drop in cable tension is transmitted instantly to the Automan release mechanism, triggering the discharge of the fire suppression agent. For safety directors, this 450-degree link is a strategic investment in accurate, fail-safe fire detection.

Eutectic Alloy Precision

The core of the 439089 is a eutectic metal alloy. Unlike standard metals that soften over a range, a eutectic alloy has a sharp, defined melting point. At exactly 450°F, the molecular bond transitions from solid to liquid. This ensures the system activates at a predictable, tested temperature, providing a reliable safety boundary for your property.

Tension Line Dynamics

The K-Style link is engineered to operate under a specific tension range. The 439089 is tested to resist cold flow, a phenomenon where lower-quality alloys slowly stretch over time under constant tension. By using an OEM Ansul link, you ensure the detection line remains taut, preventing slack-line failures that can disable a fire system.

Thermal Lag Mitigation

The thin-profile design is optimized for rapid thermal response. By minimizing the metal mass, the 439089 reduces thermal lag, the time it takes for the link to reach the surrounding air temperature. This millisecond-level response is critical in high-flashpoint grease fires where every second counts.

Compliance with NFPA 96 and 17A

NFPA requires that detection components be listed and labeled for their specific application. Using the 439089 ensures your high-heat cooking line remains in full compliance with UL 300 standards. Failure to use the correctly rated link can lead to accidental discharges and lost revenue.

Strategic Placement in High-Heat Manifolds

Modern kitchens use high-BTU appliances that generate massive radiant heat. The 450° rating is specifically designed for placement in the hot-zone directly above charbroiler grates. It provides protection without the risk of the system tripping during a standard high-volume dinner service.

UL Listing Continuity

Fire suppression systems are tested as a complete assembly. The 439089 is a UL-listed component of the Ansul R-102 and PIRANHA systems. Substituting a non-OEM link voids the UL listing and can lead to a red-tag from the local Authority Having Jurisdiction (AHJ).

• Heavy-Duty Charbroilers: Protecting open-flame cooking equipment that generates intense vertical thermal columns.
• Upright Broilers: Where temperatures near the exhaust vent frequently exceed 300°F during normal operation.
• Exhaust Duct Transitions: Serving as a secondary detection point within the grease duct to prevent fire from spreading into building vents.
• High-Volume Wok Ranges: Protecting specialty Asian cooking lines where flash-searing creates rapid temperature spikes.
• Industrial Food Fryers: Where massive oil reservoirs require high-temperature detection to avoid nuisance triggers from steam.

Mandatory Semi-Annual Replacement

Per NFPA 17A, fusible links in commercial kitchens must be replaced every 6 months. Even if the link looks clean, the structural integrity can be compromised by thermal cycling.

Cleaning and Degreasing

During service, the entire detection assembly must be thoroughly degreased. A link coated in heavy grease will have a higher thermal mass, potentially delaying its activation.

Proper Tensioning

After installation, use a tensioning tool to ensure the cable is cocked to the manufacturer's specified tension. An over-tensioned cable can cause premature link failure.

Service Tag Marking

Always write the installation date on the link or service tag. Fire Marshals check these dates specifically to ensure the replacement cycle is maintained.

What happens if I use a 450° link where a 360° link was specified?

Using a higher-temperature link is a code violation. It will delay the activation of the fire system, potentially allowing a blaze to grow before discharge pressure is reached. Always match the temperature to the system's as-built drawings.

Can I clean a link that has started to separate?

No. If you see any visible solder beading or if the metal plates have shifted, the link is failing. It must be replaced immediately to prevent a nuisance discharge.

Is this link compatible with Range Guard or Pyro-Chem systems?

No. The 439089 is specifically calibrated for Ansul K-style detection. Using mismatched brands violates the fire suppression UL listing and creates a significant safety liability.
