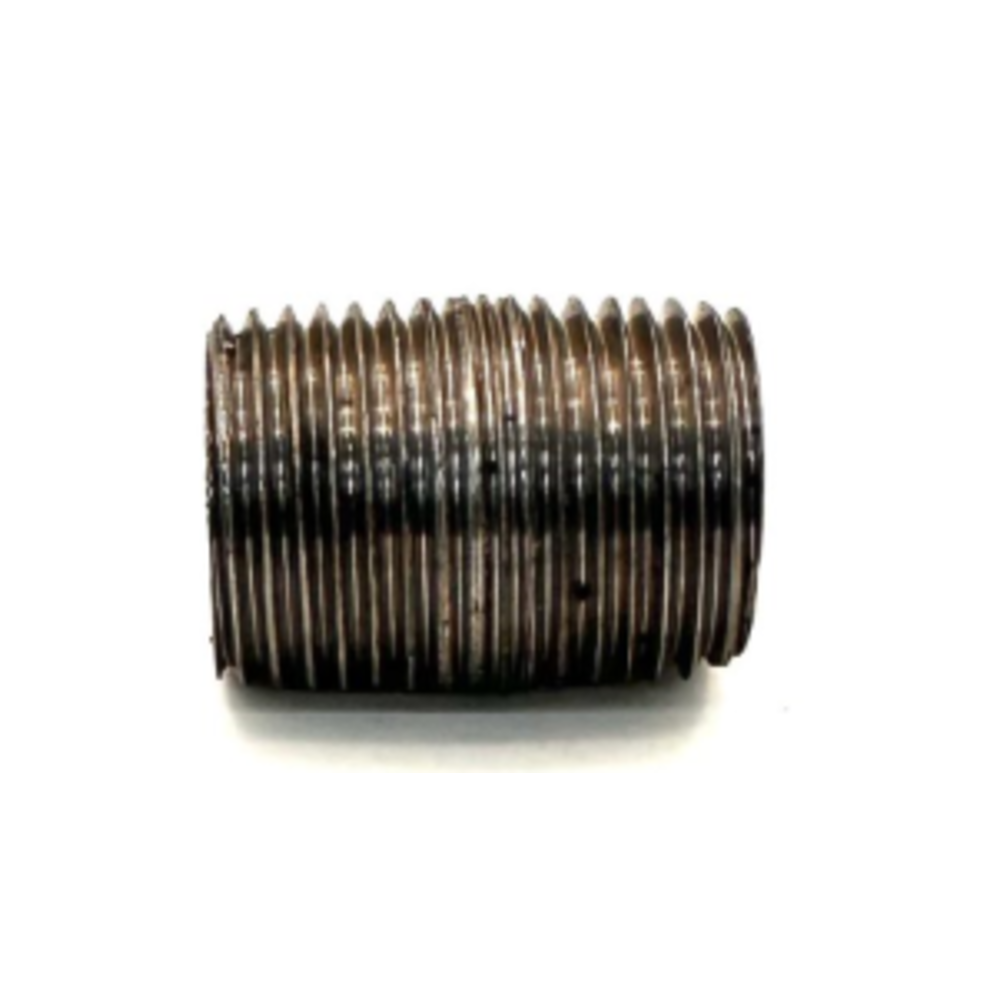

1/2" Close Nipple Black

The 1/2" x 3-1/2" Black Pipe Nipple is a specialized connector designed for high-pressure industrial piping. While standard fittings often fail under the mechanical stress of an active manufacturing floor, this nipple is manufactured from high-strength carbon steel. This provides the necessary rigidity for natural gas piping and hydraulic fluid manifolds where a leak-free seal is a safety requirement.

The "Black" finish is a result of the black oxide scale formed during the manufacturing process. Unlike galvanized coatings, which are often restricted by local codes for fuel gas because of potential zinc flaking, this protective layer provides dry-environment corrosion resistance without the risk of internal debris. For mechanical contractors, the Schedule 40 wall thickness ensures the fitting can handle the high-torque loads required to achieve an airtight seal.

With a length of 3-1/2 inches, this nipple provides the perfect spacing for installing valves, gauges, and regulators without components interfering with each other. The carbon steel construction ensures the fitting stays strong under pressure changes and temperature shifts common in industrial settings.

How Pressure-Rated Threads Work

Interference Fit Sealing

Every nipple features male threads cut at a 1:16 taper ratio. As the nipple is threaded into a female component, the threads wedge together to form a mechanical, metal-to-metal seal. This is the foundation of pipefitting technical manuals for high-pressure systems. The tapered design creates a tight connection that gets stronger as you tighten it.

Burst-Pressure Safety Margin

With a 0.109-inch wall thickness, these Schedule 40 pipe fittings are rated for 150 PSI WOG (Water, Oil, Gas). This ensures a significant safety margin for fire sprinkler branch lines and compressed air headers. The thick walls can handle sudden pressure spikes without cracking or failing.

Vibration and Stress Resistance

A 3-1/2" extension in a pressure system introduces a specific point of potential leverage and vibration. These nipples are engineered to handle those forces. The carbon steel material flexes slightly under stress but returns to its original shape, preventing cracks and leaks over time.

Why Contractors Choose This Length

• Perfect Spacing for Equipment: The 3-1/2" length provides enough clearance to operate valve handles and install pressure gauges without parts bumping into each other.
• Code-Compliant for Gas: Black steel is approved for natural gas and propane lines. It does not have zinc coating that could flake off and block gas openings.
• Long-Term Durability: The black oxide finish protects against rust in dry environments like mechanical rooms and equipment closets.
• Easy to Install: The finish grips pipe wrenches well, allowing you to apply the torque needed for a gas-tight seal without the fitting slipping.

The 1/2" x 3-1/2" Black Pipe Nipple works well for many industrial and commercial piping jobs:

• Industrial Boilers: Used as the primary drop line for fuel gas from a main header to individual burner units.
• Dry-Pipe Sprinkler Systems: Connecting heads in attic or warehouse voids where temperature-stable carbon steel is required.
• Manifold Spacing: Providing the necessary clearance for industrial pressure gauges and shut-off valve handles in compact manifold builds.
• Natural Gas Lines: Running gas from main pipes to equipment in commercial kitchens and industrial facilities.
• Compressed Air Systems: Building air distribution headers where high-pressure tools need reliable connections.
• Hydraulic Equipment: Connecting pumps and control valves in machinery where strong, leak-proof fittings are critical.

To get a leak-free installation and meet safety standards, follow these professional steps:

• Use Gas-Rated Sealant: For gas lines, always use yellow PTFE tape or pipe dope rated for hydrocarbons. Never use regular tape on gas fittings as it can break down.
• Tighten Properly: Start by hand-tightening the fitting. Then use a pipe wrench for 1.5 to 2.5 additional turns. Over-tightening can crack the fitting or damage threads.
• Inspect Threads First: Before installation, check for damaged or rough threads. Bad threads are the main cause of slow leaks in gas and air systems.
• Test Every Connection: Use soap solution or a leak detector on every joint before using the system. This ensures a complete gas-tight seal.
• Support Long Runs: For horizontal pipe runs, add support brackets every 6 to 8 feet to prevent sagging and stress on connections.
• Follow Local Codes: Always check local building codes for specific requirements in your area before starting any gas or fire protection work.

Why use black steel instead of galvanized for gas lines?
Zinc from galvanized coatings can react with gas and flake off. These flakes can block burner parts and cause equipment failure. Black steel is the safe, code-approved choice for all gas lines.

What does Schedule 40 mean?
Schedule 40 refers to the wall thickness of the pipe. It is the standard for most residential and commercial gas and water systems. Schedule 80 is thicker but usually not needed unless specified by engineering plans.

Can I use this for drinking water?
No. Uncoated black steel will rust when exposed to water. For drinking water systems, use stainless steel or copper pipes to prevent rust and keep water clean and safe.

How do I know if my installation is leak-free?
Apply soap solution to all connections and pressurize the system. If you see bubbles forming, you have a leak. Tighten the connection and test again until no bubbles appear.
