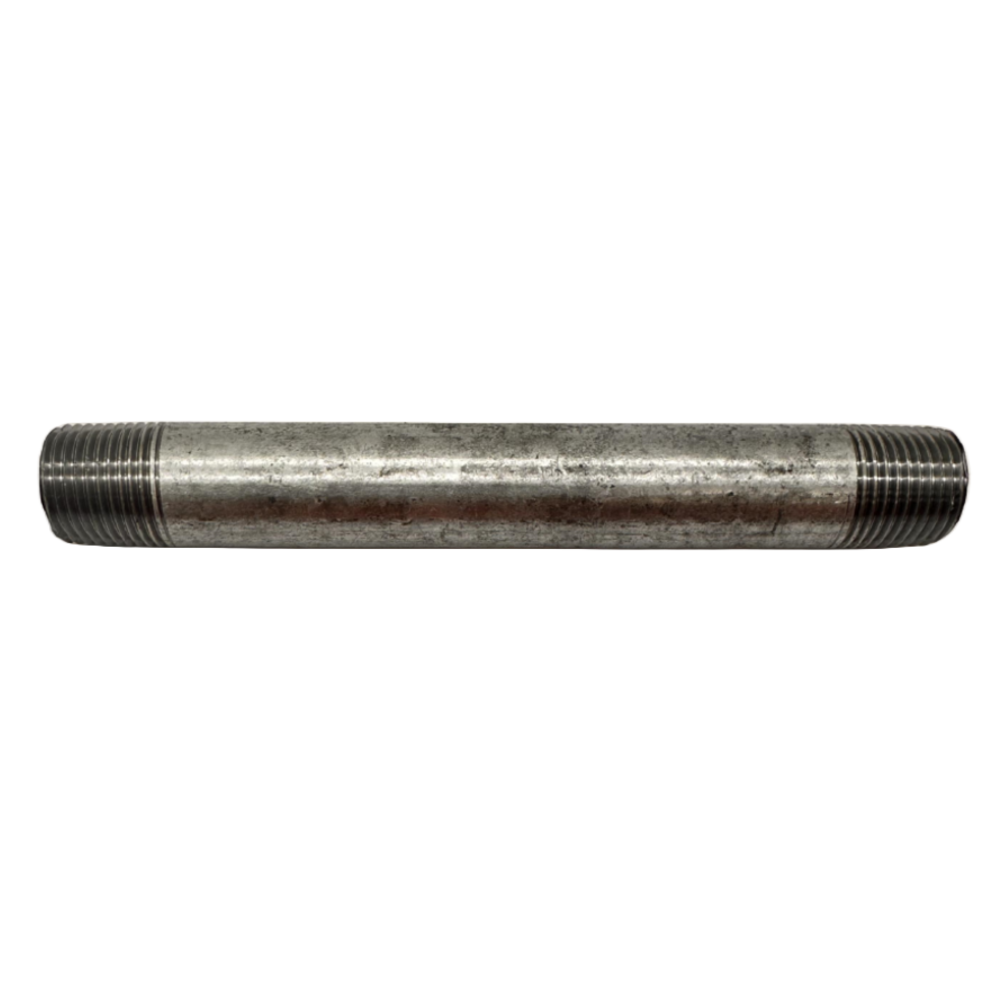

1/2" x 6" Nipple Galvanized

The 1/2" x 6" Galvanized Pipe Nipple is a high-performance industrial fitting engineered to bridge the gap between female-threaded components in pressurized water and irrigation systems. Unlike standard black steel, this nipple is subjected to a hot-dip galvanizing process, providing a robust zinc barrier that prevents the internal rust and external corrosion common in high-humidity environments. With a pipe size of 1/2 inch and a 6-inch total length, this fitting serves as a versatile long-reach extension for clearing wall thicknesses or building manifold drops.

Manufactured to Schedule 40 specifications, this nipple provides the structural integrity required for municipal water lines and commercial pumping stations. The uniform 1/2" NPT threads on both ends ensure seamless integration with existing plumbing infrastructure, while the protective zinc coating makes it the top choice for any application where water quality and fitting longevity are the primary concerns.

The 6-inch length is ideal for reaching through walls, connecting equipment at different heights, and creating clearance between valves and fixtures. The galvanized finish protects against rust in wet environments like irrigation systems, outdoor plumbing, and humid mechanical rooms.

Understanding Galvanized Protection

NPT Thread Design

This nipple features male threads cut at a 1:16 taper ratio. As the nipple is threaded into a female fitting (like a gate valve), the tapered threads wedge together to form a metal-to-metal mechanical seal. This interference fit allows the system to handle significant internal pressures (up to 150 PSI WOG) without the joint breaking or leaking. The precision threads ensure reliable sealing in water distribution systems.

Sacrificial Zinc Protection

Through the hot-dip process (ASTM A153), a thick layer of zinc is molecularly bonded to the carbon steel. In the presence of moisture, the zinc acts as a sacrificial layer, corroding in place of the steel. This ensures the structural integrity of the pipe remains intact even if the exterior coating is scratched. The zinc protection significantly extends the life of the fitting in outdoor and wet applications.

Schedule 40 Strength

As a Schedule 40 pipe fitting, this 1/2" nipple features a nominal wall thickness of 0.109 inches. This provides a robust safety margin for residential main lines and commercial irrigation headers, ensuring the fitting can handle the water hammer and sudden pressure spikes common in automated valve systems. The thick walls ensure reliable performance under normal operating conditions.

Why Professionals Choose Galvanized Nipples

• Extended Reach for Walls: A 6-inch length is the standard mid-reach extension for routing water lines through structural walls. It provides enough length to clear the framing while leaving sufficient thread exposed for attaching shut-off valves and other fittings.
• Prevents Rust in Wet Areas: Cold water lines in unconditioned spaces often develop condensation. While black steel would experience rust and pitting, the galvanized finish remains rust-free, preventing unsightly rust stains on facility floors and maintaining system cleanliness.
• Easy Installation: The hot-dip finish provides a high-friction surface that allows pipe wrenches to grip effectively during installation. This ensures that the high-torque tightening required for a water-tight seal can be applied without the wrench slipping.
• Long Service Life: In typical water service, galvanized fittings can last 20 to 50 years depending on water chemistry and environmental conditions.

The 1/2" x 6" Galvanized Pipe Nipple works well for many water system applications:

• Drinking Water Distribution: The primary choice for extending water lines from a main header to individual fixtures in commercial buildings.
• Commercial Irrigation Systems: Used to connect zone valves to lateral lines, providing a corrosion-resistant riser that can withstand burial in moist soil or exposure in valve boxes.
• Outdoor Utility & Wash Stations: Routing water to exterior hose bibs, industrial washdown stations, and industrial cooling towers where the fitting is exposed to the elements.
• Equipment & Valve Manifolds: Used as a durable extension for mounting industrial pressure gauges, thermal expansion tanks, and bypass loops.
• Marine & Coastal Plumbing: Providing an additional layer of protection against salt-air corrosion for water lines in coastal facilities.
• Residential Plumbing: Connecting water heaters, pressure tanks, and main line components where rust prevention is important.

To maintain NFPA 13 compliance (where galvanized is used) and local plumbing codes, follow these professional protocols:

• Use Proper Sealant: For water and irrigation lines, always use high-quality PTFE tape (standard white or full density pink) or a non-toxic pipe dope rated for drinking water.
• Proper Tightening: To achieve an NPT seal, start with hand-tight, then use a pipe wrench to achieve an additional 1.5 to 2.5 full turns. Under-tightening is the primary cause of slow leaks.
• Prevent Galvanic Corrosion: Never connect galvanized steel nipples directly to copper pipe or brass valves without a special joining fitting. Different metals touching causes rapid pipe corrosion through electrolysis.
• Check Inside Before Installing: Before threading, inspect the internal opening for any galvanized buildup that could restrict water flow. High-quality nipples should have a clear, unobstructed internal diameter.
• Support Long Runs: For the 6-inch length, ensure both connected fittings are properly supported to prevent sagging and stress on the threads.
• Follow Local Codes: Always check local plumbing codes for specific requirements about galvanized pipe use in your area.

Can I use galvanized pipe for my natural gas line?
Generally, no. Most modern gas safety codes (NFPA 54) prohibit the use of galvanized pipe for gas because the zinc coating can flake off over time and clog gas regulators. Always use black steel for fuel gas applications.

Is this safe for drinking water?
Yes, galvanized steel has been the industry standard for drinking water systems for decades. However, ensure your local codes have not transitioned to PEX or copper for new installations in your area.

What is the difference between hot-dip and electro-galvanized?
Hot-dip galvanizing (ASTM A153) involves submerging the steel in molten zinc, creating a much thicker bond. Electro-galvanized is a thinner, plated finish not suitable for pressurized water systems. Always use hot-dip for plumbing applications.

Will the galvanized coating wear off over time?
In normal water service, the zinc coating lasts many years. However, very acidic water or extremely harsh conditions can accelerate zinc loss. Regular inspections help catch any coating issues before they become problems. Most galvanized fittings provide 20 to 50 years of reliable service.
