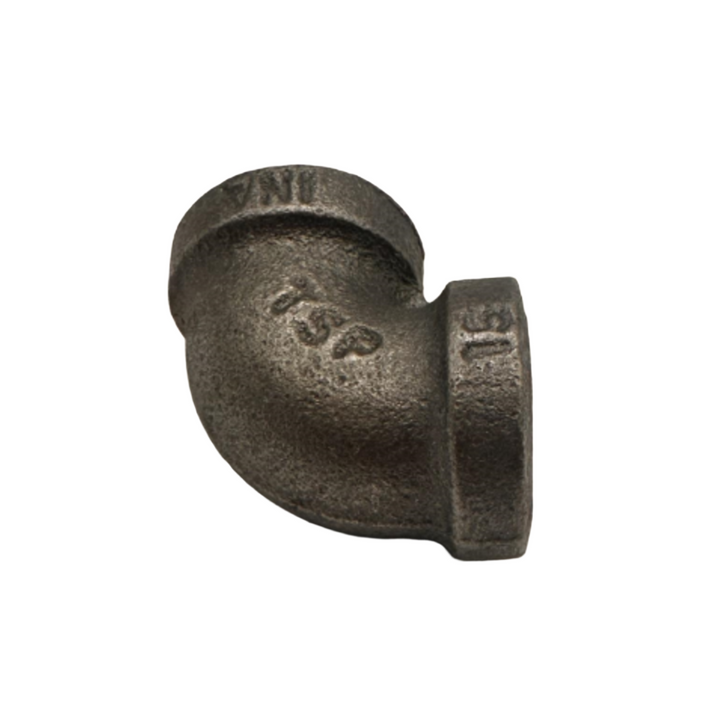

1/4" 90 Deg. Elbow, Black Pipe

The 1/4" 90° Black Pipe Elbow is a foundational industrial fitting engineered to provide a precise right-angle direction change in small-diameter piping systems. Unlike standard hardware-grade fittings, this elbow is manufactured from high-strength carbon steel, providing the structural rigidity required for pneumatic control lines, gas pilot assemblies, and hydraulic sensor manifolds.

The "Black" designation refers to the protective black oxide scale formed during the manufacturing process, which provides a layer of dry-environment corrosion resistance. This makes it the industry standard for natural gas piping, where galvanized coatings are often prohibited due to the risk of zinc flaking that can clog sensitive downstream openings. Designed to meet Schedule 40 specifications, this elbow is a reliable component for contractors who demand leak-free performance in demanding industrial and commercial environments.

The 1/4" size is ideal for small control lines, pilot gas systems, and instrument connections where space is limited and precision is critical. The 90-degree angle allows you to make clean right-angle turns around obstacles and equipment in tight mechanical rooms.

Understanding Thread Sealing Technology

NPT Tapered Thread Design

This elbow features female threads cut at a 1:16 taper. As a male-threaded nipple or pipe is screwed into the elbow, the tapered threads wedge together to form a metal-to-metal mechanical seal. This interference fit is what allows the system to handle significant internal pressures, up to 300 PSI static, without the joint breaking or leaking. The taper design means the seal gets tighter as you properly tighten the fitting.

Smooth Flow Design

In a 90-degree turn, the fluid or gas undergoes a sudden change in direction. The internal casting of this 1/4" elbow is smoothed to minimize flow disruption. This reduces the pressure drop (friction loss) across the fitting, which is critical for sensitive pneumatic instruments and gas regulators that require precise delivery pressures. Better flow means more consistent system performance.

Superior Material Strength

Manufactured from ASTM-grade carbon steel, this elbow offers superior tensile and yield strength compared to brass or plastic alternatives. This is vital in industrial settings where the piping may be subjected to mechanical vibration from pumps or temperature changes. The carbon steel construction ensures long-term reliability without cracking or weakening over time.

Why Technicians Choose This Fitting

• Space-Saving Design: In modern boiler rooms and chemical injection systems, space is often the primary constraint. The 1/4" elbow allows for close-quarter routing of sensing lines and pilot tubes, enabling complex control setups in a fraction of the space.
• Gas System Compatible: Black steel is chemically compatible with natural gas and propane including the smell chemicals added for safety. The absence of a zinc coating ensures that no internal pipe scale can flake off and clog small gas openings, thermocouple ports, or burner pilots.
• Easy to Install: The black oxide finish provides a high-friction surface that grips pipe wrenches well. This allows for the high-torque installation required to achieve a gas-tight seal without slipping.
• Code Approved: Meets NFPA 54 and local building codes for gas and pneumatic systems when installed according to manufacturer specifications.

The 1/4" 90° Black Pipe Elbow works well for many industrial and commercial applications:

• Natural Gas Pilot Lines: The primary choice for routing gas from a main regulator to the pilot assembly on industrial boilers and commercial water heaters.
• Pneumatic Control Systems: Used in manufacturing facilities to route high-pressure air (90 to 150 PSI) to actuators, sensors, and air-driven assembly tools.
• Fire Suppression Sensing Lines: Employed in specialized fire suppression systems to route pressure-sensing tubing that triggers the release of clean agents or CO2.
• Pressure Gauge Mounting: Providing a 90-degree orientation for industrial pressure gauges and sensors on steam headers for easier visual monitoring in industrial plants.
• HVAC Control Lines: Routing control air and sensing lines in commercial heating and cooling systems.
• Chemical Injection Systems: Building precise metering manifolds for water treatment and chemical dosing applications.

To ensure a leak-free installation and maintain NFPA 54 compliance, follow these professional protocols:

• Use Proper Sealant: For gas lines, always use yellow PTFE tape or pipe dope rated specifically for hydrocarbons. Regular sealants are not safe for gas applications.
• Tighten Carefully: Because 1/4" threads are small, they can strip easily. The industry standard is hand-tight plus 1.5 to 2.5 full turns. Always use a backup wrench on the adjacent pipe fitting to prevent stressing other joints in the assembly.
• Prevent Different Metal Contact: Never connect black steel elbows directly to copper or brass without a special joining fitting. Different metals touching can cause rapid rust and pipe failure.
• Test Every Joint: Every joint must be pressure tested with soap solution or a digital leak detector before you use the system. This ensures a complete gas-tight seal.
• Support Connected Pipes: Make sure connected pipes are properly supported to prevent weight and stress on the small elbow fitting.
• Follow Local Codes: Always check local building codes for specific requirements in your area before starting any gas or pneumatic installation work.

What does WOG mean in the pressure rating?
WOG stands for Water, Oil, Gas. A rating of 150 PSI WOG means the fitting is safe for use with water, oil, or gas at pressures up to 150 PSI. The 300 PSI static rating applies when the system is not flowing.

Can I use this elbow for compressed air lines?
Yes. This elbow is commonly used for compressed air systems up to 150 PSI. Make sure to use proper thread sealant and test all connections for leaks before putting the system into service.

Why is the black finish better than galvanized for gas?
Galvanized coating contains zinc that can react with gas chemicals and flake off inside the pipe. These flakes can block small openings in gas equipment. Black steel is chemically stable with natural gas and propane.

How tight should I make the connection?
Start by hand-tightening until snug. Then use a wrench for 1.5 to 2.5 additional full turns. If you feel strong resistance before reaching this point, stop to avoid stripping the threads. Always test for leaks and only tighten more if needed.
