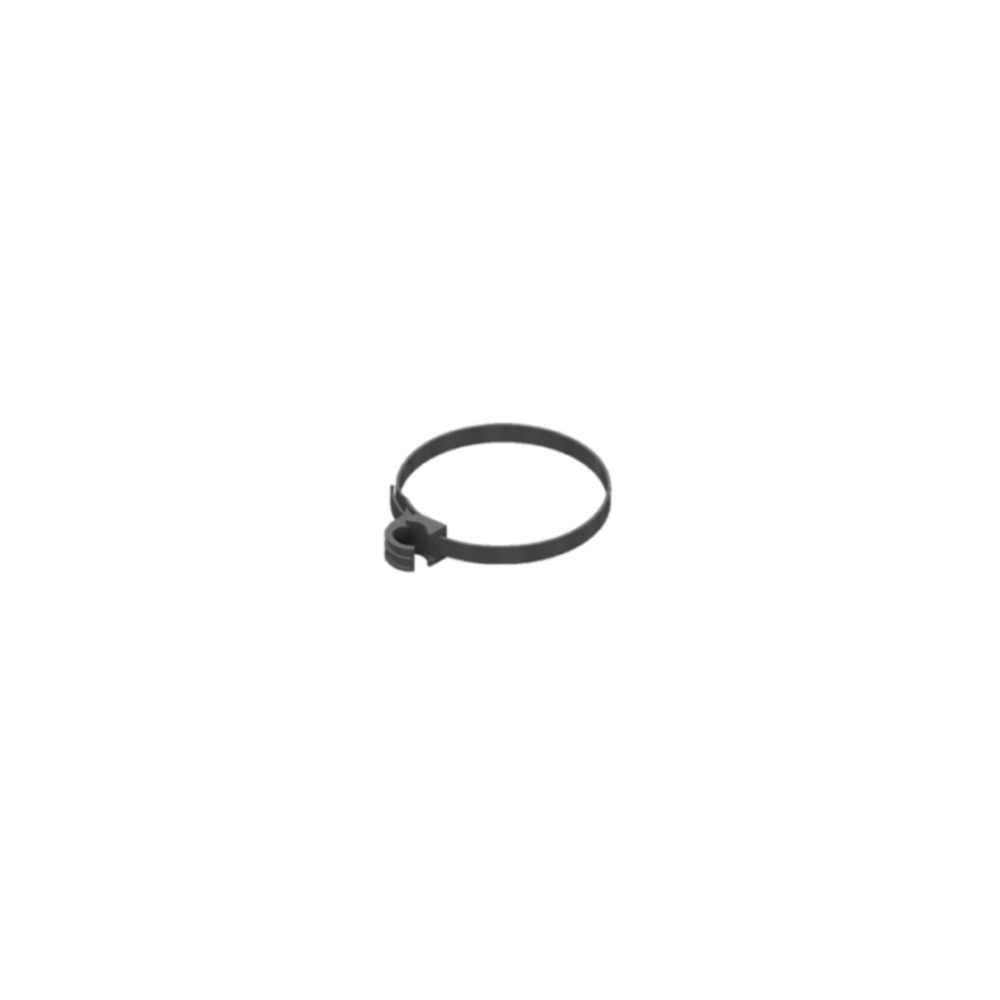

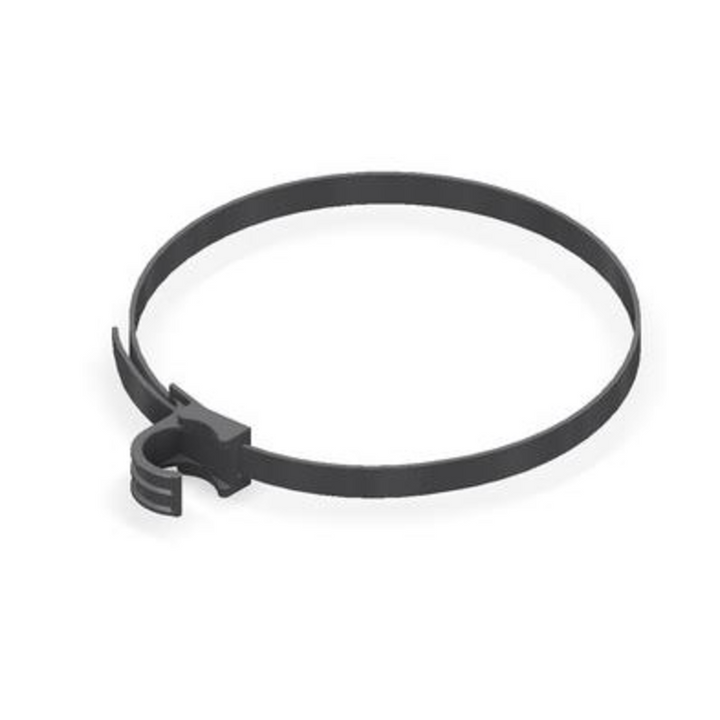

Amerex OEM Black Hose Strap and Clip 1/2in - 14778

The Amerex 1/2" Hose Strap and Clip (Part No. 14778) is a secondary retention component specifically engineered for large-capacity, 7-inch diameter cylinders (standard 20 lb units). In high-intensity industrial environments, the 14778 serves as the definitive solution for managing high-flow, 1/2-inch discharge hoses. Its primary function is to prevent hose-flop, which can lead to mechanical damage or snagging hazards during a rapid emergency response.

Constructed from a specialized UV-stabilized nylon polymer infused with carbon black to resist photo-degradation, this strap is well-suited for outdoor fuel islands and marine docks. Unlike elastic retainers, the 14778 utilizes a ratcheting permanent locking mechanism that ensures the strap remains at a fixed tension, even under the constant harmonics of heavy construction equipment or semi-trucks. This eliminates vibration-induced abrasion between the hose and the cylinder shell, preserving the anti-corrosive finish and ensuring the asset remains in a factory-rated ready-to-actuate state.

The 14778 is specifically sized for 7-inch diameter cylinders found on standard 20 lb extinguisher units. It must not be used on smaller 5-inch or 6-inch cylinders, as an improperly fitted strap will result in a loose hose and a failed inspection. The strap must be positioned to hold the 1/2-inch discharge hose flush against the cylinder body without kinking or pinching the hose jacket.

Once the ratcheting head is fully seated and locked, the excess tail must be trimmed with a flush-cut tool. Leaving a sharp stub is a significant safety hazard that can cause lacerations to an operator's hands during the high-stress environment of a fire emergency. During each annual extinguisher inspection, the strap should be checked for brittleness, UV discoloration despite the carbon black treatment, or any signs of cracking. A degraded strap must be replaced to maintain NFPA 10 compliance and ensure the hose remains securely retained.

Can I use the 14778 on a 10 lb Amerex extinguisher?

No. The 14778 is specifically sized for the 7-inch diameter cylinders of 20 lb units. For the smaller 5-inch or 6-inch cylinders found on 5 lb and 10 lb units, the diameter will be too small to achieve a secure, code-compliant fit. Attempting to use this strap on a smaller unit will result in a loose hose and a failed inspection.

Why is the 14778 strap black instead of red to match the cylinder?

The industrial black color is a result of high carbon black concentrations, which provide the necessary UV-stability for outdoor assets. Red plastics typically fade and become brittle much faster under direct sunlight; the black nylon ensures the strap maintains its tensile integrity over a decade-long service cycle.

Is a specialized tool required for the flush-cut trimming?

Yes, for safety. After the ratcheting head is seated, the excess tail must be trimmed with a flush-cut tool. Leaving a sharp stub is a significant safety hazard that can cause lacerations to an operator's hands during the high-stress environment of a fire emergency.
