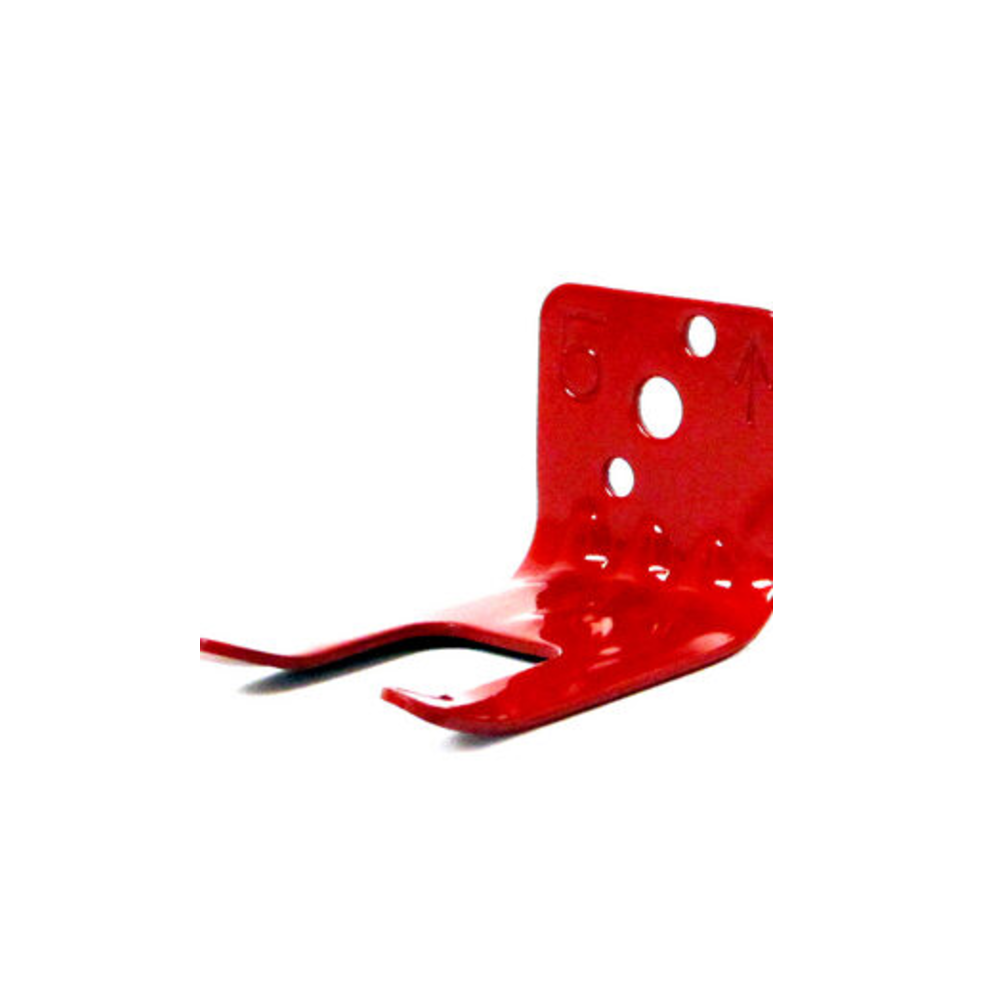

Amerex OEM Fork Style Wall Hook for 5LB Extinguishers 01521

The Amerex 01521 is a fork-style wall hanger for 5-lb fire extinguishers with metal valve body slots — providing a secure, easy-to-install mounting solution that keeps the extinguisher accessible and compliant with NFPA 10 placement requirements. The red powder-coated steel construction meets UL salt spray standards for corrosion resistance, making the 01521 durable in both commercial and light industrial environments where moisture, humidity, or chemical vapors might degrade inferior mounting hardware.

The fork-style design engages directly with the slots on the metal valve body of compatible Amerex 5-lb extinguishers — unlike strap-style brackets that encircle the cylinder body, the fork hook allows the extinguisher to be lifted straight up and off the wall mount for immediate emergency access with no latches, straps, or secondary release mechanisms to slow the operator. This one-motion removal is a critical NFPA 10 accessibility requirement — the extinguisher must be immediately usable without tools or multiple steps to remove from its mounting.

The 01521 is listed in the Amerex fire extinguisher brackets catalog as the OEM fork hook for 5-lb units. It is one of the most widely used Amerex extinguisher brackets for commercial office, retail, and light industrial environments where the 5-lb ABC dry chemical extinguisher is the standard first-response unit. For fire extinguisher hangers in vehicle, marine, or outdoor applications, the amerex bracket product line includes additional mounting variants. The 5lb fire extinguisher bracket format of the 01521 is also compatible with the 5lb abc fire extinguisher with bracket configurations specified in many commercial fire safety plans.

Mounting Height

Per NFPA 10, the top of the fire extinguisher must be no more than 5 feet above the floor for extinguishers weighing 40 lb or less. The 01521 bracket must be installed at a height that positions the top of the mounted 5-lb extinguisher at or below this limit. Mark the bracket mounting hole location using the extinguisher in hand before drilling to verify the final hanging height is compliant.

Wall Substrate

Anchor the 01521 to a wall stud, masonry, or other structural substrate capable of supporting the extinguisher weight. In drywall-only locations, use appropriate wall anchors rated for at least 4x the extinguisher gross weight. A bracket that pulls from the wall under the weight of a 5-lb extinguisher is an immediate NFPA 10 deficiency and a liability risk.

Annual Inspection

During NFPA 10 annual inspection, verify the 01521 bracket is secure, shows no corrosion compromising structural integrity, and the extinguisher seats and removes freely. A tight or sticky fit that requires force to remove is an accessibility deficiency. Document bracket condition in the fire extinguisher inspection and maintenance tags record.

Is the 01521 compatible with 10-lb Amerex extinguishers?

No. The 01521 fork-style hanger is sized for 5-lb Amerex extinguishers with metal valve body slots. Amerex 10-lb and larger units use different bracket models from the Amerex fire extinguisher brackets catalog — the fork geometry and weight rating of the 01521 is specific to the 5-lb cylinder dimensions. Using the 01521 on a heavier extinguisher creates a structural risk.

Is the red powder coat color required by code?

The red color of the amerex bracket is conventional for fire extinguisher mounting hardware visibility but is not a specific NFPA 10 color requirement. The red finish does help fire wardens and occupants quickly identify extinguisher locations during an emergency. The UL salt spray rating is the functional specification that matters for durability.
