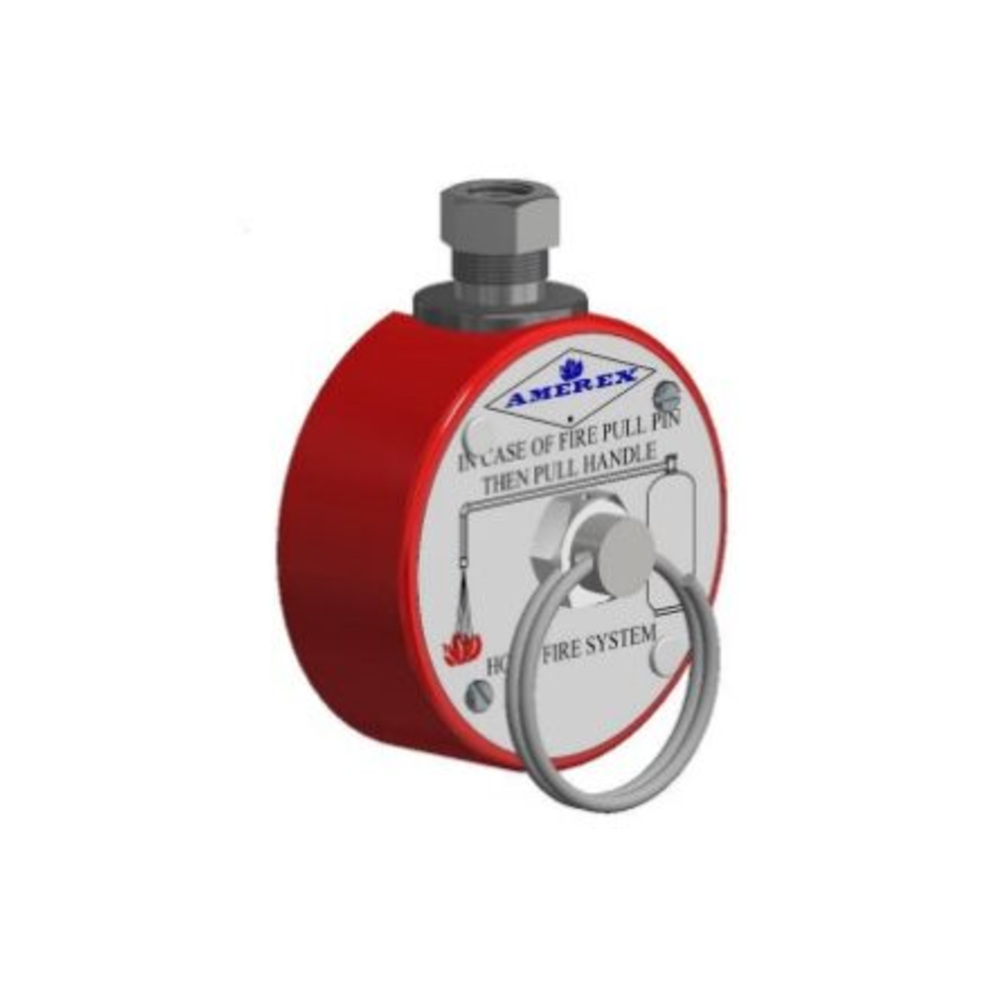

21481 AMEREX KP MANUAL PULL STATION - OEM

The Amerex 21481 is the OEM manual pull station for Amerex KP kitchen fire suppression systems. It delivers a reliable, dual-action manual activation method that allows kitchen staff or system operators to manually trigger a suppression discharge when a fire is detected before the automatic thermal detection line activates — or as an emergency override in any situation requiring immediate system discharge. The dual-action design requires two deliberate motions to activate, preventing accidental discharges from incidental contact in the busy commercial kitchen environment.

The 21481 is designed for compatibility with Amerex MRM and PRM release modules and supports both surface and recessed mounting configurations, giving installation contractors flexibility to position the pull station at the most accessible and visible location per NFPA 96 manual activation requirements. As a fire suppression pull station, the 21481 must be installed within reach of the kitchen exit path so that staff can activate the system while evacuating — a specific NFPA 96 placement requirement for manual pull station fire suppression system installations.

A fire suppression system pull station is a critical life-safety component that bridges the gap between automatic thermal detection and human-initiated emergency response. In commercial kitchen environments where high-temperature cooking creates conditions that can overwhelm a fire before the thermal link melts, the ability to manually trigger the suppression system via the 21481 fire manual pull station can be the difference between a controlled suppression event and a catastrophic kitchen fire. It is a standard component on any fire suppression supply order for a complete Amerex KP system installation and is included in the pull station guard accessory ecosystem for tamper protection in public areas.

Placement Requirements

Per NFPA 96, the manual pull station must be located in the path of egress from the kitchen — within reach of the exit door and visible to kitchen personnel. The pull station must be clearly identified with a fire suppression system pull station sign indicating its purpose. Mount the 21481 at a height accessible to all kitchen staff. Placement that requires reaching over hot equipment or through a hazardous area to activate violates NFPA 96 accessibility requirements.

Connection to MRM or PRM

Connect the 21481 to the Amerex MRM or PRM module per the Amerex KP system manual wiring diagram. The pull station cable must be routed in a way that prevents accidental disconnection or damage from kitchen equipment, heat, or foot traffic. Verify correct pull station cable tension and release mechanism function during system commissioning and at every semi-annual inspection.

Semi-Annual Inspection

Per NFPA 17A and NFPA 96, verify the 21481 pull station cable is intact, the dual-action mechanism moves freely, and the pull station sign is clean and legible. The pull station guard should be present if installed. Test the pull station function using the Amerex-specified test procedure — do not perform a live discharge test without isolating the system from the agent cylinders first. Document the test in the fire suppression system inspection record.

What is the dual-action design and why is it required?

The dual-action mechanism requires the operator to perform two distinct motions to activate the pull station — typically lifting a guard and then pulling the handle. This prevents accidental activation by incidental contact in a busy kitchen environment where the pull station is mounted near foot traffic and equipment movement. NFPA 96 requires that manual activation of fire suppression systems be deliberate and intentional, making the dual-action design a code-required safety feature.

Is a pull station guard required?

A pull station guard is required when the manual pull station is installed in a location accessible to the public or in areas where accidental activation is a significant risk. In commercial kitchen environments where only trained staff have access, a pull station guard may not be required but is still recommended as a best practice. The Amerex pull station guard accessories are available separately and are sized to fit the 21481.

Can the 21481 be used with Pyro-Chem systems?

No. The 21481 is specifically designed and listed for Amerex KP systems with MRM or PRM modules. Pyro-Chem systems use their own fire suppression pull station hardware that is listed and calibrated for Pyro-Chem release modules. Using cross-brand pull stations voids the UL 300 system listing. Always match fire suppression supply components to the system manufacturer.
