3/4" Tee Black

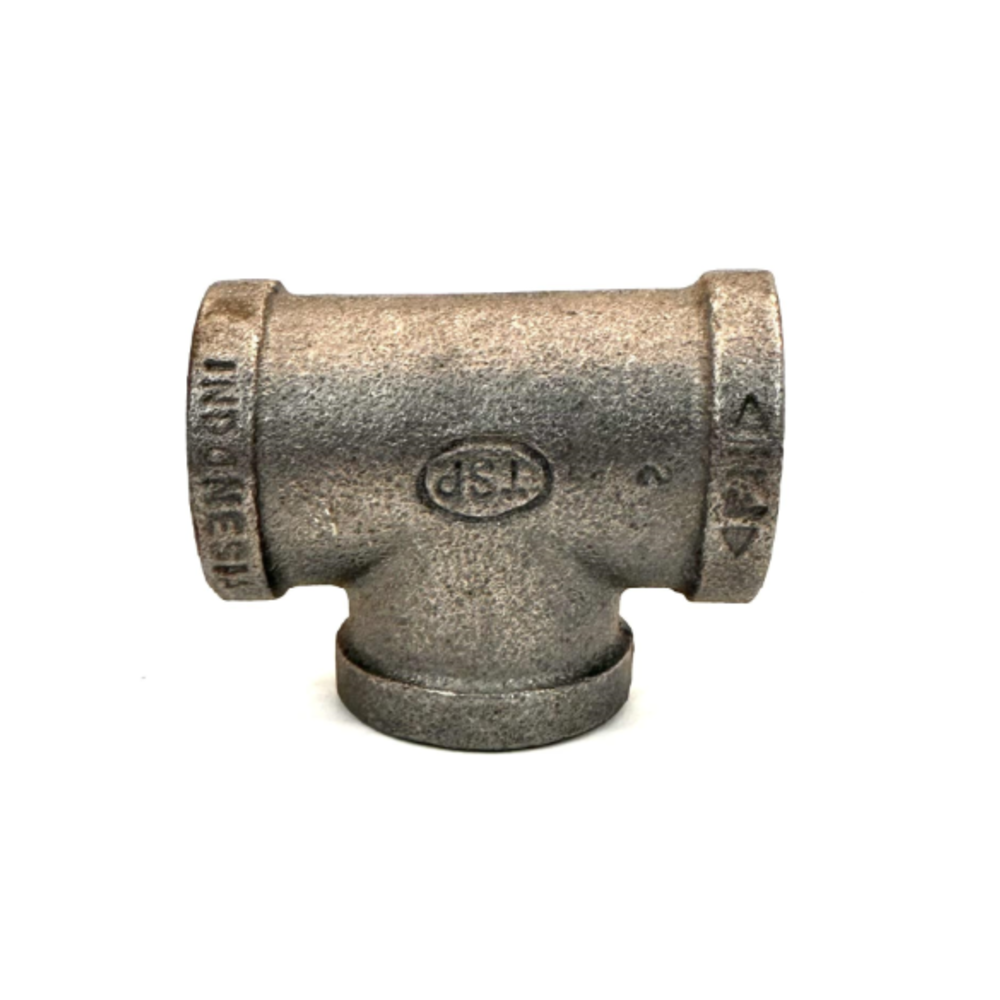

The 3/4" Black Iron Tee (TSP Indonesia) is a heavy-duty malleable iron fitting engineered to create a precise 90-degree branch in high-integrity fluid and gas distribution lines. In the complex architecture of an industrial mechanical room, the tee is the critical component that transforms a single run into a multi-directional network. This unit, manufactured by PT Tri Sinar Purnama (TSP), is a straight tee featuring three equal-sized female NPT ports.

Unlike standard consumer-grade cast fittings that may suffer from internal porosity, TSP-branded hardware is a staple in professional procurement due to its global FM Approval and UL Listing. These certifications guarantee that each 3/4" tee has undergone rigorous pressure and material testing. Whether you are tapping into a primary gas main or balancing a hydronic heating loop, the TSP 3/4" Tee provides the structural rigidity and leak-proof reliability required for infrastructure that cannot afford downtime.

Malleable Iron Kinetics

While standard cast iron is brittle, the ASTM A197 malleable iron used in this tee undergoes a specialized annealing process that transforms the carbon structure, providing higher tensile strength and ductility. This allows the 3/4" hubs to withstand the pipe-stretching forces of thermal expansion without fracturing.

Smooth Bore for Laminar Flow

Every branch introduces a pressure drop. The TSP Tee is machined with a smooth internal bore to maintain laminar flow and reduce the resistance coefficient, helping engineers maintain the hydraulic balance of the system. Internal consistency and minimal casting flash keep turbulence to a minimum at the branch junction.

Banded Reinforcement Design

The hub ends feature a banded reinforcement design. This extra ring of metal at the thread entry points provides essential protection against the wedging force of NPT tapered threads, ensuring the fitting does not split when a technician applies the high torque required for a 300 PSI gas seal.

UL Listed and FM Approved Purity

Fire protection systems and high-pressure steam lines require listed hardware to satisfy insurance underwriting and local fire marshals (AHJs). TSP's adherence to ISO 9001 and its long-standing FM approval make it a globally recognized alternative to domestic brands, offering ANSI/ASME B16.3 performance at a competitive price point.

Precision NPT Threading

TSP utilizes high-precision tapping to ensure every 3/4" NPT port achieves a perfect interference fit. This reduces the reliance on excessive amounts of pipe dope and minimizes the risk of cross-threading during high-speed assembly.

Black Oxide Environmental Shielding

The fitting is finished with a protective black oxide coating. For gas and oil lines, this finish is superior to galvanization, as there is no zinc coating to flake off and clog downstream burner orifices or appliance regulators.

• Commercial Hydronic Heating: Branching 3/4" lines from a primary boiler header to individual radiators or zone valves.
• Fire Sprinkler End-of-Line Drops: Providing the 90-degree transition for sprinkler heads in wet-pipe systems where high-tensile strength is mandated.
• Industrial Compressed Air Networks: Splitting 300 PSI air lines at individual workstations for pneumatic tool integration.
• Natural Gas Train Manifolds: Tapping off a secondary gas main to feed individual appliance regulators in commercial kitchens.
• Secondary Steam Condensate Returns: Managing low-pressure steam return lines in institutional heating systems.

Managing Bull-Head Turbulence

Avoid bull-heading (where flow enters the branch and splits both ways) whenever possible. If the design necessitates it, ensure downstream lines are sized to handle increased flow turbulence to prevent harmonic vibration.

Thread Engagement Depth

For 3/4" NPT, the standard engagement is approximately 0.5 inches. Technicians should aim for hand-tight plus 2 to 3 turns with a pipe wrench. Over-tightening can deform the malleable iron and lead to a slow, persistent leak.

Sealant Compatibility

In gas applications, always use a sealant specifically rated for hydrocarbons. Leave the first thread bare to ensure no excess pipe dope enters the flow path and clogs downstream components.

Visual Inspection Cycle

During annual facility walkthroughs, check the hearth of the tee (the internal junction) for signs of internal porosity or oxidation if the system is subject to heavy condensation.

What is the difference between a "Straight" and a "Reducing" Tee?

In a straight tee, all three ports are the same size (3/4"). In a reducing tee, the branch or one of the run ports is a different size. Straight tees are used when the flow volume must remain consistent across the split.

Is this fitting compatible with galvanized pipe?

Physically, yes, the threads will match. However, from a metallurgical standpoint, mixing black iron with galvanized pipe in a water system can lead to galvanic corrosion. In gas systems, this is less of a concern, but black-to-black is the professional standard.

Why does the fitting have a "Banded" look?

The banded reinforcement design around each port provides extra thickness where the most stress is applied during tightening. This prevents the malleable stretch from turning into a structural crack.
