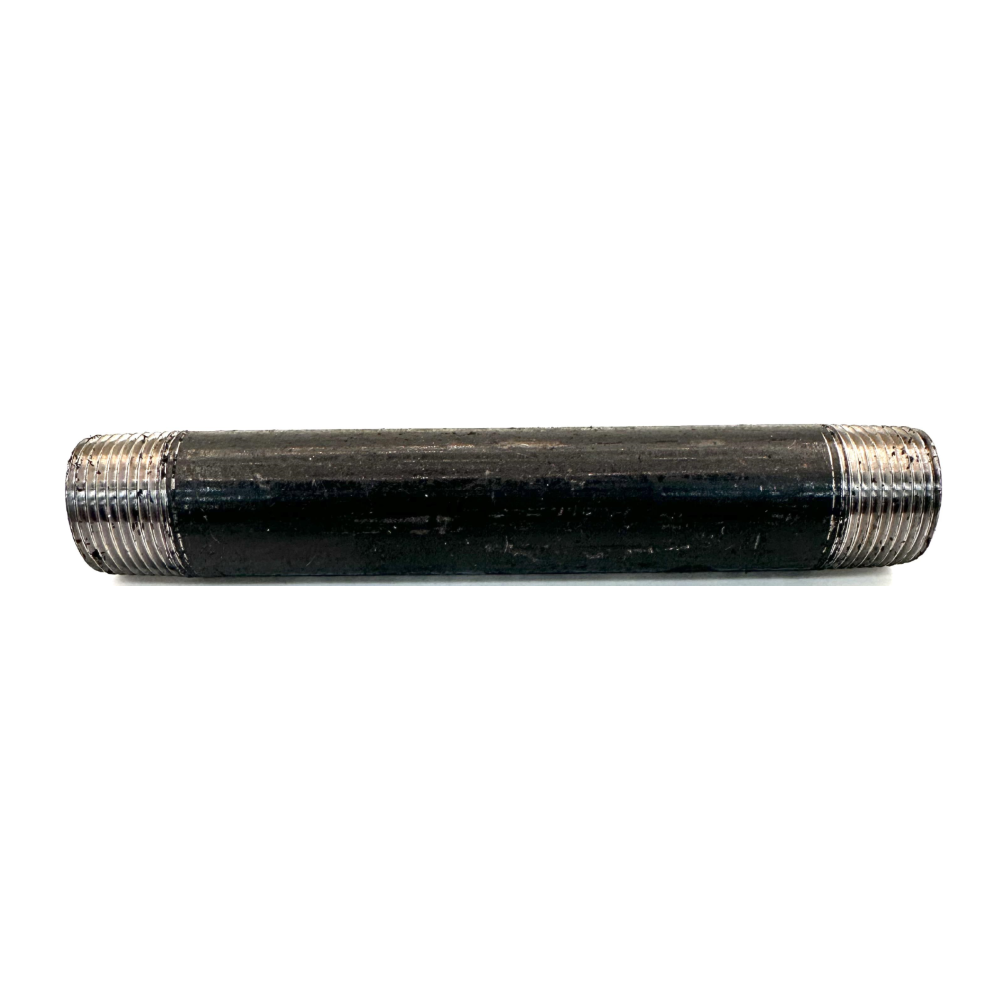

3/4" x 6" Nipple Black

The 3/4" x 6" Black Steel Nipple is a precision-engineered Schedule 40 extension pipe designed for mid-to-high volume fluid and gas transport. In the hierarchy of industrial piping, the 3/4-inch diameter represents a significant step up from residential-grade plumbing, offering the increased cross-sectional area required for secondary gas mains and high-output commercial HVAC loops. Unlike close or short nipples, this 6-inch length provides the necessary clearance to bypass structural obstructions, penetrate thick masonry walls, or create accessible offsets in complex manifold assemblies.

Manufactured from welded carbon steel and finished with an industrial-grade black varnish, this nipple is engineered to meet the dual demands of structural rigidity and chemical compatibility with non-potable fluids and gases. By adhering to ASTM A53 and ASTM A733 standards, this 6-inch extension ensures the integrity of the mainline is preserved across every junction. For mechanical contractors, the 3/4" x 6" nipple is the definitive choice for bridging the gap between a primary header and a regulated appliance, ensuring a code-compliant connection that resists the mechanical stresses of industrial operation.

Increased Volumetric Flow Capacity

The 3/4-inch diameter provides a significant increase in internal cross-sectional area compared to 1/2-inch piping. The internal diameter of approximately 0.824 inches yields roughly 0.533 sq in of cross-sectional area, an approximately 80% increase over 1/2-inch pipe. This allows for a higher hydraulic flow rate at lower velocities, reducing the risk of pipe whistle in gas lines and minimizing pressure drop over the 6-inch run.

NPT Engagement and Taper Dynamics

The threads are cut to ANSI/ASME B1.20.1 standards with a 1/16-inch taper on the diameter. For 3/4" NPT, this involves 14 threads per inch (TPI). This specific thread density provides high mechanical grip and surface-area contact, essential for maintaining a metal-to-metal interference fit in systems subject to thermal expansion and contraction.

ASTM A53 Grade B Metallurgical Purity

The 3/4" x 6" nipple is produced from ASTM A53 Grade B carbon steel, ensuring a minimum tensile strength of 60,000 PSI. This high-tensile rating is critical for 6-inch lengths, as longer nipples are subject to higher bending moments during installation and operation.

Black Varnish and Gas Integrity

In the natural gas industry, black steel is the mandatory standard over galvanized steel. Zinc-based galvanization can flake off in the presence of fuel gases, leading to clogged burner orifices and regulator failure. The industrial-grade black varnish is a sacrificial coating that prevents rust during transport while ensuring the interior bore remains chemically compatible with methane, propane, and hydrogen blends.

Structural Leverage and Schedule 40 Wall Thickness

The Schedule 40 wall thickness (approximately 0.113 inches for 3/4" pipe) provides the necessary structural resistance to prevent snapping at the thread roots when supporting heavy cast-iron components like valves or gauges at the end of the 6-inch run.

• Commercial Gas Header Drops: Dropping secondary gas lines from an overhead main to individual appliance regulators in commercial kitchens and boiler rooms.
• HVAC Glycol Loops: Providing the robust wall thickness required for closed-loop cooling systems and glycol-based heat transfer networks.
• Industrial Air Compressor Branches: Serving as the 6-inch stand-off from a main receiver tank to a distribution manifold with enough clearance for isolation valves.
• Secondary Steam Transitions: Managing low-pressure steam for heating coils and humidification units in large-scale air handling units.
• Process Piping Manifolds: Used in manufacturing facilities to bridge the gap between structural framing and equipment inlets.

Torque Management

3/4" NPT fittings require significant torque to achieve a metal-to-metal interference fit. Use two pipe wrenches, one to hold the manifold and one to turn the nipple, to prevent putting stress on upstream joints. The standard rule is hand-tight plus 2 to 3 turns.

Harmonic Vibration Mitigation

Because a 6-inch nipple has a longer lever than a close nipple, it is more susceptible to harmonic vibration in systems with heavy pumps or compressors. If mounting a heavy valve at the end of the nipple, ensure the valve is supported by a pipe hanger to prevent fatigue at the thread interface.

Sealant Application

For fuel gas applications, use yellow PTFE tape specifically rated for hydrocarbons or a high-quality pipe dope. Apply the sealant starting two threads back from the lead edge to ensure no debris enters the gas path.

Corrosion Mitigation

The black varnish provides minimal long-term protection against moisture. For outdoor or humid installations, the nipple should be painted with a high-quality industrial primer and topcoat after installation to prevent oxidation.

Can I use this nipple for a 3/4" fire suppression discharge pipe?

Yes. For industrial dry-chemical or wet-chemical systems such as Amerex or Ansul, 3/4" Schedule 40 black steel is often the specified standard for discharge manifolds. Its 700 PSI rating is well above the standard 110 to 350 PSI discharge pressures.

How does 3/4" NPT compare to 3/4" GHT (Garden Hose Thread)?

They are completely incompatible. NPT is a tapered thread designed for high-pressure seals, while GHT is a straight thread that relies on a rubber washer for sealing. Never attempt to force an NPT nipple into a garden hose fitting.

Why is 6 inches a common length for wall penetrations?

A standard 2x4 interior wall with 5/8-inch drywall on both sides has a total thickness of approximately 4.75 inches. A 6-inch nipple provides enough length to pass through the wall while leaving enough thread on both sides for easy connection to the rest of the system.
