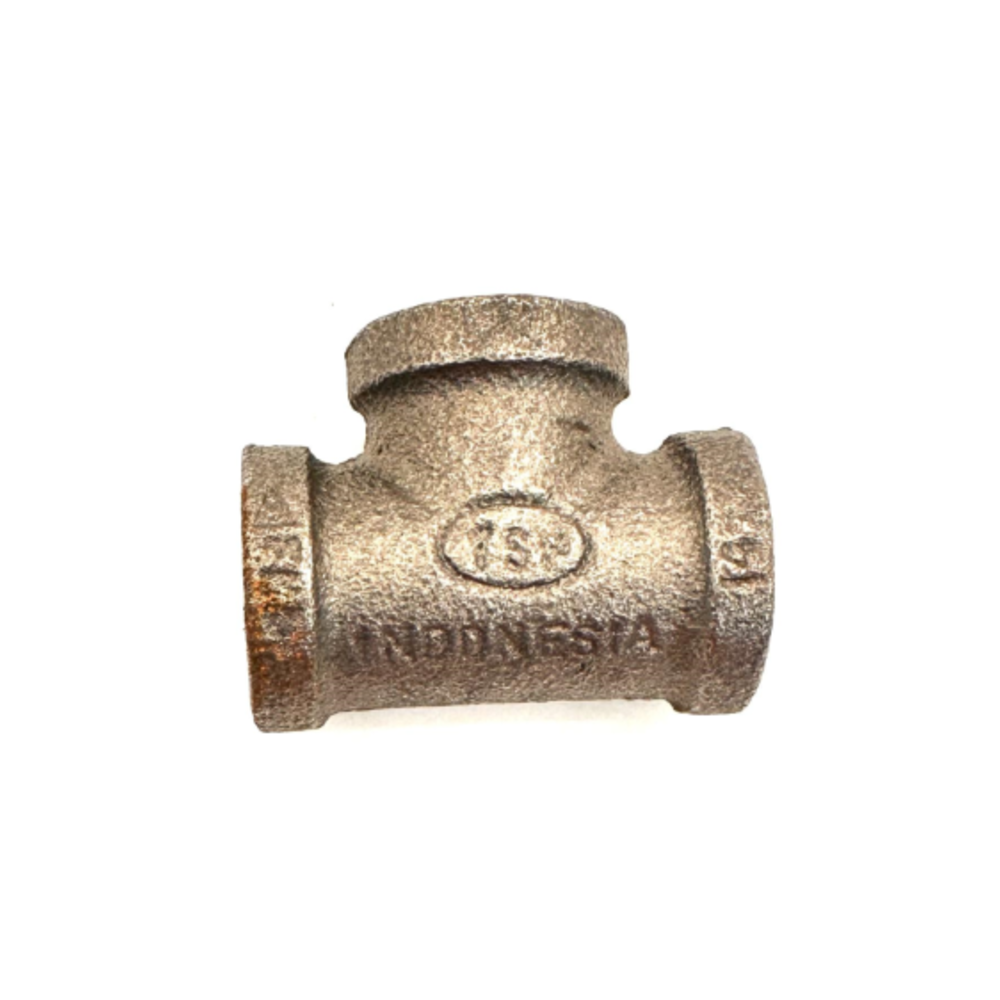

3/8" Black Tee

The 3/8" Black Pipe Tee is a foundational industrial fitting engineered to provide a high-strength, 90-degree branch connection in permanent piping runs. Shaped like the letter "T," this fitting features three female-threaded ports, allowing a single fluid or gas line to be split into two separate paths or combined into a single header. Unlike standard hardware-grade fittings, this tee is manufactured from high-strength carbon steel, providing the structural integrity required for high-pressure gas manifolds, pneumatic drop lines, and hydraulic sensing systems.

The "Black" designation refers to the protective black oxide scale formed during the manufacturing process, which provides a layer of dry-environment corrosion resistance. This makes it the industry standard for natural gas piping, where galvanized coatings are often prohibited due to the risk of zinc flaking that can clog sensitive downstream openings. Designed to meet Schedule 40 specifications, this tee is a reliable component for contractors who demand leak-free performance in demanding industrial and commercial environments.

The 3/8" size is ideal for creating branch points in gas distribution systems, compressed air manifolds, and control line setups. The three-port design gives you flexibility to split one line into two or combine two lines into one, making it essential for building efficient piping systems.

Understanding Tee Fittings: Run and Branch

Three-Port Design

A tee fitting has three openings. The two openings in a straight line are called the "Run" (the main flow path). The opening at 90 degrees is called the "Branch" (the side outlet). This design allows you to maintain the main pipe direction while adding a side connection for equipment or additional lines.

NPT Thread Sealing

This tee features female threads cut at a 1:16 taper on all three ports. As a male-threaded nipple or pipe is screwed into the tee, the tapered threads wedge together to form a metal-to-metal mechanical seal. This interference fit allows the system to handle significant internal pressures, up to 300 PSI static, without the joint breaking or leaking.

Smooth Internal Flow

When a fluid or gas enters the Run of the tee and exits through the Branch, it undergoes a sudden change in direction. The internal casting of this 3/8" tee is smoothed to minimize flow disruption. This reduces the pressure drop (friction loss) across the fitting, which is critical for sensitive pneumatic instruments and gas regulators that need consistent pressure.

Carbon Steel Strength

Manufactured from ASTM-grade carbon steel, this tee offers superior tensile and yield strength compared to brass. This is vital in industrial settings where the piping may be subjected to mechanical vibration or temperature changes. The steel construction ensures the fitting stays reliable for many years without cracking or weakening.

Why Professionals Choose Tee Fittings

• Efficient Manifold Building: In modern boiler rooms, creating multiple drops from a single header is a common requirement. The 3/8" tee allows for the assembly of compact, low-profile piping manifolds that can distribute gas or air to several pieces of equipment simultaneously.
• Gas System Approved: Black steel is chemically compatible with natural gas and propane including the smell chemicals added for safety. The absence of a zinc coating ensures that no internal pipe scale can flake off and clog small gas openings in high-efficiency industrial boilers.
• Easy Installation: The black oxide finish provides a high-friction surface that grips pipe wrenches well. This allows for the high-torque installation required to achieve a gas-tight seal without slipping.
• Code Compliant: Meets ASTM A197, ASME B16.3, and ASME B1.20.1 standards for industrial piping systems.

The 3/8" Black Pipe Tee works well for many industrial and commercial applications:

• Natural Gas & Propane Manifolds: The primary choice for splitting a gas supply line to feed both a pilot light and a main burner assembly on industrial furnaces.
• Pneumatic Distribution Lines: Used in manufacturing facilities to create drop points from a main overhead air header (90 to 150 PSI) to individual workstations.
• Fire Suppression Sensing Lines: Employed in specialized fire suppression systems to branch pressure-sensing tubing that triggers the release of clean agents.
• Instrumentation Mounting: Providing a branch point for industrial pressure gauges, sensors, and temperature sensors for easier visual monitoring.
• Multi-Burner Systems: Distributing gas to multiple burners from a single supply line in commercial kitchens and industrial heating systems.
• Air Tool Stations: Creating branch connections for compressed air tools in shop and manufacturing environments.

To ensure a leak-free installation and maintain NFPA 54 compliance, follow these professional protocols:

• Use Gas-Rated Sealant: For gas lines, always use yellow PTFE tape or pipe dope rated specifically for hydrocarbons. Apply sealant to male threads only, never to female threads.
• Follow the Run and Branch Rule: When installing a tee, ensure the highest flow volume stays on the Run (the straight-through path) to minimize pressure drop. The Branch (the 90-degree exit) should be reserved for the individual equipment drop.
• Support the Assembly: Tee fittings create stress points in pipe systems. Make sure all connected pipes are properly supported to prevent sagging and stress on the tee joints.
• Prevent Different Metal Contact: Never connect black steel tees directly to copper without a special joining fitting. Different metals touching can cause rapid rust and pipe failure.
• Test Every Connection: Every joint must be pressure tested with soap solution or a digital leak detector before you use the system. This ensures a complete gas-tight seal on all three ports.
• Follow Local Codes: Always check local building codes for specific requirements about tee fitting installation in your area.

What is the difference between a standard tee and a reducing tee?
A standard tee (like this one) has the same size threads on all three ports. A reducing tee has one or more ports with a different diameter. You use this standard 3/8" tee when all connected pipes are 3/8" NPS.

Can I use this for a natural gas line in my home?
Yes. Black steel is the preferred, code-compliant material for natural gas because it is strong and does not flake like galvanized pipe. Always ensure your installation meets local plumbing and mechanical codes.

Is this safe for compressed air?
Yes, black steel is a standard material for industrial compressed air lines. It is rated for 150 PSI working pressure, which easily covers the 90 to 125 PSI range used in most pneumatic piping systems.

Which port should I use for the main line and which for the branch?
The two ports in a straight line form the Run (main flow path). Use these for your main supply line. The port at 90 degrees is the Branch. Use this for your equipment connection or secondary line. This arrangement minimizes pressure drop.
