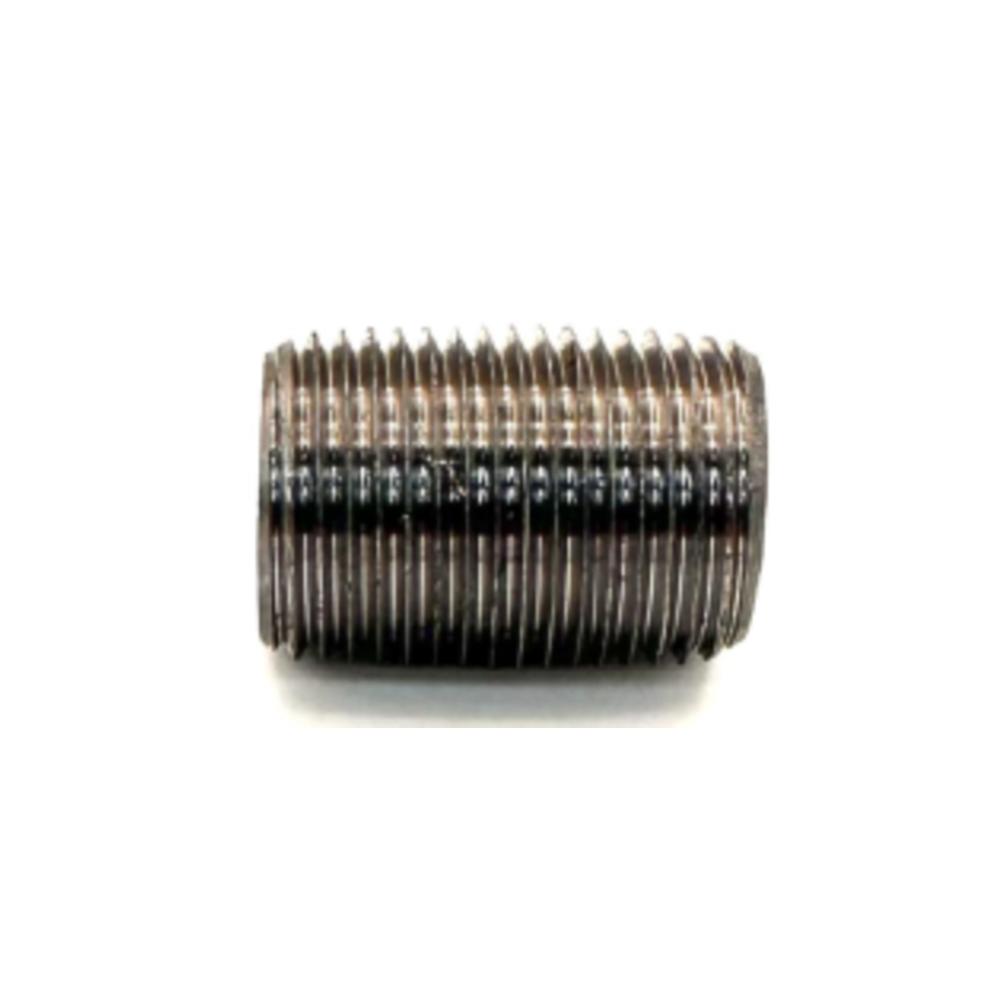

3/8" Close Nipple Black

The 3/8" Black Steel Close Nipple is the indispensable invisible junction of high-performance piping systems. In industrial maintenance and manifold construction, space is often the most expensive commodity. When a technician is faced with a layout where every fraction of an inch determines whether a valve assembly fits within a control cabinet, the close-nipple geometry becomes the definitive solution.

Unlike standard shoulder nipples that feature an unthreaded central section, the close nipple is threaded continuously from end to end. This allows two female-threaded fittings such as ball valves, regulators, or pressure gauges to sit nearly flush against each other. For procurement officers, this component is the primary tool for reducing the mechanical footprint of a system while maintaining the rugged tensile strength of carbon steel. Manufactured to ASTM A733 standards, it provides the structural reliability required for gas trains, pneumatic lines, and low-pressure steam loops.

Zero-Shoulder Interference

In a standard pipe nipple, the shoulder provides a gripping surface. In a close nipple, the shoulder is eliminated, allowing the taper of the National Pipe Thread (NPT) to engage fully into both female ports. When properly torqued, the distance between fittings is minimized, allowing for ultra-dense manifold packing.

NPT Interference Fit Physics

The threads are cut according to ASME B1.20.1 with a taper rate of 1 in 16 on the diameter. This creates an interference fit; as the nipple is tightened, the crests and roots of the threads wedge together to form a metal-to-metal seal. The 3/8" NPT size utilizes 18 threads per inch (TPI), providing high surface-area contact that resists vibration-induced loosening.

ASTM A53 Grade B Integrity

Most industrial black nipples are produced from Electric Resistance Welded (ERW) pipe conforming to ASTM A53. This ensures the steel has a minimum yield strength of approximately 35,000 PSI. For systems subject to thermal expansion or mechanical slugging, this yield strength prevents the threads from stretching over time.

Black Oxide Stability

In the natural gas and propane industry, black steel is the mandatory standard. Unlike galvanized pipe, which features a zinc coating that can flake off under high-velocity flow and clog sensitive burner orifices, black steel is chemically stable. This prevents the debris-loading that leads to emergency service calls in commercial boiler rooms.

Schedule 40 Pressure Rating

A 3/8" Schedule 40 nipple can safely handle 2,000 PSI to 2,500 PSI depending on joint efficiency at ambient temperatures, making it substantially over-engineered for standard 125 PSI shop air or 5 PSI gas lines.

• Commercial Gas Train Assemblies: Connecting gas regulators to shut-off valves in the tight confines of a boiler's fuel rail.
• Pneumatic Control Panels: Allowing for the banked mounting of solenoid valves where spacing is restricted by DIN-rail dimensions.
• Boiler Sight Glass and Siphons: Providing a compact, high-temperature transition for pressure gauges and water-level indicators (safe up to 350°C).
• Lubrication and Oil Lines: The black oxide finish is naturally compatible with petroleum-based fluids, making it ideal for machinery lube-oil manifolds.
• HVAC Drip Legs: Serving as the compact junction between a main line and a sediment trap in restricted ceiling spaces.

Internal Nipple Wrench Utilization

For the cleanest installation, use an internal nipple wrench (also known as a nipple dog). This tool expands inside the bore, allowing you to torque the fitting from the inside without damaging the exterior threads.

The Two-Fitting Field Method

If an internal wrench is unavailable, thread the nipple hand-tight into your first fitting. Thread the second fitting onto the other end. Use your pipe wrench on the second fitting to tighten the assembly. The torque will naturally transfer through the nipple.

Sealant Selection Protocol

Use high-quality pipe dope or PTFE tape. For gas applications, ensure the tape is the thicker yellow variety rated for fuel gas. Always leave the first thread bare to prevent sealant from entering the flow path.

Avoid Over-Torquing

A standard rule for 3/8" NPT is finger-tight plus 1.5 to 2 turns. Beyond this point, you risk cracking the female cast-iron or brass fitting that the nipple threads into.

Can I use this nipple for drinking water?

No. Black steel is susceptible to internal oxidation (rust) when exposed to oxygenated potable water. For drinking water, always use stainless steel or galvanized steel depending on local codes.

What is the difference between Schedule 40 and Schedule 80 close nipples?

A Schedule 80 nipple has a thicker wall (approx. 0.126" vs 0.091"). While the exterior diameter is the same, the thicker wall provides a higher pressure rating and better fatigue resistance for high-vibration or high-pressure steam applications.

Is "Black Iron" the same as "Black Steel"?

In modern trade parlance, yes. While true iron pipe is rare, the industry uses the term black iron to refer to ASTM A53 mild steel pipe with a black lacquer or oxide finish.
