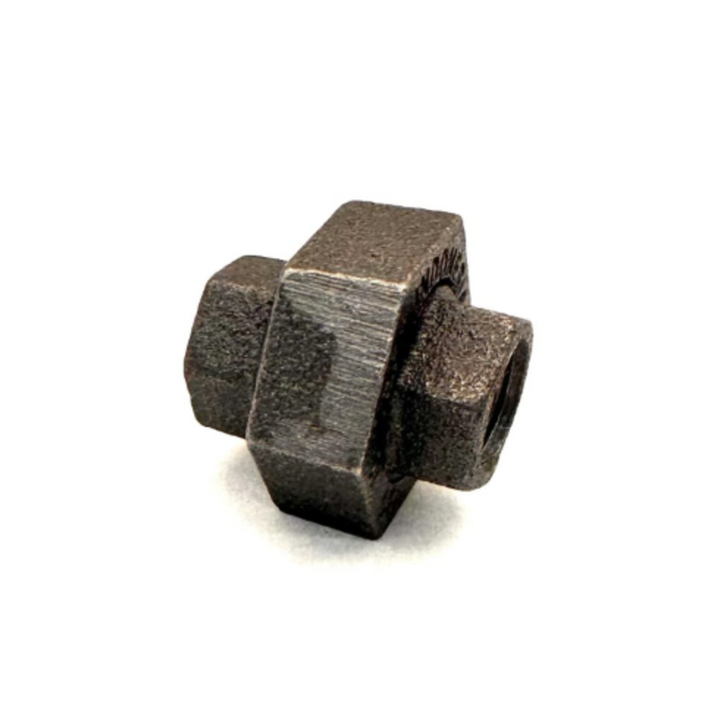

3/8" Union Black

The 3/8" Black Pipe Union is a specialized, three-piece threaded fitting engineered to provide a convenient disconnect point in a permanent piping run. Unlike a standard coupling, which requires the entire pipe run to be taken apart to make a change, a union allows for the central nut to be unscrewed, separating the two sections of pipe instantly. This makes it an essential component for systems requiring periodic maintenance, such as lines connected to industrial boilers or gas regulators.

Constructed from heavy-duty black steel, this 3/8" union is designed to handle the high-torque requirements of natural gas piping and compressed air systems. The internal design features a precision-machined ground-joint seat. This design creates a high-pressure seal without the need for a separate rubber gasket that could wear out over time. For facility managers, the 3/8" black union is the top choice for building service-friendly, high-integrity piping systems.

The 3/8" size is perfect for gas meter connections, compressed air drop lines, and equipment supply lines where you need the ability to disconnect quickly without cutting pipes. This fitting saves time and money during maintenance and equipment replacement.

How a Union Works: Three Parts Working Together

The 3/8" union consists of three distinct components that work together to provide a leak-proof, separable connection:

The Female Tailpiece

This piece threads onto the incoming pipe section using standard male NPT threaded connections. It has female threads on one end and the ground-joint sealing surface on the other.

The Male Tailpiece

This piece threads onto the outgoing pipe section and features the precision-machined ball or cone face. This machined surface mates perfectly with the female tailpiece to create the seal.

The Union Nut

The central collar that draws the two tailpieces together, compressing the internal faces into a tight seal. By simply loosening the union nut with a pipe wrench, the two halves of the piping system can be pulled apart.

This slide-out capability is critical in mechanical rooms where equipment must be disconnected for repair without cutting the hard-piped lines. This saves significant time and prevents damage to existing pipe installations.

Ground-Joint Sealing Technology

Metal-to-Metal Contact

The internal faces of the union tailpieces are machined to a precise angle. When the nut is tightened, these surfaces are compressed into a ground joint. This is superior to gasketed unions because it cannot blow out under pressure and is highly resistant to the smell chemicals used in fuel gas. The metal seal also handles temperature changes better than rubber gaskets.

Heavy-Duty Construction

The external union nut is designed with heavy-duty lugs, providing a secure grip for pipe wrenches. This ensures the union can be tightened to the gas-tight level and easily loosened years later, even in harsh environments. The strong lugs prevent rounding and stripping during installation and removal.

Carbon Steel Durability

Manufactured from ASTM-grade carbon steel, this union offers the structural strength needed to handle temperature changes and high-pressure air systems. The black steel construction resists cracking and stays reliable through thousands of pressure cycles.

Why Professionals Choose Unions

• Easy Equipment Replacement: In commercial facilities, equipment failure should not mean a total system shutdown. Placing 3/8" unions on the supply lines of a regulator allows for quick equipment swaps without extensive pipe work.
• Gas System Approved: Black steel is the industry-standard material for propane and natural gas. Unlike galvanized pipe, the black oxide finish of this union is stable and safe for use with hydrocarbons.
• Vibration Resistant: The mass of the 3-piece union provides a robust connection resistant to mechanical vibration from industrial compressors, reducing the risk of leaks from fatigue.
• No Cutting Required: Disconnect and reconnect pipes without cutting, threading, or welding. This saves time and preserves the integrity of your piping system.

The 3/8" Black Pipe Union works well for many industrial and commercial applications:

• Natural Gas & Propane Meter Sets: Installed near the regulator to allow for easy testing or replacement of the gas meter without cutting pipes.
• Compressed Air Drop Lines: Placed near air filters and moisture traps to facilitate rapid maintenance without depressurizing the entire plant header.
• Industrial Kitchen Equipment: The standard connector for gas-powered ovens, allowing them to be pulled out for deep cleaning and maintenance.
• Pneumatic Control Manifolds: Providing a disconnect point for sensitive control valves and pressure sensors that need periodic calibration.
• Gas Appliance Connections: Installing water heaters, furnaces, and boilers where codes require a union for service access.
• Air Tool Stations: Creating service points in shop compressed air systems for quick tool connection and removal.

To ensure a leak-free installation and maintain NFPA 54 compliance, follow these professional protocols:

• Sealant Placement is Critical: Apply yellow PTFE tape or pipe dope only to the NPT threads connecting the tailpieces to the pipe. Never put sealant on the internal ground-joint seat, as it can interfere with the metal-to-metal seal.
• Align Pipes Carefully: Ensure pipe sections are perfectly aligned before tightening. Forcing a misaligned nut can strip threads and cause leaks. Use a level or straight edge to check alignment.
• Tighten in Stages: Tighten the union nut gradually and evenly. Make several passes around the nut rather than tightening one side completely first. This ensures even pressure on the ground joint.
• Prevent Different Metal Contact: Never connect black steel unions directly to copper without a special joining fitting. Different metals touching can cause rapid rust and pipe failure.
• Test Every Union: Every union must be pressure tested with soap solution or a digital leak detector before you use the system. This ensures a complete gas-tight seal.
• Follow Local Codes: Always check local building codes for specific requirements about union placement and installation in your area.

What is the advantage of a union over a coupling?
A coupling permanently joins two pipes and cannot be easily separated. A union allows you to disconnect the pipes by simply unscrewing the central nut, making equipment service and replacement much easier without cutting pipes.

Do I need to replace the union after disconnecting it?
No. A properly installed union can be disconnected and reconnected many times. The ground-joint seal is designed for repeated use. Just make sure to clean the sealing surfaces before reconnecting.

Why should I not use sealant on the ground joint?
The ground joint creates a metal-to-metal seal through precision machining and compression. Sealant can prevent proper contact between the surfaces and actually cause leaks. Only use sealant on the NPT threads that connect to the pipes.

How tight should the union nut be?
Tighten the union nut firmly with a pipe wrench until you feel solid resistance. Over-tightening can damage the ground-joint surfaces. After pressurizing, check for leaks and only tighten more if bubbles appear during testing.
