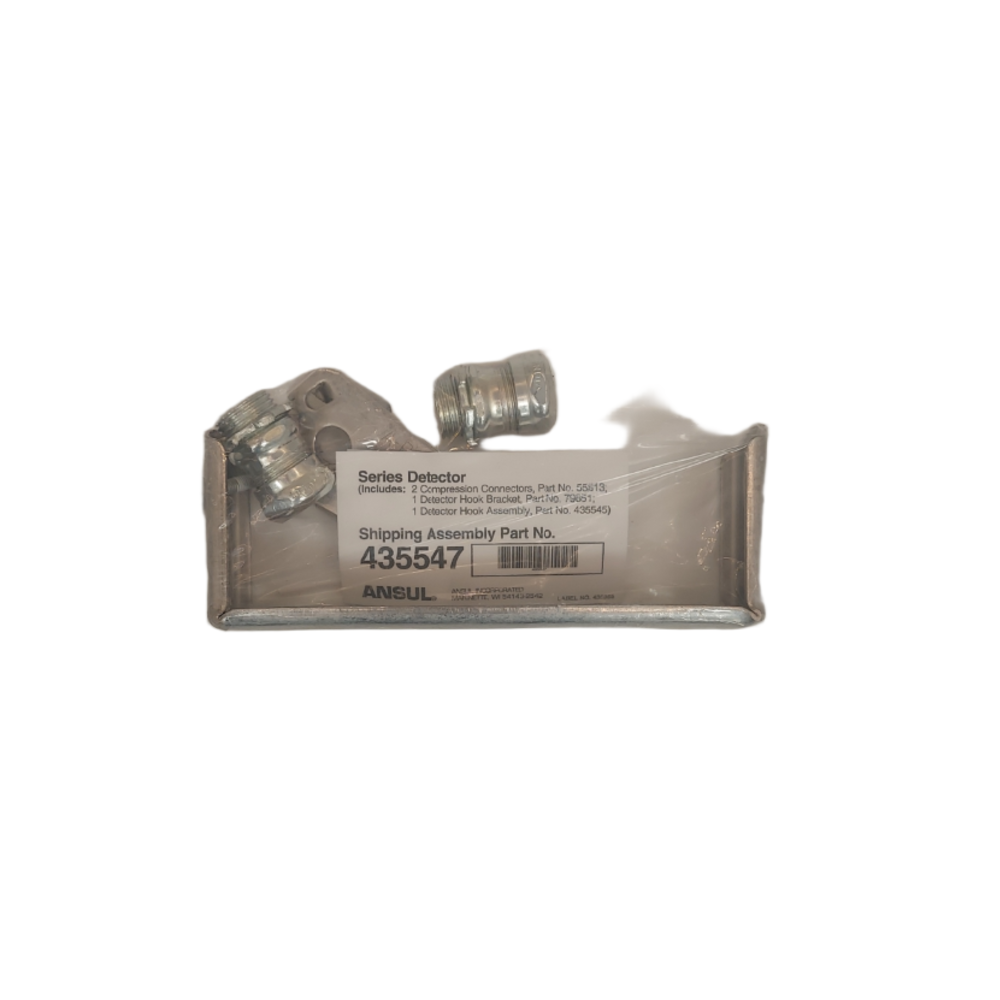

OEM 435547 Detector, Series (Scissor Linkage) (Single)

The Ansul Scissor Linkage Detector (435547) is a precision mechanical component engineered for the ANSUL AUTOMAN detection network. In the architecture of an R-102 or Piranha system, the detection line is under constant tension, holding the potential energy of the release mechanism in check. The 435547 serves as the mounting interface for the fusible links. Its unique scissor design is engineered to provide a clean, non-binding release of the detection cable the moment a thermal event occurs.

Manufactured from high-strength, corrosion-resistant steel, the 435547 is designed to withstand the extreme environmental stresses of a commercial kitchen hood. Because it is an OEM component, the pivot tolerances are machined to ensure that the linkage will not seize or gum up over years of standby service. For fire protection professionals, this detector is the structural foundation that ensures the kinetic signal is transmitted with full efficiency to the control head.

Linear-to-Angular Translation

The 435547 acts as a bridge between the horizontal detection cable and the fusible link. It utilizes a scissor-action leverage ratio that ensures even a small drop in the structural integrity of the link results in an immediate, wide-gap separation. This prevents partial trips, where the cable might otherwise snag or fail to drop enough tension.

Low-Friction Pivot Geometry

The hinge of the scissor linkage is the most critical point of the detection line. The 435547 features precision-ground pivot points designed for dry-operation. This is essential for maintaining sensitivity in the dirty air of a kitchen exhaust plenum, where external lubricants would only attract grease and dust.

Load Distribution Dynamics

The linkage is designed to distribute the static load of the detection cable across the shoulders of the fusible link. This prevents eutectic alloy creep under normal operating conditions, extending the life of your detection components and reducing the risk of accidental discharges.

Compliance with NFPA 17A and 96

These standards require all detection assemblies be listed and labeled. The 435547 is a UL-listed component of the Ansul R-102 system. Substituting this with a generic or field-modified bracket is a code violation that can lead to a red-tag from the local Authority Having Jurisdiction (AHJ).

Simplified Maintenance and Resetting

During mandatory service, the scissor-linkage design allows for a quick-set procedure. The link can be snapped into place and tensioned using the Ansul 441041 Cocking Tool, reducing labor costs and ensuring the kitchen stays on schedule.

Resistance to Heat Distortion

In the hot zone directly above charbroilers, the 435547 resists thermal expansion. This ensures that the critical drop distance of the detection mechanism remains constant regardless of ambient temperatures.

• High-Volume Cooking Lines: Protecting the main detection manifold for fryer batteries and high-BTU ranges.
• Exhaust Duct Transitions: Serving as the detection point for duct fires where rapid separation is required to prevent fire spread.
• Special Hazard Enclosures: Providing mechanical detection for industrial equipment where electrical sensors are impractical.
• Institutional Kitchens: Ensuring a robust infrastructure that passes the most rigorous public safety audits.
• Detection System Retrofits: Replacing legacy brackets with modern low-friction scissor linkages to improve response times.

Semi-Annual Degreasing

During every service, the linkage must be thoroughly cleaned. Grease buildup can glue the halves together, potentially delaying system response time during a fire.

Visual Inspection for Rounding

Technicians must check the ears where the link attaches. If these show signs of wear, the linkage must be replaced. Worn attachments lead to link-slippage, a primary cause of accidental discharge.

Drop-Test Verification

During functional testing, a certified fire technician must verify the 435547 opens fully, allowing the cable to travel its full rated drop distance.

Alignment Audit

The detector must be centered over the appliance. If the bracket has shifted due to hood cleaning, the system may not detect a fire in its earliest stages.

What happens if the scissor linkage is installed upside down?

Incorrect installation can cause the linkage to bind against the conduit. This prevents the cable from dropping tension, effectively disarming the system. Always look for the Ansul Red Line on the bracket for correct orientation.

Can I use a 435547 with a non-Ansul fusible link?

No. The 435547 is specifically machined to match the dimensions of Ansul K-Style and ML-Style links. Using a different brand increases the risk of nuisance trips due to vibration or improper fit.

Is this part used in the Piranha system?

Yes. Since the Piranha and R-102 systems utilize the same mechanical detection architecture, the 435547 is the universal detection linkage for both platforms.
