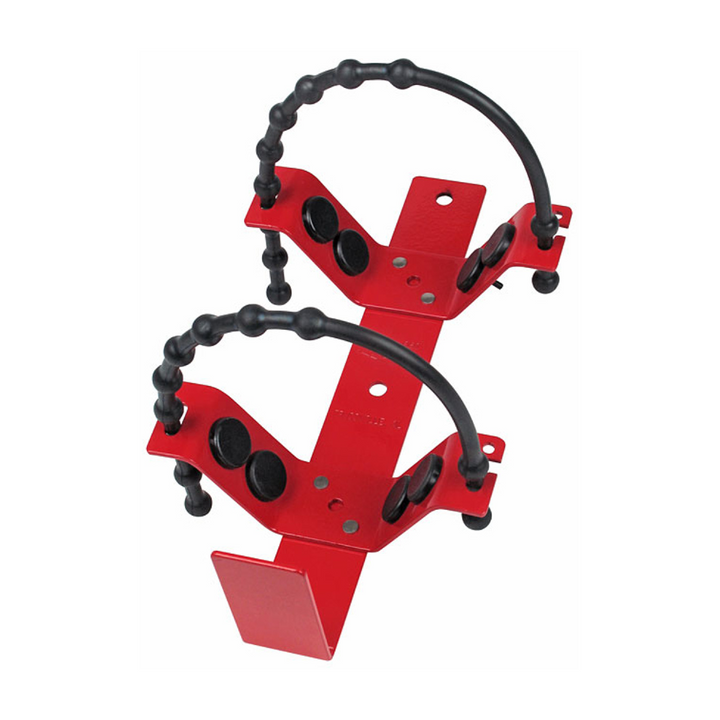

OEM Amerex 860 - 2.5/5LB Fire Extinguisher Heavy Duty Rubber Strap Bracket - 10437

The Amerex 860 (Part Number 10437) is a professional-grade, heavy-duty mounting solution engineered for fire extinguishers ranging from 2.5 lb to 5 lb in capacity. Unlike traditional fixed-metal-strap brackets, the Amerex 860 utilizes a high-tensile, flexible rubber retention strap system. This design is specifically intended for the most demanding dynamic environments—where extreme vibration, mechanical shock, and physical impact are daily occurrences.

Constructed from primed and powder-coated steel, the 860 is built to withstand the rigorous conditions of heavy industry and transportation. The "rubber strap" design offers a unique advantage: it provides a continuous, dampening grip that conforms to the cylinder, significantly reducing the "chatter" and metal-on-metal wear that can degrade a fire extinguisher's finish and structural integrity over time. Whether you are outfitting a fleet of off-road service trucks or a maritime vessel, the Amerex 860 is the OEM standard for secure, accessible, and compliant mounting.

The Physics of Rubber Strap Dampening: Why it Matters

• Shock Absorption: In heavy equipment—such as bulldozers or forklifts—metal brackets can transmit high-frequency vibrations directly into the extinguisher's valve and gauge. The rubber strap of the 860 acts as a shock absorber, protecting the delicate internal seals and pressure-sensing components from premature failure.
• Cylinder Surface Protection: Metal-to-metal contact in high-vibration environments can lead to "fretting corrosion," where the extinguisher's paint is rubbed away, exposing raw steel to the elements. The rubber interface of the 860 prevents this, ensuring your extinguishers pass annual inspections for years to come.
• The Universal Grip: The 860 is designed to accommodate any cylinder with a diameter between 2.75 inches and 4.5 inches. This makes it the ideal "standardized" bracket for facilities that utilize various extinguisher brands or sizes, allowing for a uniform mounting footprint across the entire property or fleet.

The Amerex 860 Advantage: Genuine OEM Standards

• ASTM B117 Salt Spray Compliance: The steel portion of the bracket is primed and then finished with an oven-cured polyester powder coating. It is tested to meet UL salt spray standards, making it highly resistant to the road salts and marine humidity that cause inferior brackets to rust and fail.
• P/N 07166 Replaceable Strap: The retention strap is a wear item. Unlike cheaper units where the entire bracket must be replaced if the strap breaks, the Amerex 860 is fully serviceable. The high-performance rubber strap (P/N 07166) can be replaced individually, lowering the long-term cost of ownership.
• Tear-Resistant Geometry: The strap features a reinforced pull-tab and mounting holes designed to resist "tearing out," even when the strap is under high tension in extreme cold or heat.
• Low-Profile Design: The bracket base is engineered to be as compact as possible, allowing it to be mounted in the tight confines of vehicle cabs, equipment compartments, or between structural members.

The Amerex 860 is the specified choice for environments where "Rigid" mounting isn't the best option:

• Marine & Personal Watercraft: The combination of corrosion-resistant steel and a rubber strap that won't seize due to salt buildup makes this a favorite for the maritime industry.
• Off-Road & Construction Equipment: Ideal for excavators, skid steers, and tractors where the terrain is uneven and the vibrations are constant.
• Fleet Service Vans: Provides a secure, rattle-free mounting solution for technicians who carry 2.5 lb or 5 lb units in the passenger compartment or tool storage area.
• Public Transit & Schools: Used in buses and passenger vans where safety equipment must be securely locked down but easily accessible to the driver.
• Warehouse & Logistics: Perfect for mounting on forklift ROPS (Roll-Over Protection Systems) where the extinguisher is subject to frequent bumps and impacts.

Compatible Amerex Models

The 860 bracket is the OEM-recommended mount for a vast array of units, including:

• Halotron I: B385TS, 386T, C352TS, C354TS
• ABC Dry Chemical: B355T, B417/T, B403/T, B410T
• Carbon Dioxide: B479/T (5 lb CO2)

To maintain NFPA 10 and OSHA compliance, follow these professional mounting guidelines:

• Strap Tension: The rubber strap should be pulled tight enough that the extinguisher cannot "slide" vertically within the bracket. The elasticity of the rubber provides the clamping force necessary to counteract G-forces during vehicle travel.
• Mounting Hardware: Use Grade 5 or higher bolts. When mounting to thin vehicle sheet metal, use large fender washers on the backside to prevent the bolts from pulling through the metal during an impact.
• Quick Access: The "tab" of the rubber strap should always be facing the primary operator or driver. Ensure there is enough clearance for a hand to grasp the tab and pull it across to release the extinguisher in one fluid motion.
• Temperature Considerations: While the 860 is designed for extreme temperatures, it is good practice to inspect the rubber strap for signs of "dry rot" or cracking every 6 months if the vehicle is stored in high-heat desert environments.

Will this fit a 10 lb fire extinguisher?
Generally, no. Most 10 lb extinguishers have a diameter of 5 inches or larger. The Amerex 860 is strictly designed for diameters up to 4.5 inches. For larger 10 lb units, you should look at the Amerex 809 (5.25") bracket.

How do I replace the rubber strap if it breaks?
The strap is held in place by a metal retention pin on the side of the bracket. Simply remove the pin (or the bolt, depending on the revision), slide the old strap out, and install the Amerex 07166 replacement strap.

Is this bracket USCG approved?
Yes. For marine use, an extinguisher is only "approved" if it is in a dedicated marine bracket. The Amerex 860 meets these requirements for the compatible models listed, providing the necessary security for sea-going vessels.
