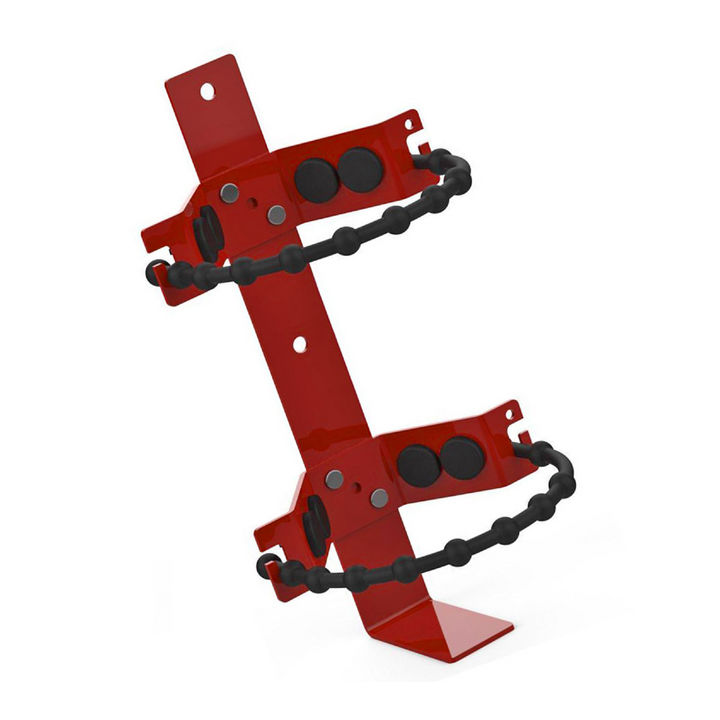

OEM Amerex 864 -15/20/30LB Fire Extinguisher Heavy Duty Rubber Strap Bracket - 07510

The Amerex 864 (Part Number 07510) is a professional-grade, high-capacity mounting solution specifically engineered for fire extinguishers ranging from 15 lb to 30 lb. In the world of industrial fire protection, larger extinguishers like the 20 lb ABC or 30 lb Class D models represent a significant amount of mass. If not secured correctly, these units can become lethal projectiles or suffer mechanical failure due to constant industrial vibration. The Amerex 864 provides the "Extreme Duty" solution, utilizing a heavy-gauge steel chassis paired with a reinforced, oversized rubber retention strap.

Constructed to exceed original equipment manufacturer (OEM) specifications, the 864 is the primary choice for mounting high-capacity life-safety equipment on heavy machinery, mining trucks, and maritime vessels. Its primary advantage lies in its Wide-Diameter Versatility. Because the elastomeric strap is both adjustable and high-tension, it can securely hold any cylinder with a diameter between 6.5 inches and 8 inches. This flexibility makes it the essential bracket for facilities that deploy a mix of high-capacity dry chemical, Class D powder, or water-based extinguishers.

The Physics of Heavy-Mass Retention: G-Force and Inertia

• Kinetic Energy Absorption: A 30 lb fire extinguisher (like the Amerex B571) can weigh over 50 pounds when fully charged. In a sudden vehicle stop or impact, that mass generates thousands of pounds of force. The 864's reinforced rubber strap (P/N 07802) is designed to stretch slightly to absorb these kinetic spikes, preventing the bracket from shearing off the mounting surface.
• Vibrational Harmonics: Large cylinders are prone to "agent packing" and valve-seal wear when subjected to the high-amplitude vibrations of diesel engines or rough seas. The 864 provides 360-degree frictional grip, which dampens these harmonics and extends the service life of the extinguisher's internal components.
• Corrosion Isolation: In industrial and marine environments, metal-to-metal contact leads to "galvanic corrosion." The thick rubber strap of the 864 provides a non-conductive, non-corrosive barrier between the steel bracket and the extinguisher cylinder, ensuring the unit remains easy to remove even after years in harsh conditions.

The Amerex 864 Advantage: Genuine OEM Industrial Standards

• ASTM B117 Salt Spray Compliance: Every 864 bracket is primed and then finished with an oven-cured polyester powder coating. Tested to meet UL salt spray standards, it is impervious to the road salts and high-humidity environments that cause inferior brackets to rust and fail within months.
• P/N 07802 Replaceable Heavy-Duty Strap: Unlike smaller brackets, the 864 uses a specifically reinforced strap designed for higher weight loads. If the strap is eventually damaged by chemical exposure, you can replace just the strap (P/N 07802) rather than the entire assembly, significantly reducing long-term maintenance costs for large fleets.
• Reinforced Mounting Spine: The "backbone" of the 864 is manufactured from heavy-gauge steel to support the vertical load of a 30 lb unit without bowing. The spine features a multi-hole pattern for versatile installation on roll cages, bulkheads, or industrial framing.
• Actionable Quick Release: Despite the high tension required to hold a 20 lb or 30 lb unit, the strap geometry allows for a "one-motion" release. This ensures that even in a high-stress emergency, an operator can free the heavy extinguisher instantly.

The Amerex 864 is the primary specified bracket for "Extreme-Scale" protection:

• Mining & Heavy Earthmoving: The standard for haul trucks and excavators where 20 lb and 30 lb extinguishers are required by MSHA standards.
• Industrial & Manufacturing: Ideal for mounting near large-scale machining centers or chemical storage areas where a high-volume agent is necessary.
• Maritime & Offshore: The essential mount for engine rooms and deck lockers on commercial vessels where USCG-approved large-capacity units are mandated.
• Warehouse & Logistics: Perfect for mounting on large-scale material handlers and reach-stackers.
• Class D Metal Safety: The preferred mounting solution for the Amerex B570 and B571 combustible metal extinguishers, which are frequently used in aerospace and automotive fabrication.

Compatible Amerex Models

The 864 bracket is the OEM-recommended mount for a massive array of large-format units:

• ABC Dry Chemical: 423, A411, A412, A413, 408, 415
• Water & Foam: 240, 250, 252, 254
• High-Flow Models: 581, 582, 580, 584, 564, 566, 567, 568, 569, 589, 591
• Class D (Metal): B570, B571
• Carbon Dioxide (CO2): 331, 332 (15 lb and 20 lb CO2)

To maintain NFPA 10, DOT, and OSHA compliance for high-mass extinguishers, follow these professional mounting guidelines:

• Grade 8 Hardware: Due to the extreme weight of 20 lb and 30 lb units, always use Grade 8 bolts with locking nuts. For vehicle mounting, a backing plate on the opposite side of the mounting surface is highly recommended to prevent "pull-through."
• Mounting Orientation: Large dry chemical extinguishers should be mounted vertically whenever possible. This prevents the chemical from settling against the valve seals, ensuring 100% agent discharge during an emergency.
• Strap Tensioning: The reinforced rubber strap has multiple mounting positions. Choose the hole that requires significant effort to close the latch; a loose strap will allow the heavy cylinder to "hammer" against the bracket, leading to structural failure.
• Ergonomics: Because of the 40–50 lb weight of these units, ensure they are mounted at a height where an operator can use their legs to lift the unit once released from the 864 bracket.

Will this fit a 10 lb fire extinguisher?
Generally, no. Most 10 lb extinguishers have a diameter of 5 inches to 6 inches. The Amerex 864 is specifically designed for larger cylinders starting at 6.5 inches. For 10 lb units, you should look at the Amerex 862 (4.25"–6.25") bracket.

How do I replace the reinforced strap?
The strap is secured to the bracket spine via a heavy-duty metal pin. By removing the retaining clip, you can slide out the old strap and install the Amerex 07802 replacement strap.

Is this bracket USCG approved?
Yes. For maritime use, large-capacity extinguishers are only "approved" if they are paired with a bracket specifically designed for marine/heavy vehicle use. The Amerex 864 meets these requirements, providing the necessary security for sea-going commercial vessels.
