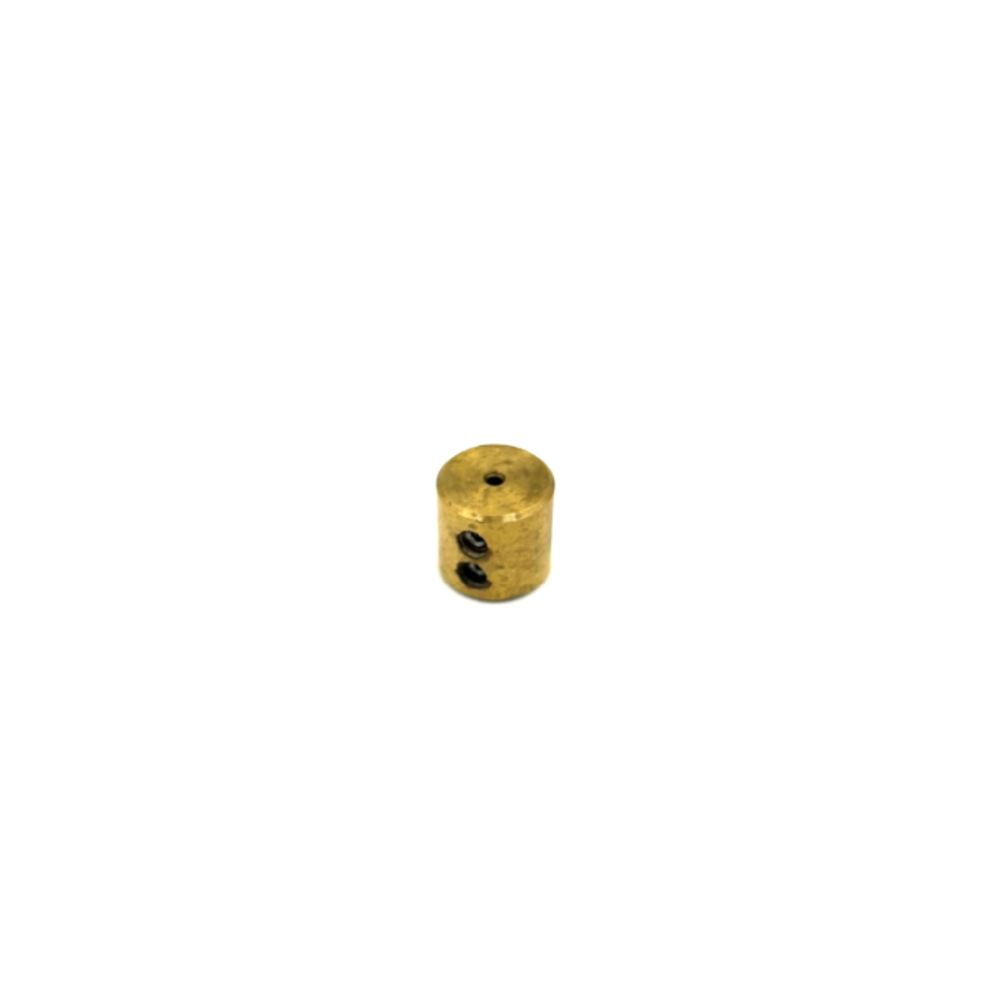

Amerex Conn Cable ASY T-Link 12859 - OEM

The Amerex 12859 T-Link Connector Cable Assembly is a critical component of the Amerex KP Restaurant Fire Suppression System. In plain terms: it's the terminal end of the detection cable network. The component that clamps onto the detection cable at the exit of the final detector bracket in the series, securing the cable end and completing the mechanical detection circuit. Without a properly installed T-Link, the detection cable network isn't properly anchored at its end point, which can affect cable tension throughout the entire detection run and compromise the system's ability to reliably activate when a fusible link melts.

The KP system's detection network works by holding the MRM or control module in the armed position using cable tension. The fusible links throughout the detection run hold the cable taut when one melts, the cable tension releases and the control module fires the system. The 12859 T-Link assembly at the cable terminus ensures the cable end is correctly secured so that the tension load is properly distributed across the entire detection network. Improper termination at the cable end creates a weak point where cable slippage can cause a false trip or prevent a real detection event from releasing cleanly.

This is an OEM Amerex component specified in the Amerex KP system installation documentation. Available through authorized Amerex distributors. During semi-annual NFPA 17A and NFPA 96 inspections, the technician verifies the T-Link connector is securely clamped to the cable, shows no corrosion or mechanical damage, and that cable tension at the terminus is correct. A loose or corroded T-Link connection is an inspection deficiency that must be corrected immediately. Document in the fire suppression system inspection record.

Install the 12859 T-Link at the terminus of the detection cable run per the Amerex KP system installation documentation. The clamp must engage the cable firmly at the correct position; refer to the installation manual for the correct cable termination procedure, including the required cable tail length and clamp torque. After installation, verify cable tension throughout the detection run per the KP system tension specifications. At every semi-annual inspection, check the T-Link clamp for security and corrosion. A loose clamp that allows the cable to slip changes the tension calibration of the entire detection network. Document in the fire suppression system inspection record.

What happens if the T-Link is loose or the cable slips through it?

If the cable slips through the 12859 T-Link terminus, the cable tension across the entire detection network drops, which can cause the MRM or control module to trip without an actual fire (nuisance discharge), or can change the cable tension enough that a real fusible link melt doesn't release the system as designed. Either scenario is a serious reliability problem. Re-clamp the cable per the installation specifications and re-verify tension throughout the detection run before returning the system to service.
