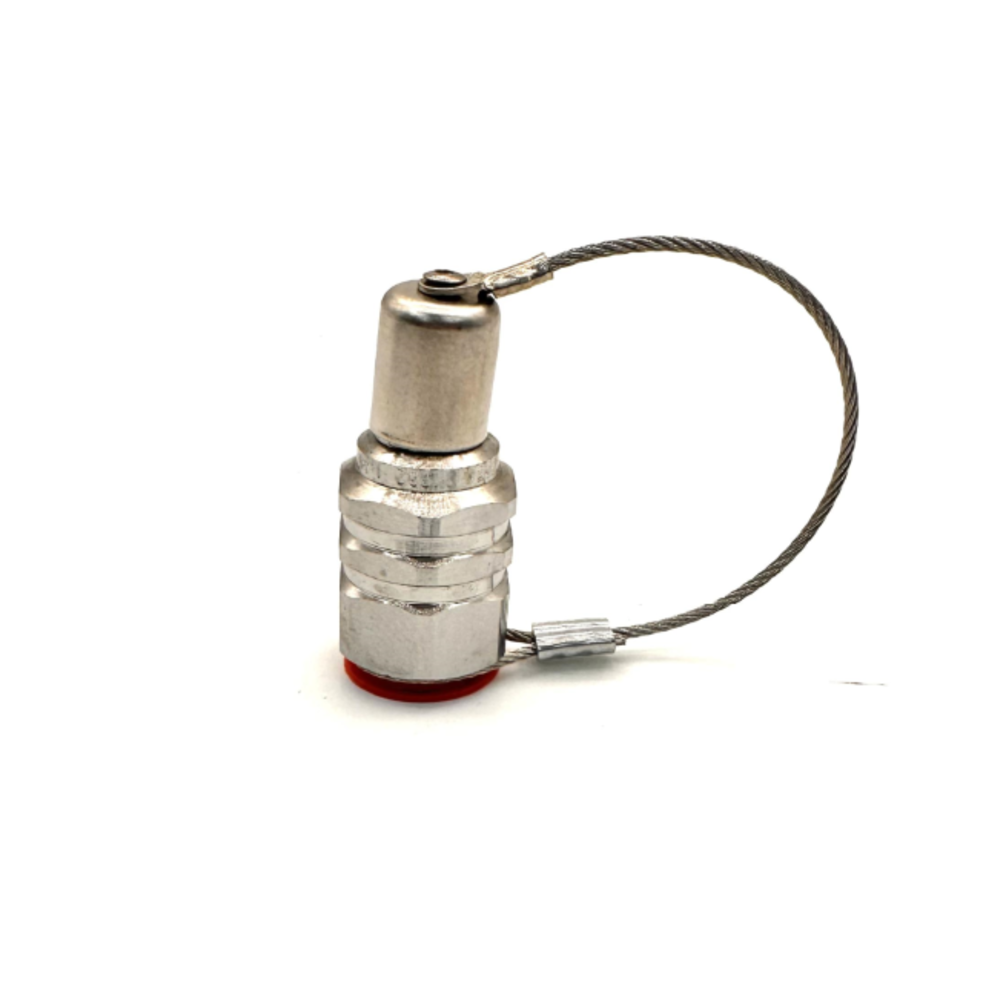

Amerex KP Appliance / Plenum 1X38 Nozzle, Single Item, OEM - 11982
Are you a fire protection company? Get wholesale pricing
Wholesale PricingRelated Documents
The Amerex KP 1x38 Appliance/Plenum Nozzle (P/N 11982) is the general appliance and plenum protection nozzle in the Amerex KP Restaurant Fire Suppression System, consuming 1 flow point per nozzle and covering the widest variety of appliances including plenums, wok stations, and various burner configurations. Identified by 2 tactile rings. One plenum nozzle per 10 feet of hood length is required by the KP design manual. For wok protection, compatible with wok diameters of 14 to 24 inches. Mounting height is 36 to 48 inches above the appliance surface for standard configurations. Includes the standard cap (P/N 12334). Compatible with swivel adapter P/N 16440. For full background on the Amerex KP nozzle family and system requirements, refer to the 2xR Nozzle product page (P/N 14178).
| Feature | Details |
|---|---|
| Manufacturer | Amerex Corporation |
| Part Number | 11982 |
| Nozzle Designation | 1x38 (Appliance / Plenum) |
| Flow Points | 1 |
| Tactile Identification | 2 Rings |
| Thread Size | 3/8 Inch NPT |
| Applications | Plenums, Wok Stations, Various Cooking Appliances and Burners |
| Plenum Coverage | One Nozzle Per 10 Feet of Hood Length |
| Wok Coverage | 14 to 24 Inch Diameter |
| Mounting Height | 36 to 48 Inches Above Appliance Surface (Standard) |
| Nozzle Cap Included | Standard Cap P/N 12334 |
| Swivel Adapter (Optional) | P/N 16440 |
| System | Amerex KP Restaurant Fire Suppression System |
| Certifications | UL Listed (UL 300), NFPA 17A and 96 Compliant |
| Lead Product Page | 2xR Range/Griddle Nozzle P/N 14178 |
