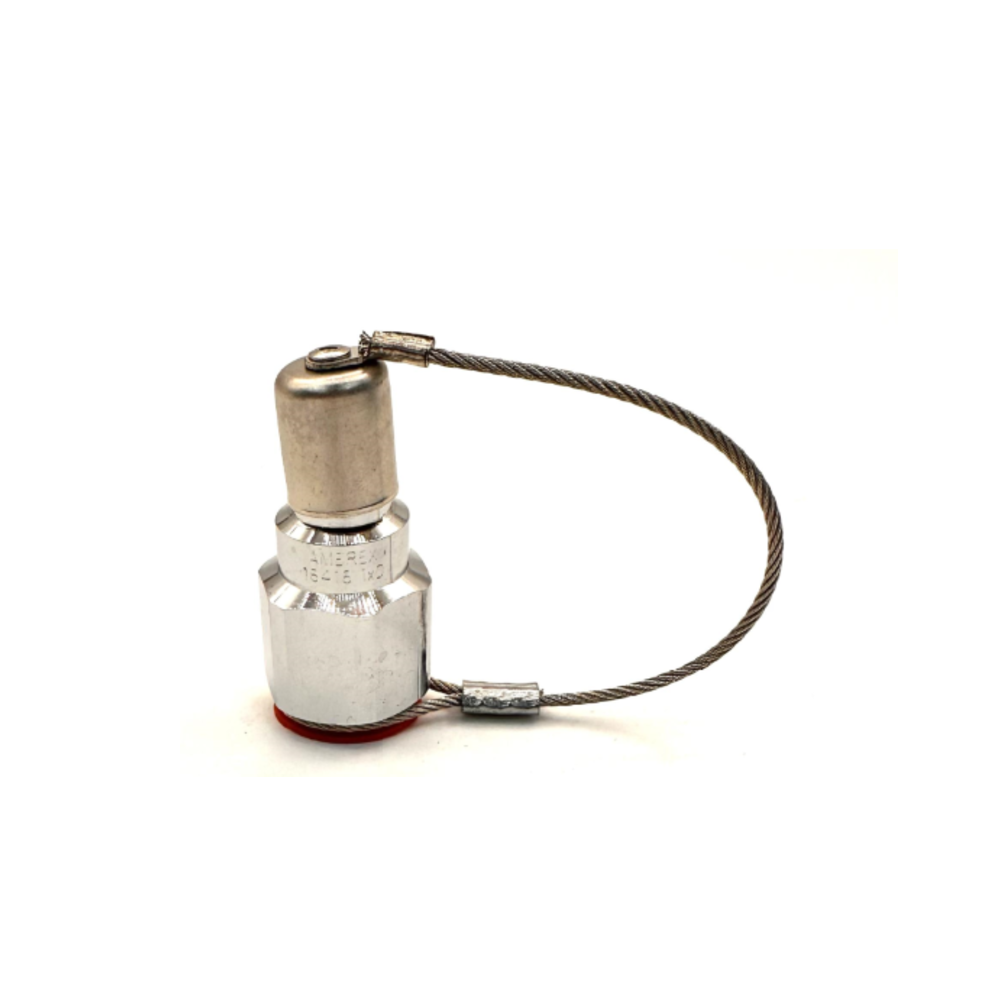

Amerex KP 1XD Duct Nozzle w/ Cap, OEM - 16416
Are you a fire protection company? Get wholesale pricing
Wholesale PricingRelated Documents
The Amerex KP 1xD Duct Nozzle (P/N 16416) is the dedicated exhaust duct protection nozzle in the Amerex KP Restaurant Fire Suppression System, consuming 1 flow point per nozzle. It is identified by the absence of tactile grooves or rings, which distinguishes it from all other nozzle types in the KP family by touch. A single 16416 nozzle covers ducts up to 50 perimeter inches or 16 inches in diameter; two 16416 nozzles can protect ducts up to 84 perimeter inches or 26 inches in diameter. The nozzle is mounted 2 to 8 inches into the duct opening and aimed at the center of the duct cross-section. Includes the standard cap (P/N 12334). Compatible with swivel adapter P/N 16440. For full background on the Amerex KP nozzle family and system requirements, refer to the 2xR Nozzle product page (P/N 14178).
| Feature | Details |
|---|---|
| Manufacturer | Amerex Corporation |
| Part Number | 16416 |
| Nozzle Designation | 1xD (Duct) |
| Flow Points | 1 |
| Tactile Identification | No Groove and No Rings |
| Thread Size | 3/8 Inch NPT |
| Application | Exhaust Ducts in Commercial Kitchen Hoods |
| Single Nozzle Duct Coverage | Up to 50 Perimeter Inches or 16 Inches Diameter |
| Two Nozzle Duct Coverage | Up to 84 Perimeter Inches or 26 Inches Diameter |
| Mounting Depth | 2 to 8 Inches Into Duct Opening, Aimed at Center of Cross-Section |
| Nozzle Cap Included | Standard Cap P/N 12334 |
| Swivel Adapter (Optional) | P/N 16440 |
| System | Amerex KP Restaurant Fire Suppression System |
| Certifications | UL Listed (UL 300), NFPA 17A and 96 Compliant |
| Lead Product Page | 2xR Range/Griddle Nozzle P/N 14178 |
