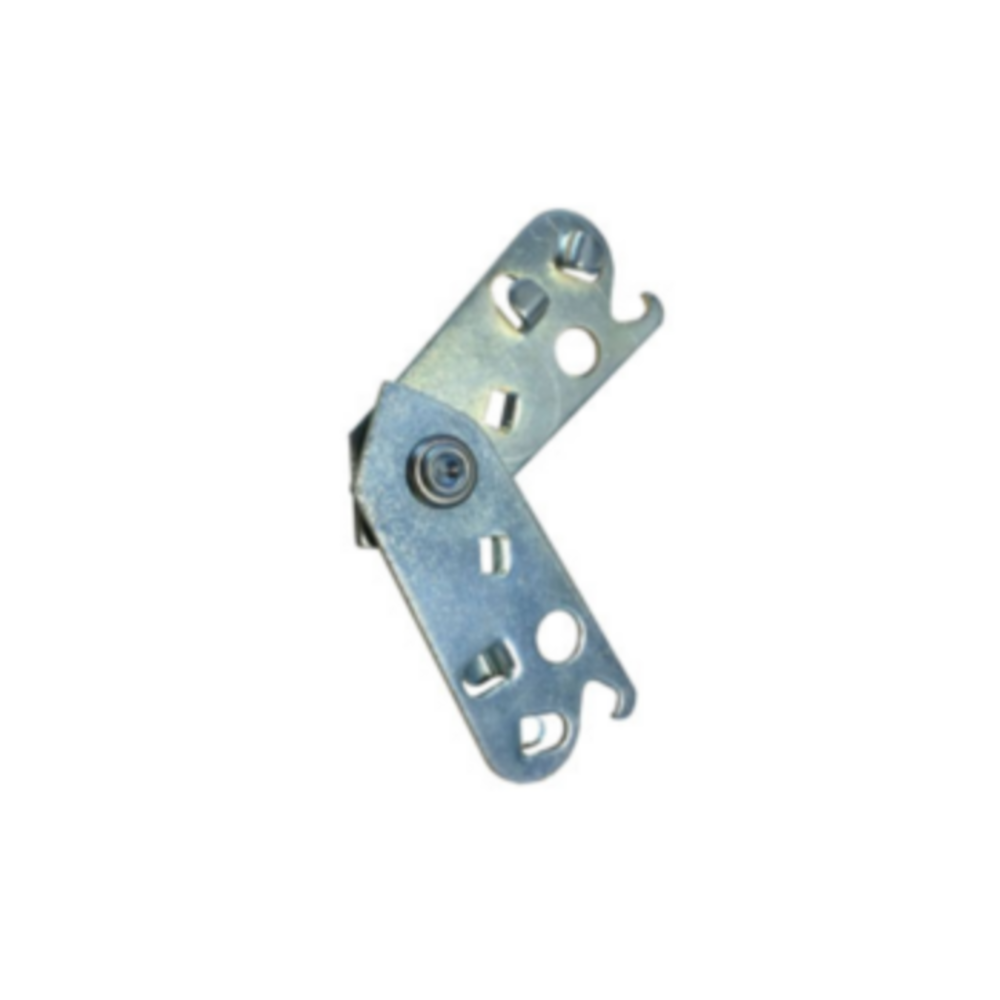

Amerex Scissor 13050 - OEM

The Amerex Scissor Link (Part No. 13050) is a high-precision mechanical linkage component engineered specifically for the detection lines of Amerex Kitchen Protection (KP) and Industrial (IS) fire suppression systems. In the sophisticated architecture of a fire safety network, the detection line is the sensory system. While fusible links act as thermal triggers, the 13050 scissor serves as the critical junction that translates a thermal event into mechanical action. By maintaining the fluid movement of the 1/16" stainless steel cable, the 13050 ensures that the drop in tension travels instantly to the Mechanical Release Module (MRM).

Manufactured to exacting OEM tolerances, the 13050 is designed to operate in the exhaust hood hot zone. It acts as a mechanical bridge within the detector bracket, holding the thermal link in a state of constant, calibrated tension. For fire protection stakeholders, the 13050 is a fail-safe guarantee that the kinetic energy preservation of the detection circuit is delivered with the exact force required to puncture the nitrogen activation cartridge.

Axial Tension Preservation

In a standard detection loop, the cable must maintain precise tension. The 13050 scissor is engineered to provide a low-friction pivot that keeps the cable centered. This prevents cable-drag, a phenomenon where friction against bracket walls can slow or stop the mechanical signal from reaching the control head.

Metallurgical Resilience

Commercial kitchens are chemically aggressive. The 13050 is constructed from a high-strength alloy designed to resist hydrogen embrittlement caused by heavy-duty degreasers. By maintaining a smooth surface, the scissor ensures the internal pivot point never seizes, even after years of static exposure to grease.

Instantaneous Drop Dynamics

When a link melts, the 13050 must respond with a snap-action movement. Its lightweight design minimizes inertial resistance, allowing the spring-loaded MRM to take up the slack faster than fire can spread into the exhaust duct, fulfilling UL 300 rapid-response requirements.

Ensuring UL 300 Compliance

Every component, down to the 13050 scissor, is part of the integrated UL listing. Replacing an OEM 13050 with a generic look-alike part can void the UL 300 listing, potentially leaving the facility owner liable during an insurance claim.

Facilitating Tool-Free Maintenance

The 13050 interfaces seamlessly with the Amerex detector bracket (P/N 15341). This standardized fit allows for link replacement during semi-annual maintenance without struggling with misaligned hardware, reducing labor-hours per hood.

Durability Against Mechanical Slop

Over years of tension, lower-quality linkage can deform at the pivot hole. This mechanical slop makes it difficult to achieve the correct set at the control head, leading to nuisance trouble alarms. The hardened steel of the OEM 13050 is engineered to resist this deformation.

• Exhaust Plenums: Serving as the thermal trigger point for grease fires occurring behind the filters.
• V-Bank Filtration Systems: Providing a stable mounting point for the detection cable in high-velocity airflows.
• Industrial Paint Spray Booths: Integrated into the Amerex IS system to monitor for flash fires in flammable vapor environments.
• High-Volume Fryer Batteries: Positioned directly over appliances where rapid thermal detection is mandatory for life safety.
• Retrofit Safety Upgrades: Replacing aged or non-OEM linkage hardware during 12-year overhauls to restore factory reliability.

Axial Alignment Verification

During installation, ensure the cable enters and exits the 13050 in a perfectly straight line. Any side-loading will create friction, a leading cause of delayed system activation.

Grease Accumulation Audit

While durable, caked grease can act as an adhesive. During every 6-month inspection, the scissor must be wiped clean. If the pivot is sluggish, the 13050 must be replaced.

Pivot Play Inspection

Check the central pivot pin for signs of wear. If the hole has ovaled due to constant high tension, the link will not provide a crisp release when the fusible link melts.

The Drop-Test Simulation

Technicians should manually release tension at the furthest scissor link to verify the mechanical signal travels through the entire pulley network to the MRM without binding.

Can I use the 13050 in an Ansul R-102 system?

No. The Amerex 13050 is specifically machined for the dimensions of Amerex brackets. Mixing brands is a fire code violation and can result in mechanical failure.

Does the 13050 need to be replaced every time a link melts?

Not necessarily. If there is no heat damage or deformation, it can technically be reused. However, most contractors replace the scissor as a precaution to ensure no hidden stress fractures exist.

Why is it called a "scissor" link?

The name refers to its two-piece, pivoting design. Like scissors, the two halves move around a central axis, allowing the link to open instantly when the thermal link, which normally holds the blades together, melts.
