Amerex Scissor 13050-P025 (25 Pack) - OEM

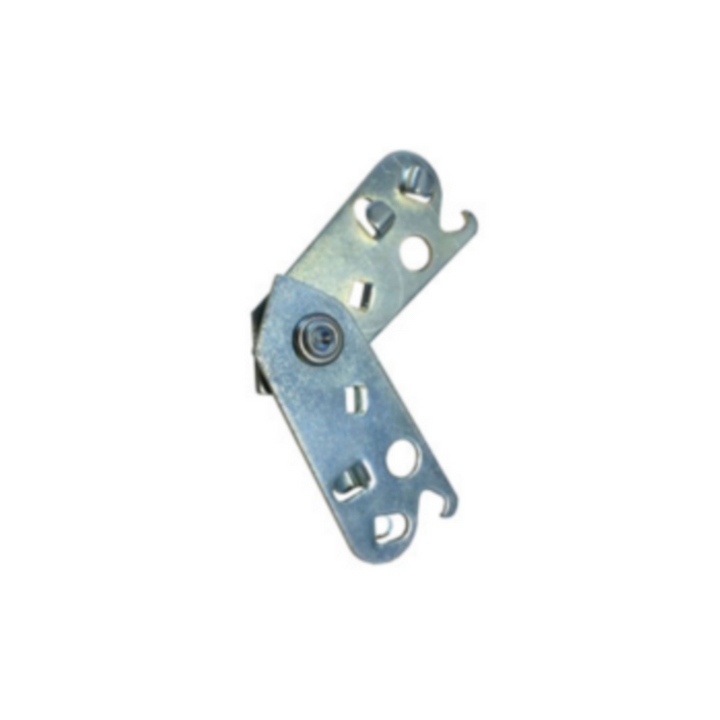

The Amerex 13050-P025 Scissor Linkage is the mechanical connector that holds the fusible link in place within the Amerex P/N 12508 detector bracket. The detection line is held under constant spring tension, and the scissor linkage maintains the fusible link in a precise orientation within that bracket. When the link reaches its rated yield temperature, it separates, releasing the stored cable tension that travels back to the control head and fires the suppression agent cylinder. The scissor geometry produces a clean, direct linear pull -- unlike standard S-hooks that can twist or jump in the conduit -- eliminating the short-stroking failures that are a primary cause of actuation delay. Sold in a 25-piece bulk pack for fleet-scale service operations.

Friction and Binding Prevention

In a grease-heavy commercial kitchen environment, carbonized grease can accumulate on mechanical linkages and increase friction to the point where the cable tension is partially absorbed before reaching the control head. The 13050-P025 is precision-machined with smooth radii and constructed from heavy-duty corrosion-resistant metal alloy to minimize friction losses and ensure the full spring force is available to actuate the system at the moment of link failure.

Semi-Annual Grease Buildup Audit

During every semi-annual inspection, the scissor linkage must be checked for carbonized grease caking. Hardened grease on the linkage increases friction and can delay or prevent actuation. Any linkage showing significant grease buildup, corrosion, or pitting must be replaced from the bulk pack.

12-Year Overhaul Protocol

During the mandated 12-year hydrostatic test of the agent cylinders, it is industry best practice to replace all mechanical linkages and fusible links. Replacing the 13050 links at this interval resets the mechanical detection system to factory-new performance and ensures compliance with NFPA 17A and NFPA 96.

Cable Tensioning and Routing

Ensure the cable is routed cleanly through the scissor assembly with no kinks or loops. The 13050-P025 is designed to center the tension and provide a balanced load across the bracket. Routing condition and linkage status should be documented in the fire safety service log at each inspection.

Mandatory Replacement After Fire

If the system has discharged due to a fire event, all 13050-P025 linkages must be replaced before the system is returned to service. Extreme heat may have compromised the metal's temper, and structural integrity of the detection line cannot be assumed after a fire.

Is this linkage compatible with Ansul R-102 systems?

No. The 13050-P025 is proprietary to the Amerex KP architecture. Its dimensions are specifically calibrated for the Amerex P/N 12508 detector bracket. Mixing Amerex and Ansul detection hardware is a major code violation under NFPA 17A.

When should I use the scissor linkage versus a standard S-hook?

Amerex KP systems are specifically designed to use the scissor linkage within the P/N 12508 bracket. The scissor geometry provides a much more stable and direct force transfer than a generic S-hook. Using a standard S-hook in an Amerex bracket risks the cable jumping or binding in the conduit, potentially causing a system actuation failure.

Are these linkages reusable after a fire?

No. After a fire discharge event, the extreme heat may have compromised the metal's temper and structural properties. All 13050-P025 linkages must be replaced before the system is returned to service -- reusing post-fire linkages is a compliance violation.
