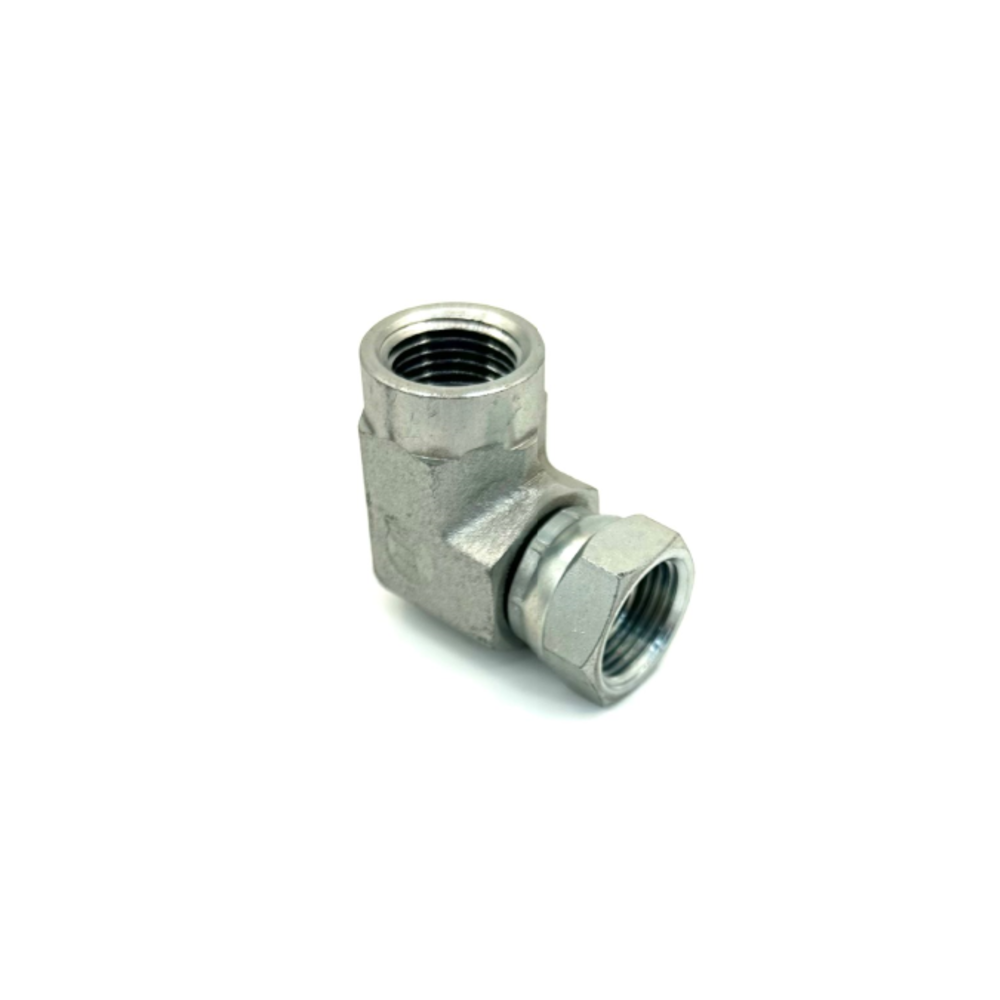

Amerex OEM Swivel Adaptor - 16440

The Amerex 16440 is an OEM swivel adaptor for Amerex KP kitchen fire suppression systems. A swivel adaptor allows a rigid pipe connection to rotate around its axis without twisting or stressing the connected tubing — in practical terms, it's the fitting that lets you make a secure, leak-free piping connection even when the tube or pipe coming into the fitting isn't perfectly aligned with the port it's connecting to. In commercial kitchen suppression system installations where piping must navigate tight spaces, odd angles, and fixed equipment, the swivel adaptor is an essential fitting that makes proper, straight-pull piping connections possible without forcing or bending the tubing.

Forced or stressed piping connections are one of the most common causes of long-term leaks in fire suppression system distribution piping. A connection that looks fine visually but has been installed under rotational tension will gradually work loose over time as temperature cycling in the kitchen environment causes the fitting to slowly back out. The 16440 swivel adaptor eliminates that rotational tension at the connection point, allowing the piping to be tightened to the correct torque specification without introducing stress into the tubing run.

This is an OEM Amerex part specified for KP kitchen fire suppression system installations. Using the correct OEM fitting hardware maintains the system's UL 300 listing. Available through authorized Amerex distributors. During semi-annual NFPA 17A and NFPA 96 inspections, the technician will check all piping connections — including swivel adaptors — for any evidence of leakage, corrosion, or loosening. Document condition in the fire suppression system inspection record.

Install the 16440 swivel adaptor per the Amerex KP system installation manual at piping connection points where rotational alignment between the pipe and the port cannot be guaranteed. Torque to the specification in the Amerex KP manual — over-torquing can damage the swivel mechanism and under-torquing leaves the connection loose. Verify the connection is leak-free after installation. At every semi-annual NFPA 17A and NFPA 96 inspection, check all swivel adaptor connections for any sign of leakage, corrosion, or loosening. A loose or leaking swivel adaptor must be tightened or replaced before signing off the inspection. Document condition in the fire suppression system inspection record.

Can I use a generic swivel fitting instead of the Amerex 16440?

No. The 16440 is dimensioned and rated for Amerex KP system piping specifications, including the operating pressure of the wet chemical agent distribution network. Generic swivel fittings from plumbing suppliers may not be rated for the same pressure, may use different thread specifications, or may not have the chemical compatibility required for wet chemical agent contact. Using non-OEM fittings voids the Amerex KP system's UL 300 listing.
