Amerex Vent Check 10173 - OEM

The Amerex 10173 Vent Check, also called a vent plug, is a safety valve designed for use in actuation networks that rely on nitrogen pressure, such as Amerex modular dry chemical and ICS suppression systems. In plain terms: after a fire suppression system discharges, residual nitrogen pressure can remain trapped in the actuation tubing network. The vent check is installed downstream of the pneumatic control head (10147) and automatically relieves this built-up residual pressure after system discharge, preventing the system from accidentally re-activating or remaining in a pressurized state that could cause unexpected actuation when a technician is working on the system post-discharge.

This is a safety component that protects both the system and the service technician. Without the vent check, residual nitrogen pressure in the actuation tubing after discharge could cause the pneumatic control head piston to remain in the actuated position or could cause a delayed secondary actuation event when pressure re-equalizes. The 10173's internal spring and nylon seal design allows pressure to vent safely after discharge while sealing the port during normal standby operation when the actuation network is at its rated nitrogen charge pressure.

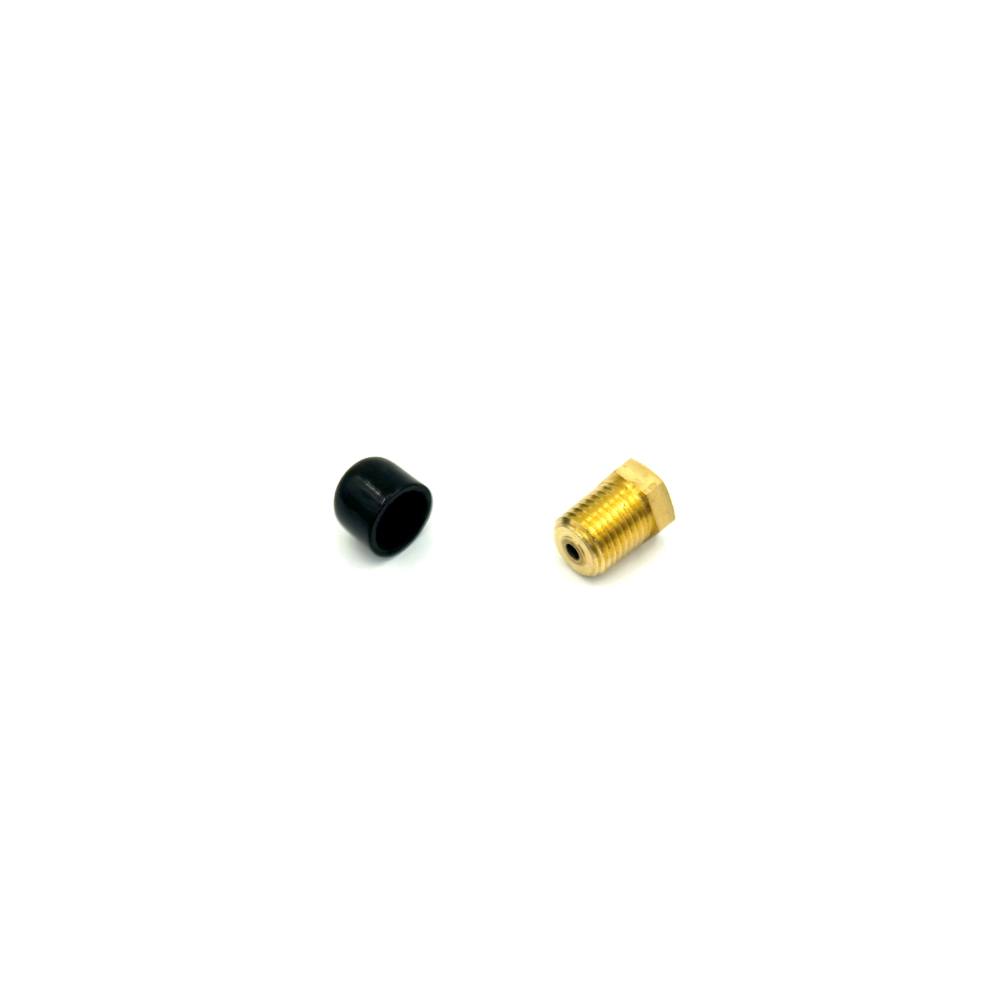

Constructed from machined brass with an internal spring and nylon components, the 10173 is built for durability in the industrial and commercial environments where Amerex IS and modular systems are deployed. Inspect at every semi-annual inspection — verify the vent check is present, undamaged, and the vent port is unobstructed. A missing or damaged vent check should be replaced immediately. Available through authorized Amerex distributors. Document condition in the fire suppression system inspection record.

Inspect the 10173 vent check at every semi-annual NFPA 17A inspection. Verify the vent port is unobstructed and the body shows no corrosion or physical damage. In industrial environments, the vent port can become blocked by dust, debris, or contamination. A blocked vent check cannot relieve residual pressure after discharge and defeats its safety purpose. Replace with a new 10173 if any blockage, corrosion, or damage is found. After any system discharge, verify the vent check functioned correctly by confirming no residual pressure remains in the actuation tubing after the discharge event. Document condition in the fire suppression system inspection record.

Why is a vent check needed if the actuation cartridge is replaced after discharge?

Even after the depleted nitrogen cartridge is removed, residual pressure can remain in the actuation tubing; nitrogen gas that was already in the tubing network downstream of the cartridge at the time of discharge. The 10173 vent check relieves this trapped pressure automatically, ensuring the actuation network is fully depressurized before the technician begins post-discharge service work. This is a technician safety feature as well as a system reliability feature.

Is the 10173 the same as the ANSUL R-102 vent plug (068800)?

No. The Amerex 10173 vent check is a pressure-relief safety valve for nitrogen actuation networks. It has an internal spring mechanism that automatically vents residual pressure. The ANSUL 068800 vent plug is a simple threaded cap that seals unused distribution pipe ports. They serve completely different functions and are not interchangeable.
