Ansul Bursting Disc Union Assembly 416970

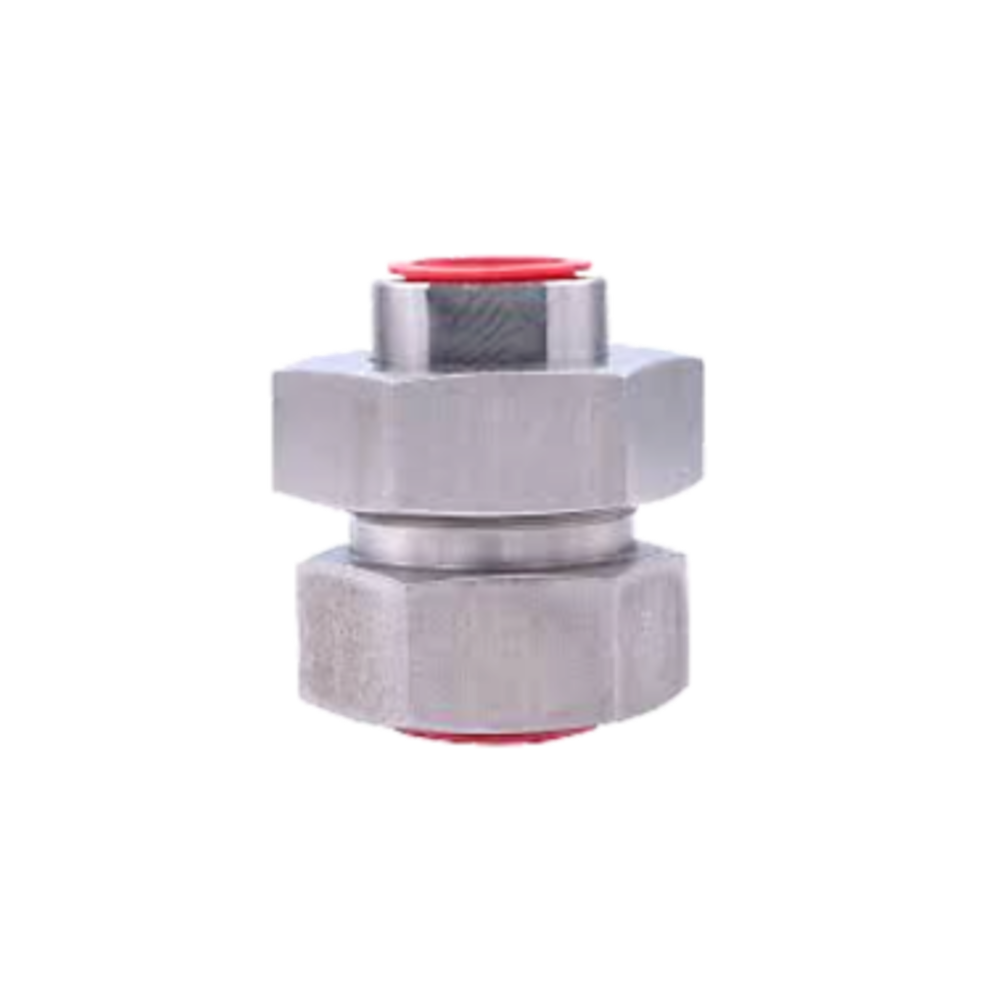

The Ansul 416970 is a bursting disc union assembly for ANSUL agent cylinders, housing the bursting disc within a union fitting that provides a secure connection to the discharge piping. The union assembly serves two functions simultaneously: it holds the bursting disc (417911) in its rated position within the cylinder discharge path, and it provides the threaded union connection that joins the cylinder outlet to the distribution piping. This combined design means the union assembly is the mechanical housing that must be inspected, maintained, and replaced in tandem with the bursting disc itself.

When a bursting disc is replaced after system discharge or during scheduled maintenance, the condition of the 416970 union assembly must also be assessed. Discharge forces, wet chemical agent residue, and years of pressure cycling can damage the union body threads, the disc seating surface, and the internal geometry that positions the disc at the correct orientation in the flow path. A damaged union assembly that incorrectly seats the bursting disc changes the disc's burst pressure characteristics — potentially causing premature rupture under normal standby conditions or failure to rupture at the correct pressure during an actual system discharge.

The 416970 is available through authorized ansul distributors as part of the ANSUL fire suppression system parts catalog for R-102 and compatible system maintenance. Inspect the union assembly at every semi-annual NFPA 17A and NFPA 96 service visit alongside the bursting disc. Replace the 416970 if any thread damage, corrosion, deformation of the disc seating surface, or other mechanical damage is found. Document all findings in the fire suppression system inspection record.

Inspect the 416970 union assembly at every semi-annual NFPA 17A and NFPA 96 service visit. When replacing the 417911 bursting disc, remove the union assembly and inspect the disc seating surface for corrosion, pitting, or deformation that could affect disc positioning. Inspect the union body threads for damage. Clean all seating surfaces before installing the new bursting disc and reassembling the union. Replace the entire 416970 if any seating surface damage or thread damage is found — a compromised union housing changes the disc's burst characteristics and must not be returned to service. Document union assembly inspection and replacement in the fire suppression system inspection record.

Is the 417911 bursting disc included with the 416970 union assembly?

No. The 416970 union assembly and the 417911 bursting disc are sold separately. When servicing the bursting disc assembly, order both the 416970 (union housing) and the 417911 (replacement disc) to ensure a complete service if the union body is also found to be damaged. Always inspect the union assembly every time the disc is replaced — the two components work together as a system and must both be in serviceable condition.

What causes union assembly damage in ANSUL systems?

The most common causes of 416970 union assembly damage are discharge events (which subject the union to sudden high-pressure forces), wet chemical agent residue corrosion on the disc seating surface, and physical impact from tools during service. In high-frequency service environments, the union assembly threads can wear from repeated assembly and disassembly cycles. Replace proactively at major service intervals if the thread engagement shows any looseness or galling.
