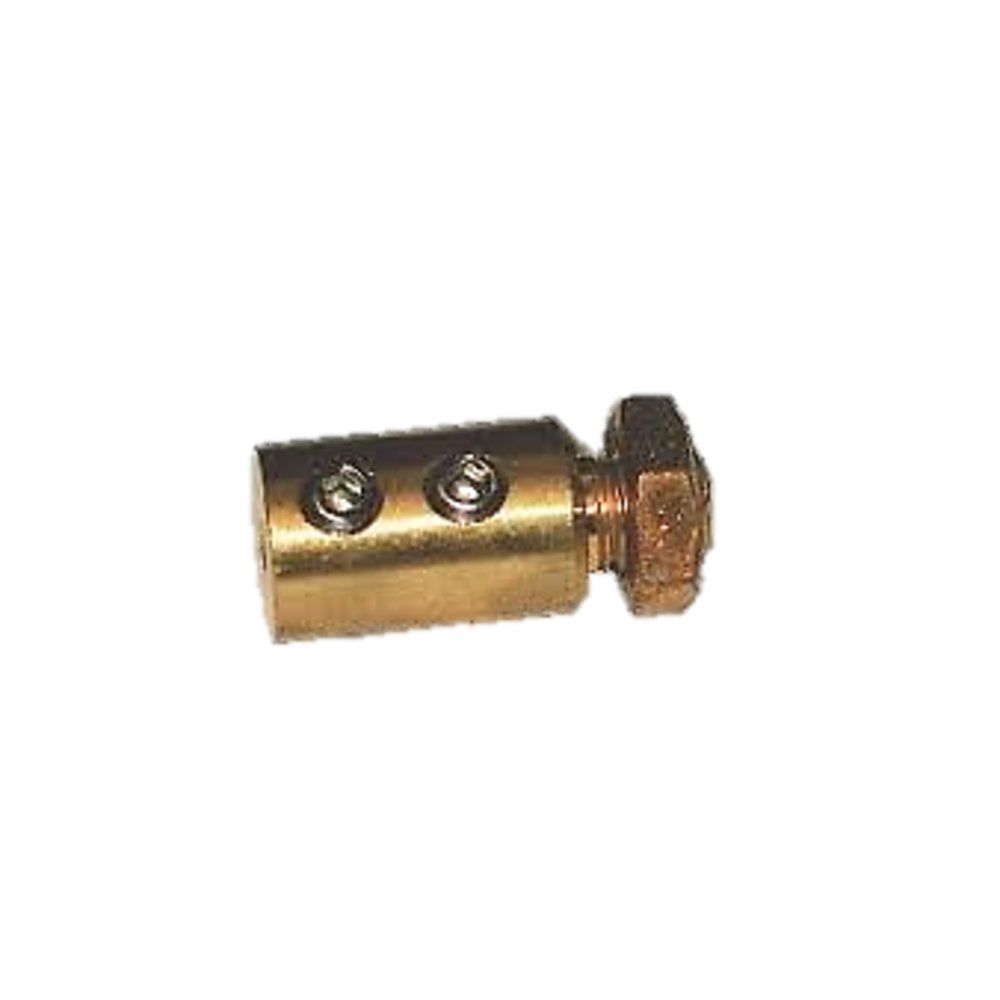

Ansul Cable Lug Assembly Package - 078942

The Ansul 078942 is an OEM cable lug assembly package for ANSUL mechanical release systems, providing secure termination points for actuation cables throughout the detection and release network. The package includes lugs and all required hardware for proper cable installation and tensioning. Cable lugs are the mechanical fasteners that crimp onto the actuation cable ends, forming the secure cable-to-component connections at pull stations, fusible link hangers, and the Automan control head. A properly crimped cable lug maintains the precise cable tension required for reliable system actuation — too much tension causes nuisance trips, too little allows slack that delays system activation.

The ANSUL R-102 mechanical detection and release system relies on the integrity of every cable connection throughout the network. The 078942 cable lug assembly ensures all termination points use OEM-specified hardware that is dimensionally matched to ANSUL actuation cable dimensions and Automan component connection specifications. Using non-OEM cable lugs risks improper crimps that can pull out under detection line tension or fail to maintain the correct tension calibration over the system's service life.

For fire protection contractors completing new ANSUL R-102 installations or replacing detection cable components during service, the 078942 cable lug package provides the complete termination hardware needed for a full system cable installation. Available through authorized ansul distributors as part of the ANSUL R-102 mechanical release system components catalog. Inspect all cable lug connections at every semi-annual NFPA 17A and NFPA 96 inspection — verify no lugs have pulled out, corroded, or allowed cable slippage. Document in the fire suppression system inspection record.

Cable Lug Crimping

Use the correct crimping tool specified by ANSUL for the 078942 cable lugs — improper crimping tools produce under- or over-crimped lugs that fail to maintain cable tension. After crimping, verify the cable does not pull out of the lug under the system's rated detection line tension. Follow the tensioning procedure in the ANSUL R-102 system manual for each connection point in the detection network.

Semi-Annual Inspection

Inspect all 078942 cable lug connections at every semi-annual NFPA 17A and NFPA 96 inspection. Attempt to pull each cable at the lug connection to verify secure crimp engagement. Check for corrosion on the lug body and at the cable entry point — corrosion at the cable entry is a common cause of cable slippage that reduces detection line tension below the system's rated value. Replace any lug showing corrosion or insufficient cable retention with new hardware from the 078942 package and re-tension per the ANSUL R-102 system manual.

Can I use generic cable lugs from a hardware store?

No. The 078942 is dimensionally matched to ANSUL actuation cable diameters and Automan component connection specifications. Generic cable lugs may not be the correct inner diameter for ANSUL actuation cable, resulting in improper crimps that pull out under detection tension. Using non-OEM cable termination hardware voids the ANSUL R-102 system's UL 300 listing. Source only through authorized ansul distributors.

How many cable lugs does a typical R-102 installation require?

The number of cable lugs depends on the R-102 system configuration — specifically the number of cable termination points at fusible link hangers, corner pulleys, and the Automan control head. Review the ANSUL R-102 system as-built drawings to count all termination points requiring 078942 lugs. Stock sufficient packages for the complete installation plus spares for future service replacement.
