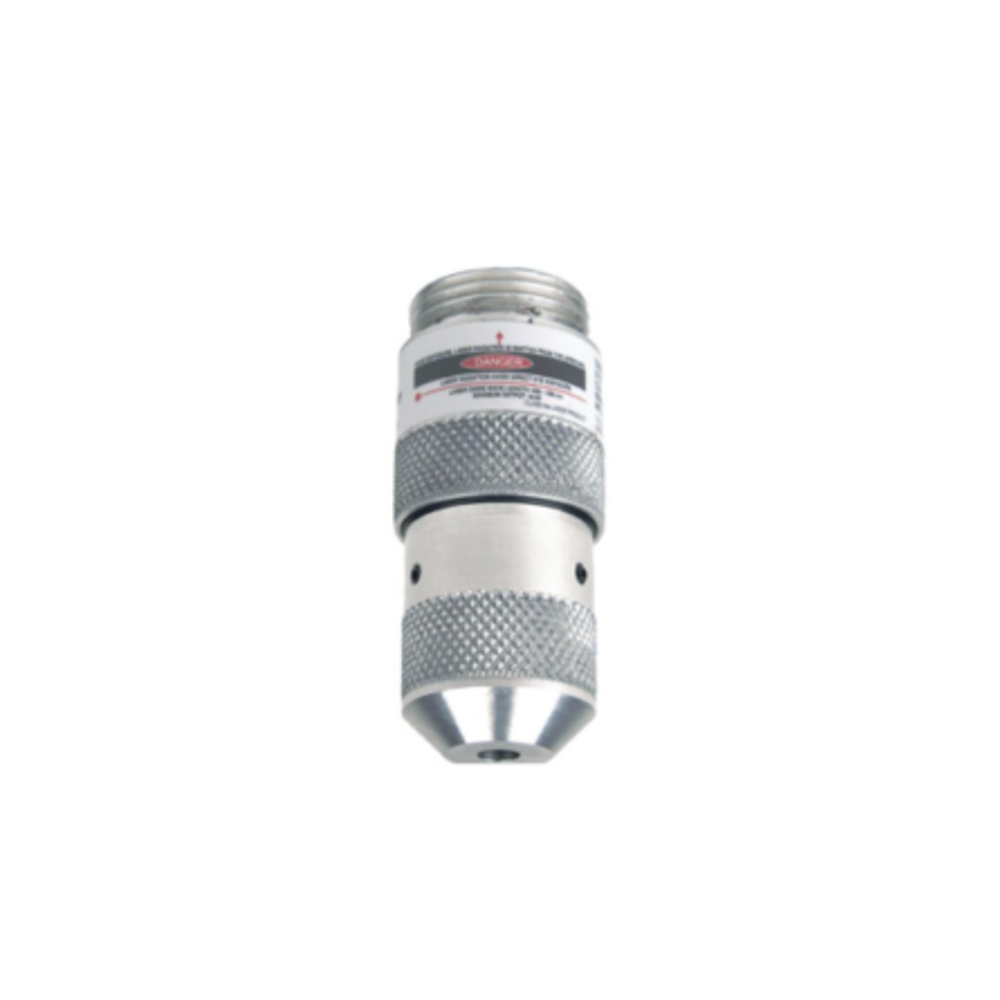

Ansul Laser Nozzle Aiming Device with Adapter 439877

The Ansul Laser Nozzle Aiming Device with Adapter (439877) is a professional-grade calibration tool engineered for the precise alignment of discharge nozzles in Ansul R-102 and PIRANHA fire suppression systems. In the high-stakes environment of a commercial kitchen, the success of a suppression event is determined by fractions of an inch. The 439877 allows technicians to visualize the exact strike point of the wet chemical agent by projecting a concentrated laser beam directly from the nozzle orifice to the protected appliance.

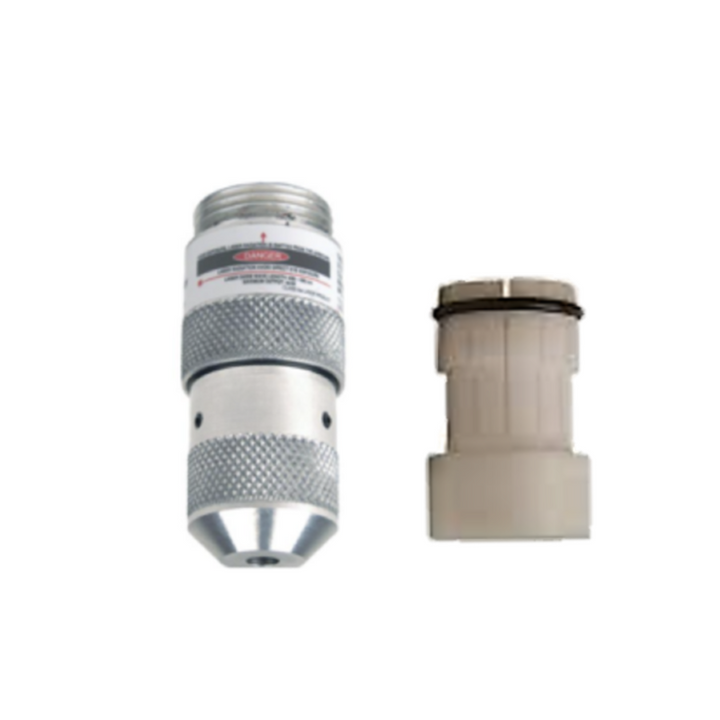

This kit includes the updated adapter specifically designed to interface with new-style Ansul and Piranha nozzles. By replacing guesswork with laser-guided precision, the 439877 ensures every nozzle is calibrated to its specific Nozzle Aiming Point (NAP). For fire protection companies, this tool is the ultimate safeguard against nuisance failures, situations where a system discharges correctly but fails to extinguish a blaze because the agent overshot the target.

Nozzle Aiming Point (NAP) Geometry

Every appliance in a UL 300 listed system has a designated NAP. For example, a deep fryer might require the nozzle to be aimed exactly 2 inches from the back edge of the fry pot. The 439877 projects a high-visibility dot that allows the technician to verify this measurement under the bright lights of a kitchen exhaust hood.

Mitigating Parallax Error

When a technician looks at a nozzle from below, their perspective is skewed. This parallax error often leads to nozzles being tightened at an angle that is slightly off-center. Because the 439877 clamps directly to the nozzle body, it eliminates perspective bias, ensuring the discharge path is perfectly linear.

Dual-Agent Synchronization

The PIRANHA system relies on a specific sequence of wet chemical followed by water. Accurate aiming is critical here to ensure the water-mist stage properly interacts with the chemical foam. The 439877 ensures both agent paths are synchronized for maximum cooling effect.

UL 300 Listing Continuity

If a post-fire investigation reveals that a nozzle was misaligned, the installer can be held liable for property damage. The 439877 provides the documentation needed to prove the system met factory specifications.

Increased Efficiency for Fleet Operations

The 439877 significantly reduces the time spent on nozzle adjustments. A technician can verify the dot, tighten the fitting, and move to the next appliance in seconds, increasing the number of compliant fire inspections performed per day.

Stability for New-Style Hardware

The included adapter is machined to match the contours of modern Ansul nozzles. Unlike generic lasers, this OEM calibration tool prevents wiggling during the aiming process, ensuring the dot is representative of the actual agent discharge path.

• High-Volume Fryer Batteries: Ensuring the agent is directed into the center of the reservoir to maximize the saponification effect.
• Charbroilers: Accurately aiming through the heavy thermal columns created by open-flame cooking equipment.
• Wok Ranges: Where the unique shape of the cooking vessel requires a precise, targeted strike point.
• Island Hood Configurations: Protecting double-sided cooking lines where nozzles must be aimed across a wider field of view.
• Institutional Cafeterias: Maintaining the rigorous safety standards required for hospital and school fire safety inspections.

Calibration Verification

Technicians should periodically verify the laser's accuracy against a known level surface. If the tool is dropped, the internal diode may shift, resulting in a false-positive alignment.

Battery Lifecycle Management

A weak battery can cause the laser dot to dim. Always carry spare batteries during semi-annual system inspections to maintain a crisp dot.

Lens Cleanliness

Grease and smoke can film over the laser lens. The tool should be wiped with a microfiber cloth to maintain a pinpoint dot of light.

Final Check After Tightening

Always re-verify the aim after the nozzle compression fitting is fully tightened. The act of tightening can occasionally torque the nozzle out of its verified position.

Do I really need a laser to aim nozzles?

In many jurisdictions, the Authority Having Jurisdiction (AHJ) or insurance underwriters require verification of nozzle aiming. Using the 439877 is the most professional way to prove compliance with restaurant fire codes.

Is this tool compatible with older Ansul nozzles?

The 439877 includes an adapter for new-style nozzles. For legacy systems, you may need to verify the nozzle body diameter, although the clamp design is versatile for most standard 1/2" NPT nozzle bodies.

Can I use this on a Pyro-Chem system?

While both use discharge nozzles, the 439877 is calibrated for Ansul hardware. For Kitchen Knight II systems, it is best practice to use the specific device recommended in the Pyro-Chem technical manual to ensure the adapter fits correctly.
