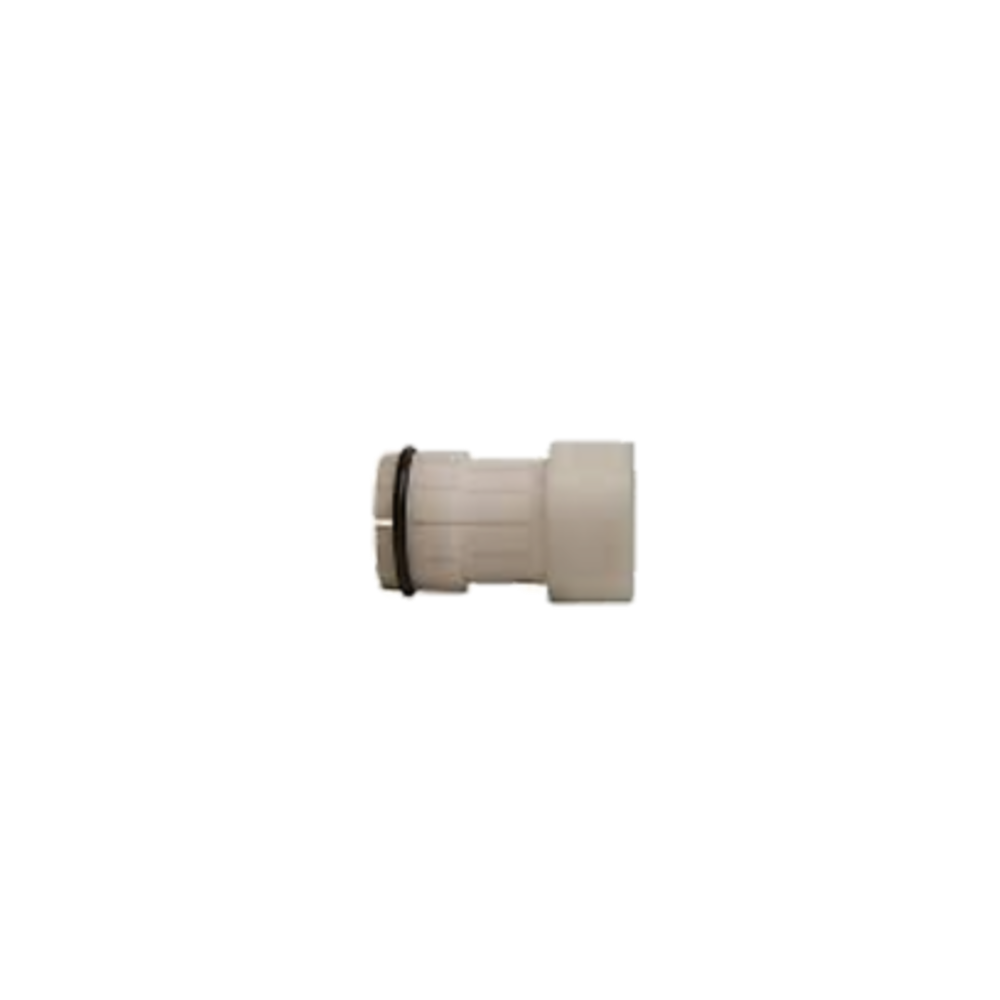

Ansul Laser Pointer Adapter 439876

The Ansul 439876 Laser Pointer Adapter is the updated aiming device adapter for use with the newer style nozzles on ANSUL R-102 restaurant fire suppression systems. It allows a laser aiming tool to mount correctly to current-generation R-102 nozzle bodies, enabling technicians to quickly and precisely align nozzle discharge points to the correct cooking surface impact location during installation or maintenance. Without the correct adapter, the laser aiming tool cannot properly seat on newer nozzle styles, making the 439876 an essential companion to any ANSUL R-102 laser aiming procedure.

Correct nozzle aim is one of the most critical aspects of ANSUL R-102 UL 300 compliance. Every nozzle must be precisely aimed at the specific hazard area it is designed to protect per the ansul r-102 nozzle chart specifications for each appliance type. The 439876 adapter bridges the compatibility gap between the laser aiming tool and the new-style nozzle geometry — ensuring the laser projects the correct discharge impact point so technicians can confirm UL 300 compliant coverage before locking the nozzle in position. The 439876 updates legacy aiming tool setups for use with modern ANSUL R-102 nozzle profiles.

Available through authorized ansul distributors. The 439876 should be part of every ANSUL R-102 installation and commissioning toolkit. For fire protection contractors managing ANSUL R-102 system installations and re-commissioning projects, having both the laser aiming tool and the correct 439876 adapter ensures accurate, documented nozzle aim verification that protects against UL 300 compliance failures during AHJ inspection. The ansul nozzle chart and ANSUL R-102 system documentation specify the required aim points for each appliance type that the 439876 adapter enables technicians to verify precisely.

Use the 439876 adapter with the ANSUL-compatible laser aiming tool during new R-102 system installation and after any nozzle position adjustment or replacement. Mount the adapter to the nozzle body, attach the laser tool, and project the aim point onto the cooking surface below. Verify the laser impact point falls within the target area specified in the ansul r-102 nozzle chart for the protected appliance before tightening the nozzle locknut. After any service event that disturbs nozzle positions, re-verify aim using the 439876 before returning the system to service. Nozzle aim verification using the correct adapter should be documented in the fire suppression system installation and commissioning record.

Is the 439876 compatible with older ANSUL R-102 nozzle styles?

The 439876 is the updated adapter for new-style R-102 nozzles. Older R-102 nozzle styles may require a different adapter. Verify compatibility with your specific nozzle generation using the ANSUL R-102 documentation or by consulting authorized ansul distributors before use. Using an incompatible adapter produces an incorrect laser aim reference that could result in improperly aimed nozzles passing a visual inspection while actually being out of UL 300 compliant aim.

Does the laser aiming tool come with the 439876?

No. The 439876 is the adapter only — the laser aiming tool is a separate item. The 439876 allows the laser tool to correctly interface with new-style nozzle geometry. Verify your laser aiming tool is compatible with the 439876 adapter before use. Authorized ansul distributors can confirm the correct laser tool and adapter combination for your specific ANSUL R-102 nozzle type.
