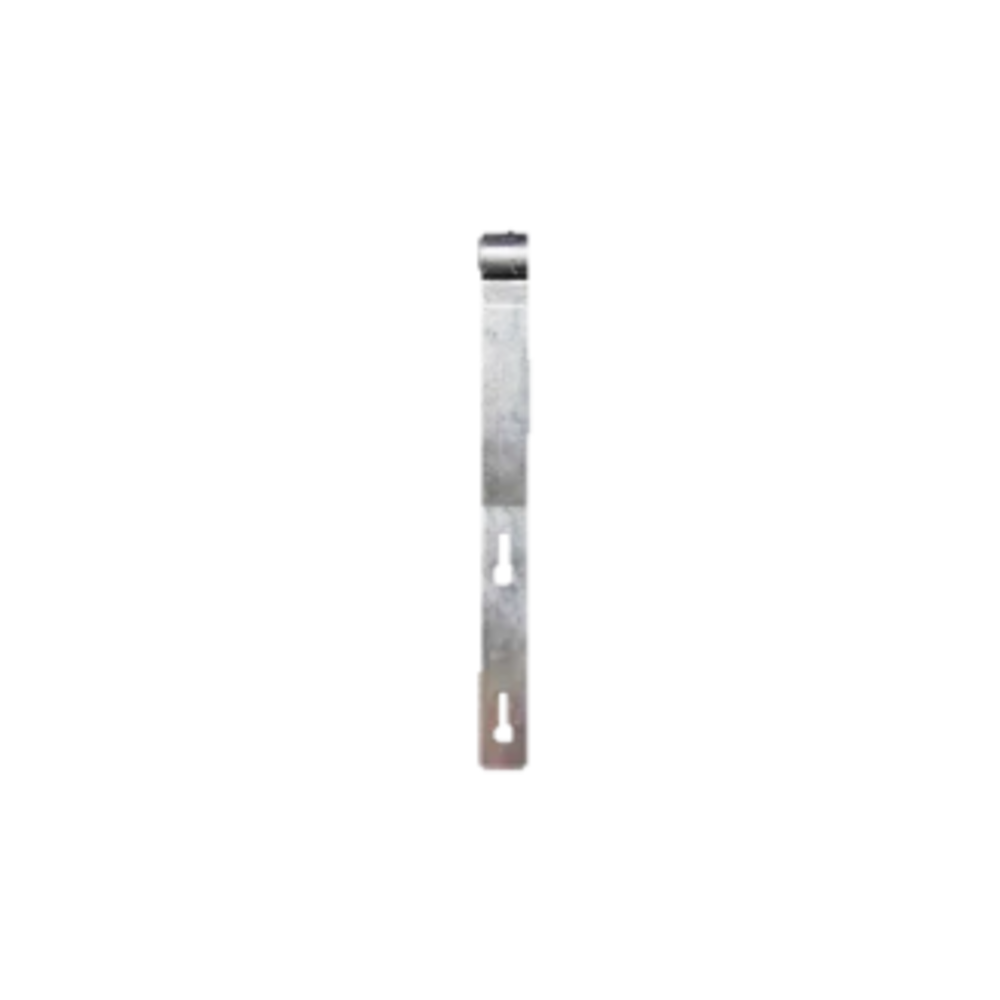

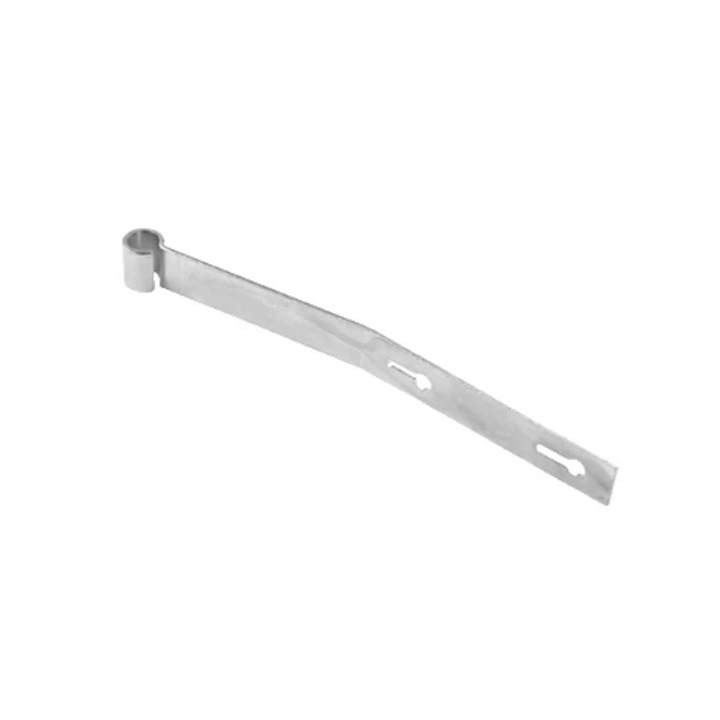

Ansul Lock Bar - 14985

The Ansul Lock Bar (14985) is a precision-engineered structural component designed specifically for the ANSUL AUTOMAN mechanical release assembly. In the hierarchy of fire suppression, the Automan serves as the Command Center. It is the mechanical brain that translates a detection event into a high-pressure agent discharge. The 14985 Lock Bar is the critical internal anchor that secures the release mechanism's internal components in their cocked position. It ensures the potential energy stored in the system's springs and nitrogen cartridges is held in check until the precise moment of activation.

Manufactured from high-tensile, corrosion-resistant alloy, this lock bar is built to meet the rigorous OEM standards required for Ansul R-102 and PIRANHA commercial kitchen systems. It is designed to withstand persistent mechanical tension and the grease-laden atmospheres of professional cooking lines. For fire protection professionals, the 14985 is not just a bracket. It is the fail-safe component that prevents nuisance trips and accidental system discharges.

The Engineering of Activation: Mechanical Stability and Load Distribution

Potential Energy Management

The Automan mechanism relies on a heavy-duty spring-loaded lever that, when released, punctures a nitrogen cartridge. The 14985 Lock Bar provides the mechanical interface that keeps this lever retracted. It must handle constant shear stress without deforming, ensuring the system remains stable.

Precision Alignment for Detection Pulleys

The lock bar helps maintain the axial alignment of the internal detection pulleys and the cable tensioner. This is vital because the system activates based on a tension drop in the detection line. Even a slight shift due to a non-OEM lock bar can cause the system to fail during a fire event.

Corrosion Resistance in Harsh Environments

Commercial kitchens are corrosive. The 14985 is finished with a specialized coating to resist aerosolized grease and exhaust hood cleaning chemicals. This ensures the bar does not seize in place, allowing for the instantaneous movement required for fire suppression triggering.

• Restaurant Fire Suppression: Securing the Automan heads that protect massive charbroiler lines and fryer batteries.
• Institutional Food Service: Ensuring code-compliant installation in school cafeterias where safety audits are rigorous.
• Industrial Paint Spray Booths: Used in Automan releases for dry chemical systems where the lock bar must resist chemical vapors.
• Marine Fire Protection: Protecting galley kitchens on commercial vessels where the bar must withstand salt-air exposure.
• System Retrofits: Replacing worn internal components to bring older enclosures back to factory-new performance levels.

To maintain NFPA 17 and 17A compliance, the handling of the 14985 Lock Bar must follow strict professional protocols:

• Certified Service Only: This component should only be handled by a licensed fire protection technician. Attempting to service the Automan without training can result in serious injury due to high-tension springs.
• Visual Inspection for Wear: During the mandatory 6-month inspection, look for pitting or rust on the contact surfaces. If the bar shows signs of thinning, it must be replaced immediately to prevent system activation failure.
• Proper Lubrication: Contact points should be lightly lubricated according to the Ansul technical manual. Using the wrong grease can attract dust and eventually gum up the suppression mechanism.
• Verification of Tension: After seating the lock bar, technicians must verify the tension on the detection line. The lock bar must be perfectly stable under this load to prevent nuisance discharges.

What happens if the lock bar is installed incorrectly?
An incorrectly installed bar can cause the system to fail to discharge or discharge accidentally. Both scenarios represent a massive safety liability for the business owner and can result in a fire marshal red tag.

Can this bar be cleaned and reused after a fire?
Following a fire event, the bar must be inspected. If the high heat has compromised the metallurgical properties (tempering) of the steel, it must be replaced with a new 14985 part to ensure structural integrity.

Is this part compatible with the Electric Automan?
The 14985 is primarily for the Mechanical Automan release. If you are servicing an electric release, you should verify the requirements in the fire suppression technical manual.
