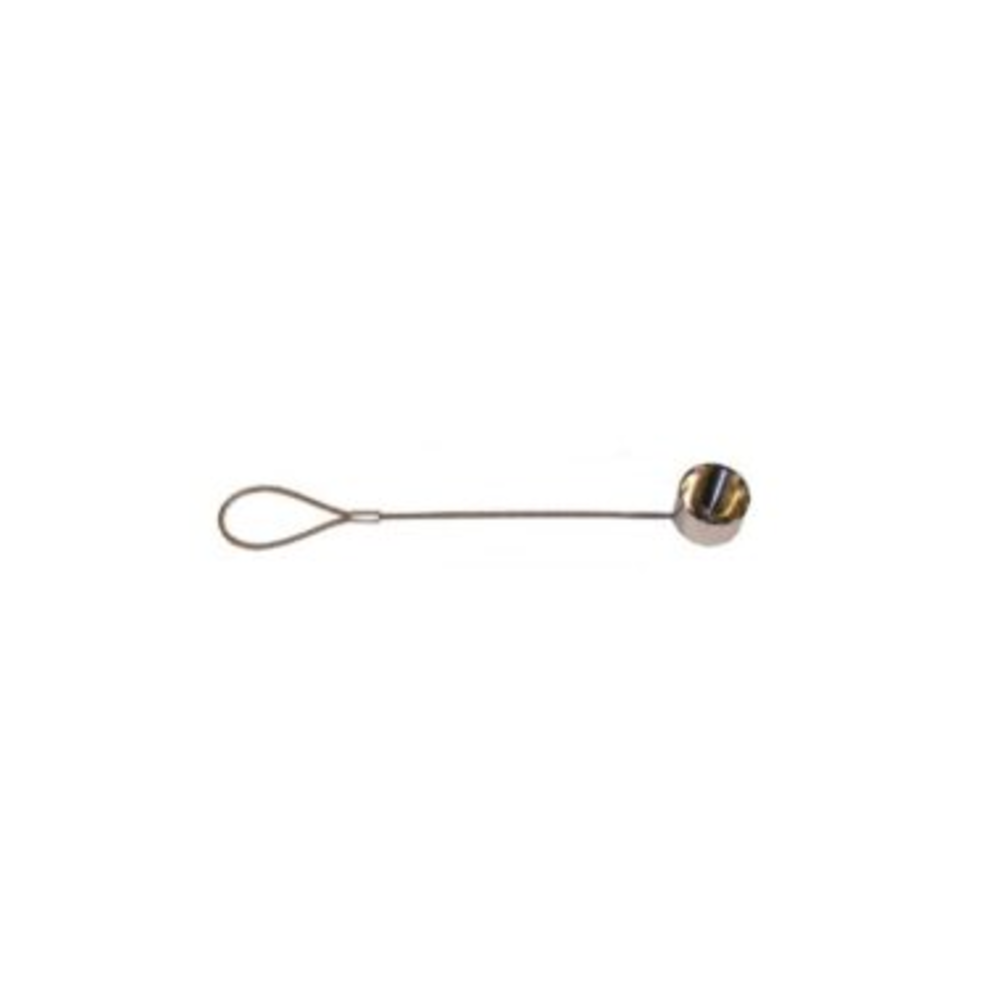

Ansul Metal Caps OEM (10 Pack) 439861

The Ansul Metal Blow-Off Cap is perhaps the most underestimated yet essential component of the Ansul R-102 and Piranha restaurant fire suppression systems. This 10-pack of genuine Ansul stainless steel caps is designed to protect the discharge nozzles—the "business end" of your fire system—from the harsh, grease-laden environment of a commercial kitchen.

In a high-volume cooking environment, nozzles are positioned directly above deep fryers, ranges, and charbroilers. Without a protective barrier, these nozzles would quickly become clogged with airborne grease, carbonized food particles, and dust. The Ansul metal cap acts as a precision-engineered seal, keeping the nozzle orifice clean and clear so that, in the event of a fire, the suppression agent can flow unimpeded. If the orifice is even partially blocked, the fire suppression system's spray pattern is compromised, which can lead to a failure to extinguish the flames before they reach the exhaust ductwork.

The Physics of the "Blow-Off" Mechanism

The term "Blow-Off" isn't just a name; it describes a specific mechanical function involving fluid dynamics and pressure thresholds. The Ansul 439255 metal cap is designed with a calibrated friction fit. This allows it to stay securely in place during years of daily kitchen activity, vibrations from exhaust fans, and high-pressure hood washings, yet detach instantly under the specific hydraulic pressure of the ANSULEX Low pH Liquid Agent.

• Instant Actuation: When the fire system is triggered, the nitrogen-driven pressure of the liquid agent reaches the nozzle. The force is calculated to "blow" the metal cap off the nozzle tip, allowing the agent to atomize into the fine mist required to smother a grease fire through saponification.
• Stainless Steel Durability: Unlike cheaper rubber alternatives, these metal caps are made of high-grade stainless steel. This makes them resistant to the extreme heat generated by heavy-duty appliances and ensures they won't melt or "bake" onto the nozzle during the initial seconds of a flash fire.
• Tether Integration: Each cap in this 10-pack is designed to be used with a stainless steel wire tether (sold separately). This ensures that when the cap blows off, it remains attached to the nozzle assembly rather than becoming a projectile or falling into a deep fryer, where it could cause a splashing hazard or contaminate food.

Why Metal Caps are Required for High-Heat Zones

While Ansul offers both rubber and metal caps, the metal blow-off cap is specifically recommended—and often required by local fire marshals—for "high-heat" zones within the kitchen.

• Thermal Expansion Resistance: In environments like charbroilers and upright broilers, radiant temperatures can exceed 1000°F. Rubber caps can become brittle or "vulcanize" (fuse) to the nozzle in these environments, potentially requiring more pressure to blow off than the system provides.
• Chemical Resistance: Commercial kitchens use aggressive degreasers during nightly cleanings. Stainless steel is impervious to these chemicals, whereas rubber can swell or degrade, losing its grip on the nozzle and falling off prematurely.
• Long-Term Integrity: Metal caps maintain their structural diameter regardless of temperature fluctuations, ensuring the seal remains "air-tight" against grease vapors for the duration of the 6-month service cycle.

The "Hidden" Danger of Grease Clogs and Nozzle Aim

If a nozzle remains uncapped for even a few weeks, grease vapors condense inside the cool pipe. Over time, this grease hardens into a "plug." During a fire, the system may have enough pressure to blow the grease out, but the spray pattern will be distorted.

Fire suppression relies on Nozzle Geometry. Each nozzle is aimed at a specific angle to cover a specific appliance area (like the "V" of a fryer). A distorted spray pattern cannot effectively cover the "hazard area," leading to fire spread and potentially letting flames enter the exhaust ductwork, which is where the most devastating restaurant fires occur. The minimal cost of a cap protects a system that likely cost thousands of dollars to install.

Common Failure Points: When to Replace Your Caps

A metal cap should be replaced if any of the following are observed:

• Missing Caps: A nozzle without a cap is a liability. Grease will enter the piping, and by the time you see the fire, the pipe might be too clogged to discharge agent.
• Corrosion or Pitting: If the cap shows signs of chemical pitting from heavy-duty degreasers, the friction fit may be compromised.
• Deformation: If a cap has been hit by a heavy pot or pan during cleaning and is dented, it may "clamp" onto the nozzle, preventing the system from discharging at the correct pressure.
• Missing Tethers: If the cap is loose without its stainless steel wire, it can be knocked into the food prep area easily, leaving the nozzle vulnerable.

Using genuine Ansul metal caps is a matter of strict regulatory compliance. National Fire Protection Association (NFPA) standards 17A and 96 are very clear regarding the maintenance of discharge nozzles. If a fire occurs and an insurance investigator finds that the nozzles were uncapped or used non-listed caps (like aluminum foil or generic rubber), they may have grounds to deny the claim.

• Orifice Protection (NFPA 17A): All nozzles must be provided with caps or other suitable covers to prevent the entrance of grease or other foreign materials into the piping.
• Listing Integrity: The UL 300 listing for your Ansul R-102 system is based on the use of specific, tested components. Replacing a lost metal cap with a generic alternative voids the UL listing of the entire system.
• Mandatory Replacement: During the semi-annual (every 6 months) professional inspection, any cap found to be damaged, missing, or heavily corroded must be replaced immediately. This 10-pack is an essential "emergency kit" for every kitchen manager to have on hand to avoid a "Fail" on their inspection report.

Can I use these caps on Amerex or Buckeye nozzles?
No. Nozzle diameters vary by manufacturer. These are specifically calibrated for the dimensions of Ansul nozzles. Using them on other brands may result in the cap being too loose (falling off) or too tight (not blowing off).

Do I need a professional to install these?
A kitchen manager can slide a new cap onto the nozzle as a temporary fix if one is lost. However, the tether must be correctly crimped by a fire safety professional to ensure compliance during the semi-annual inspection.

How do I know if I need metal or rubber caps?
Check your previous inspection report. Generally, if the nozzle is located directly over a high-heat appliance like a broiler or charbroiler, metal is required. For fryers, rubber is often acceptable, but many managers prefer the durability of metal across the entire hood.
