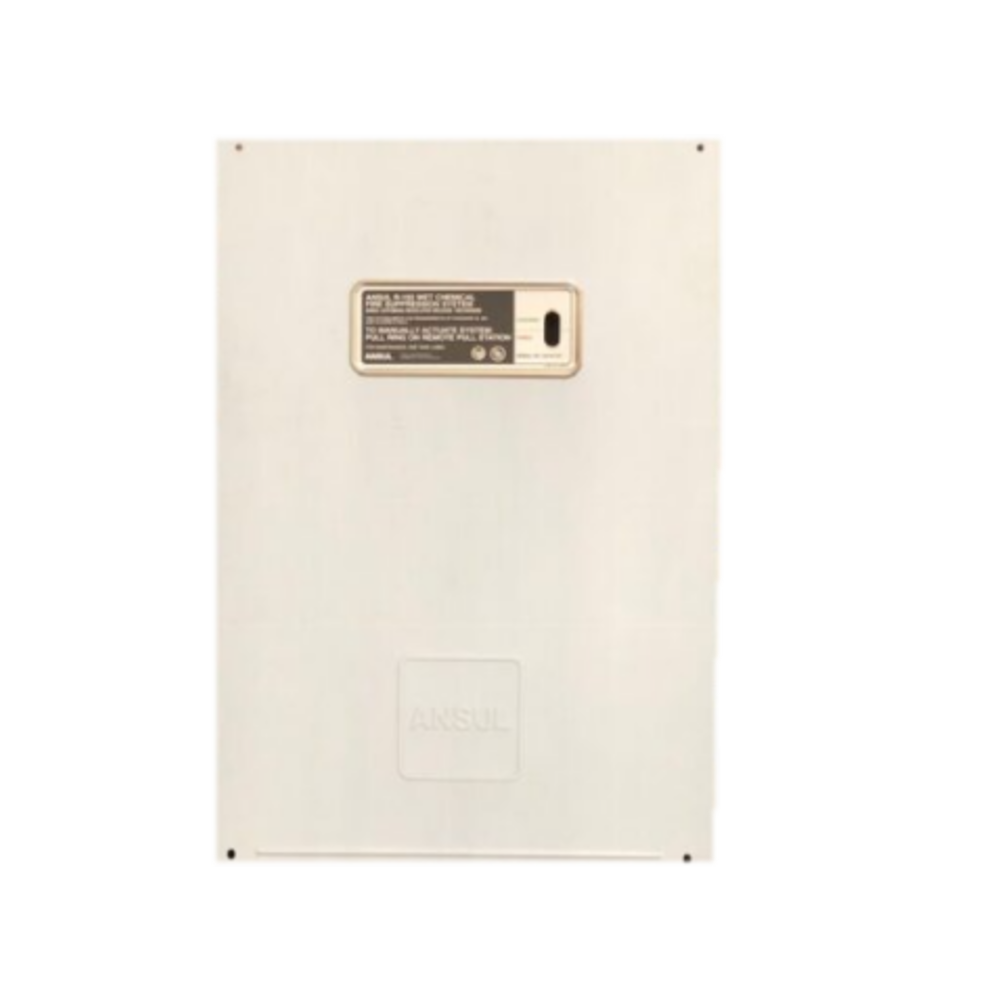

Ansul R-102 3.0 Cover Assembly - 423744

The Ansul R-102 3.0 Cover Assembly (Part No. 423744) serves as the primary structural armor for the 3.0-gallon agent cylinder. In the volatile environment of a commercial cook line, the cylinder valve and ANSUL Automan control head act as the system's central nervous system. This assembly provides a rugged, cold-rolled steel shell that protects these high-precision components from grease loading, radiant heat, and physical impacts.

Finished in a high-visibility red powder coat, the 423744 is a critical safety barrier that ensures the firing mechanism remains unobstructed by carbonized grease or debris. It creates a dead-air space that maintains the environmental isolation necessary for UL 300 compliance. For fire protection stakeholders, this cover is a mandatory investment in structural integrity, ensuring that sensitive pressure gauges and valve stems remain protected in high-traffic zones where rolling carts or heavy cookware pose constant risks.

The 423744 must be installed by a certified fire suppression technician and is geometrically tuned specifically for the 3.0-gallon R-102 agent cylinder. It must not be modified or used with differently sized cylinders, as doing so would violate the system's UL listing and could interfere with the alignment of nitrogen actuation lines and hose connections.

When installing, use only the included self-tapping hardware to secure the cover. Ensure that all actuation hoses, pressure gauges, and cable penetrations are properly seated and unobstructed before the cover is closed. The cover must be inspected during every semi-annual service to verify the interior is free of carbonized grease buildup. If grease has penetrated the enclosure and is coating the valve stem or gauge face, the interior must be cleaned before the cover is re-installed. By providing long-term environmental isolation for valve threads and the bracket interface, the 423744 prevents the corrosion that can make cylinders impossible to service during mandatory 12-year hydrostatic testing.

Can I use the 423744 cover on a 1.5-gallon tank?

No. The 423744 is geometrically tuned specifically for the 3.0-gallon agent cylinder. Attempting to modify the cover violates the system's UL listing and can interfere with the alignment of the nitrogen actuation lines. Always use size-specific hardware such as the 423743 for smaller tanks.

Why is the red powder coat preferred over standard paint?

The powder coat provides radiant heat resilience and chemical resistance that withstands the high-alkaline degreasers used in commercial kitchens. Standard paint would bubble and peel, exposing the raw steel to atmospheric corrosion and potentially fouling the mechanical trigger.

How does this cover facilitate the 12-year service cycle?

By providing environmental isolation for the valve threads and bracket interface, the 423744 prevents the corrosion that often makes cylinders impossible to service. This ensures the unit can successfully pass its mandatory 12-year hydrostatic test without hardware failure.
