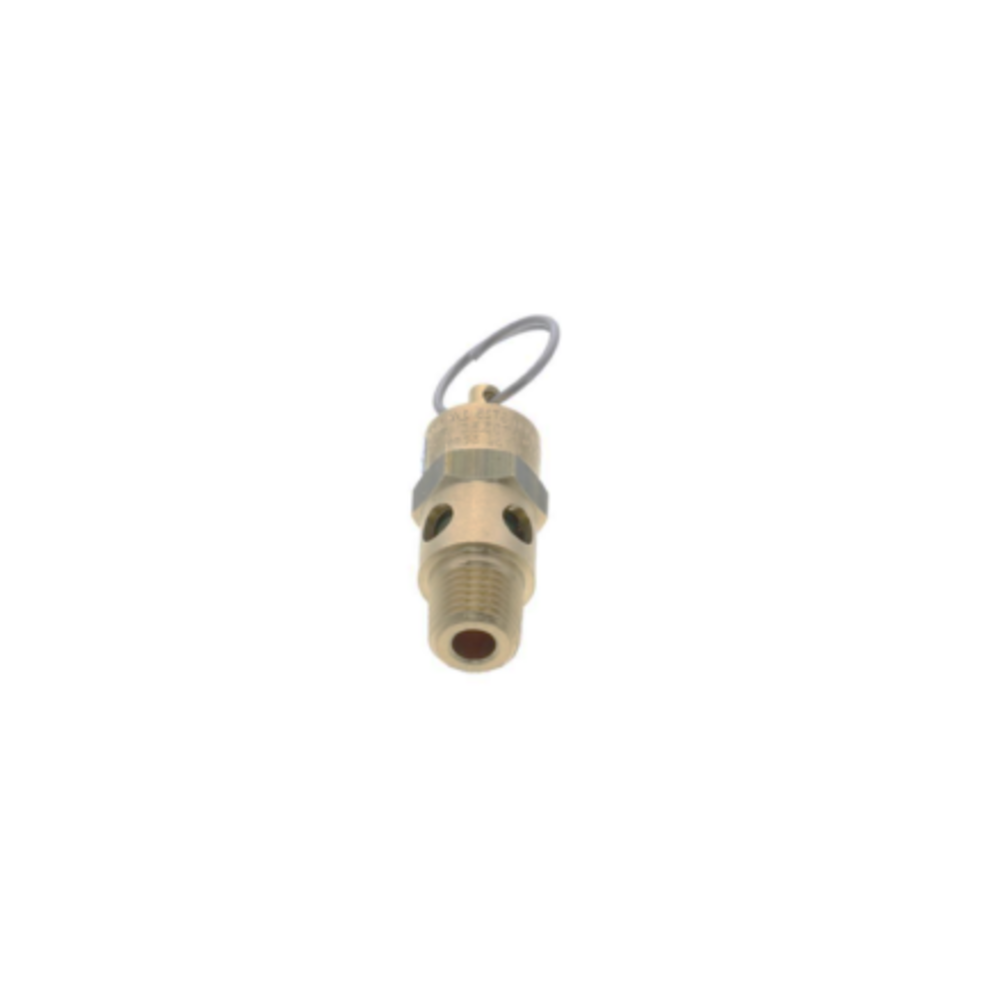

Ansul Safety Vent and Relief Valve 15677

The Ansul 15677 is a pressure safety vent and relief valve for ANSUL agent cylinders, designed to vent excess pressure and maintain safe operating conditions throughout the cylinder's service life. In a commercial kitchen environment, ANSUL agent cylinders can be exposed to significant heat from nearby cooking equipment — heat that can cause the nitrogen propellant charge to expand and raise cylinder pressure above the rated operating range. The 15677 safety vent and relief valve acts as the last line of defense against catastrophic cylinder over-pressurization, venting excess pressure before it can compromise cylinder integrity.

Safety relief valves on fire suppression agent cylinders are a required safety component under NFPA 17A and the DOT pressure vessel regulations that govern cylinder design and maintenance. A missing, corroded, or previously-activated safety vent is an immediate inspection deficiency — the cylinder must not remain in service without a functional pressure relief device. The 15677 is the OEM replacement relief valve for compatible ANSUL cylinders, ensuring the replacement relief device is rated to the same set pressure and flow capacity as the original factory-installed valve.

Available through authorized ansul distributors. Inspect the 15677 safety vent and relief valve at every semi-annual NFPA 17A and NFPA 96 service visit. Check for corrosion on the valve body, evidence of prior activation (wetness or agent residue around the vent port), and physical damage. A relief valve that has previously activated must be replaced immediately — once a relief valve has vented, it cannot be guaranteed to reseat to its original set pressure. Replace with a new 15677 and document in the fire suppression system inspection record. The ansul fire suppression system and ANSUL R-102 cylinder service documentation specify the relief valve inspection protocol.

Semi-Annual Inspection

At every semi-annual NFPA 17A inspection, visually inspect the 15677 for corrosion, physical damage, and any evidence of prior activation such as agent residue or wetness around the vent port. Do not attempt to test the valve by manually lifting the vent — this can damage the seating surface and cause a leaking valve. Replace any valve showing corrosion, damage, or evidence of prior activation immediately with a new 15677 OEM unit. Document inspection findings in the fire suppression system inspection record.

Post-Activation Replacement

If the 15677 has activated and vented cylinder pressure, the valve must be replaced before the cylinder is recharged. A previously-activated relief valve cannot be guaranteed to reseat to its original set pressure — it may leak at normal operating pressure or fail to relieve at the correct over-pressure threshold. Always install a new 15677 and verify correct installation torque per the ANSUL cylinder service documentation before recharging.

Can a relief valve activate during normal kitchen operation?

In properly installed ANSUL systems with cylinders positioned away from direct heat sources, the relief valve should not activate during normal operation. If the 15677 has activated, it indicates the cylinder was exposed to excessive heat — investigate the root cause (proximity to cooking equipment, inadequate shielding, poor ventilation in the enclosure) before reinstalling a replacement cylinder. Repeated relief valve activation is a system installation deficiency that must be corrected to prevent agent loss and system pressure depletion between inspections.

Is the 15677 a universal fit for all ANSUL cylinders?

Verify compatibility with your specific ANSUL cylinder model using the ANSUL cylinder documentation or by consulting authorized ansul distributors. Different cylinder configurations may use different relief valve specifications. Always use the OEM 15677 or the correct OEM part number for your specific cylinder — never substitute a generic relief valve rated for a different set pressure.
