Ansul Updated Style Cocking Tool and Lock Pin 441041

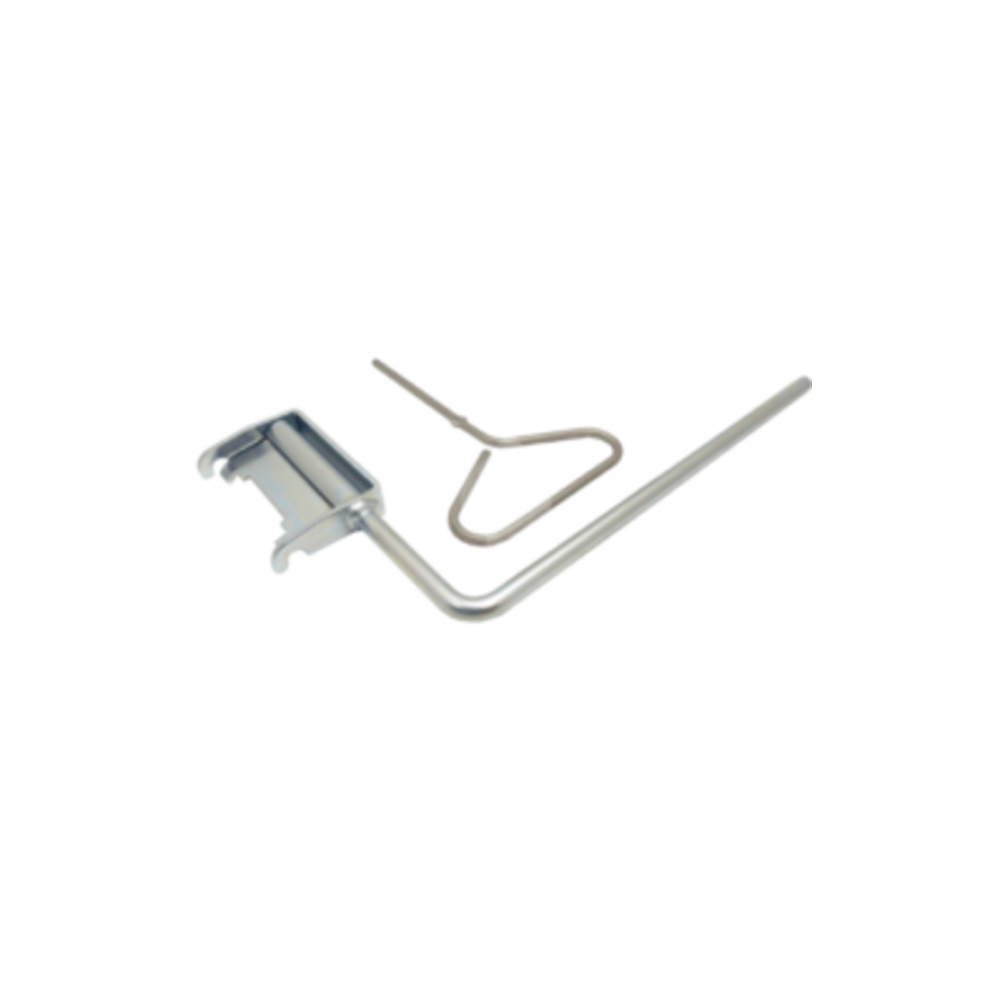

The Ansul Updated Style Cocking Tool and Lock Pin (441041) is a professional-grade OEM service kit engineered specifically for the restoration and re-arming of ANSUL AUTOMAN mechanical release assemblies. Following a system discharge, whether due to a fire event or a mandatory functional test, the internal high-tension springs of the Automan are released to puncture the nitrogen cartridge. The 441041 tool set provides the necessary mechanical leverage to retract these springs and re-cock the mechanism into its armed state without damaging the internal cast components or risking technician injury.

This updated style represents a significant ergonomic and safety advancement over legacy designs. It features enhanced grip geometry and a reinforced stress point to handle the high-torque demands of R-102 and PIRANHA systems. For fire protection professionals, the 441041 is an indispensable asset that ensures systems are not just reset, but technically re-armed to the exact manufacturer specifications required for life-safety compliance.

The Mechanics of Readiness: Kinetic Reset and Component Security

High-Tension Spring Compression

The Automan release relies on heavy-duty springs to drive the puncture pin. The 441041 cocking tool provides a controlled, linear path for compressing these springs. This is critical because manual compression with non-specialized tools can lead to side-loading, which can warp the internal cocking lever or cause a hair-trigger condition.

The Role of the Lock Pin

Once the springs are compressed, the included lock pin acts as a temporary safety boundary. It holds the high-tension components in a neutral state while the technician performs tasks like replacing the Ansul 14985 Lock Bar. This ensures the system cannot accidentally discharge while maintenance is performed.

Leverage Dynamics

The updated tool design utilizes a specific length to maximize the moment of force (torque) required for compression. This reduces physical strain and ensures a smooth, non-jarring engagement of the internal sear.

• Post-Discharge Recovery: Resetting the Automan release heads following a full system discharge in a commercial kitchen.
• Semi-Annual Functional Testing: Used by technicians to re-cock the system after a dry trip test, which verifies the detection line is functioning correctly.
• 12-Year Maintenance: Providing the means to disassemble and re-arm the mechanical release during mandatory hydrostatic testing.
• System Commissioning: Ensuring a perfect, factory-standard set on newly installed systems before the final fire marshal inspection.

To maintain UL Listing and ensure system reliability, the use of the 441041 must follow strict professional protocols:

• Certified Service Only: This tool set is designed for use by licensed fire protection technicians. Improper use can lead to accidental discharge or permanent damage to the internal casting.
• Visual Inspection of the Tool: Before use, the tool should be inspected for rounding of the contact teeth. A damaged tool can slip during the cocking process, posing a safety risk.
• Lock Pin Verification: After the pin is inserted, the technician must verify it is fully seated before releasing pressure on the cocking tool. This secondary verification is a standard safety protocol.
• Storage and Organization: As a critical service item, the 441041 should be stored in a dedicated technician service kit. A system cannot be legally armed without the proper reset procedure.

What is the difference between the Updated Style and the old one?
The updated 441041 features a reinforced handle and a more precise engagement tip that reduces the risk of the tool slipping. It also includes an ergonomic grip that allows for better control during the high-pressure portion of the reset cycle.

Can I reset an Automan without the lock pin?
No. The lock pin is essential for safely securing the mechanism while you re-attach the detection cable. Attempting to hold the tension manually is extremely dangerous and could lead to a maintenance-related accidental discharge.

Does this tool work for the Ansul Piranha system?
Yes. Since the Piranha and R-102 systems both utilize the Automan mechanical release, the 441041 is the universal reset tool for both platforms.
