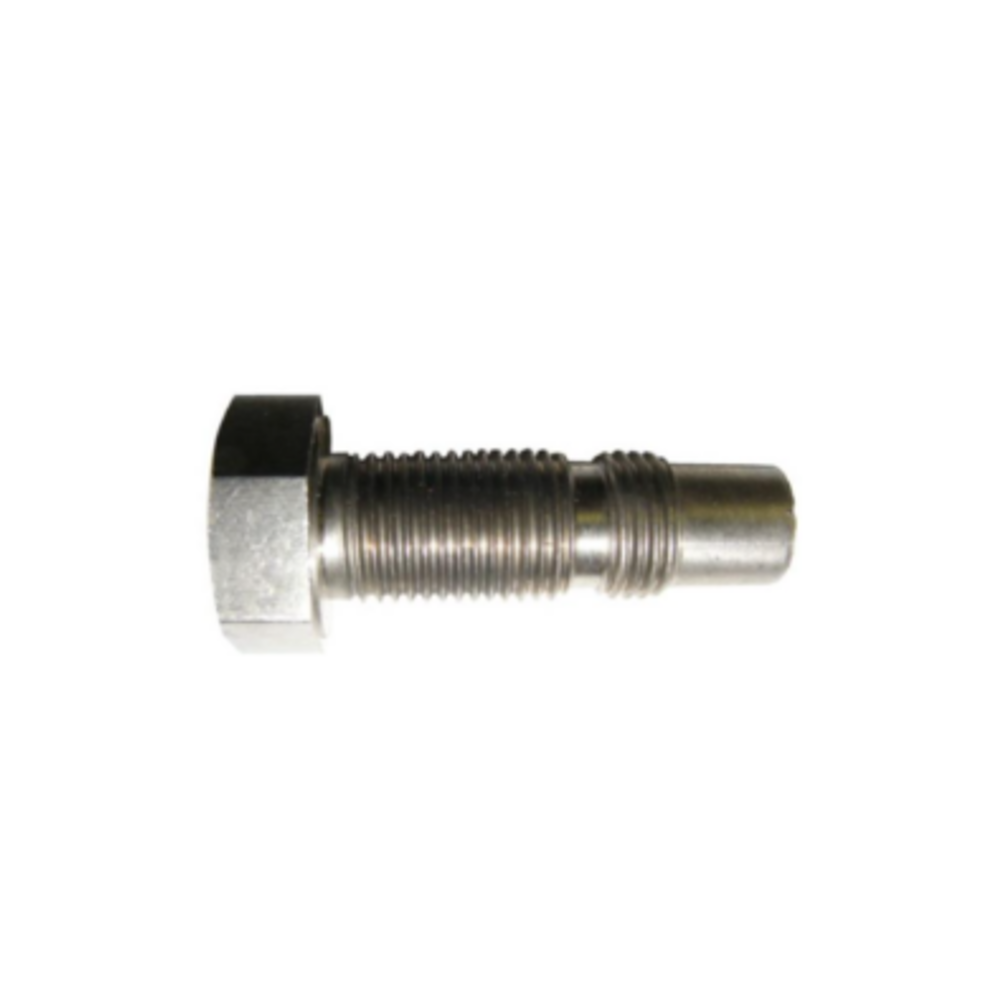

Buckeye BFR-PRT System Actuation Pin Reset Tool

The Buckeye BFR-PRT System Actuation Pin Reset Tool is a precision-engineered OEM service instrument required to restore Buckeye fire suppression cylinders to their armed configuration. Following a system discharge, whether due to a fire event or a mandatory functional test, the internal actuation pin is driven forward to puncture the agent seal or release the nitrogen propellant. The BFR-PRT is the only factory-authorized tool designed to retract, align, and securely reset this pin without damaging the delicate internal valve seats or seals.

Constructed from high-tensile, corrosion-resistant alloy, the BFR-PRT is designed for the high-torque, precision maneuvers required during cylinder recharging. It is an indispensable part of a certified technician's toolkit, ensuring that the Buckeye Kitchen Mister or industrial dry chemical systems are technically re-armed to manufacturer specifications. For safety directors, the BFR-PRT is the definitive tool for ensuring post-discharge readiness in high-hazard environments.

The Mechanics of Readiness: Pin Alignment and Valve Sealing

Linear Pin Retraction

The actuation pin is a spring-loaded or pressure-driven component. The BFR-PRT tool provides the necessary mechanical leverage to retract the pin against its internal tension. This allows the technician to install a new safety pull-pin or re-engage the system's trigger mechanism without the risk of an accidental discharge.

Valve Seat Protection

Re-arming a cylinder with non-specialized tools can cause burring on the pin's surface or the valve's internal bore. The BFR-PRT ensures a perfectly centered, linear reset path, protecting the integrity of the O-rings and ensuring a gas-tight seal once the system is pressurized.

Fail-Safe Arming

The tool is designed to provide tactile feedback to the technician. When the pin reaches the correct set depth, the tool allows for the insertion of mechanical locking devices. This eliminates the guesswork that can lead to a short-set pin, which could fail to activate the system during a subsequent fire emergency.

• Post-Discharge Recovery: Resetting the actuation pins on multiple cylinders following a full system discharge in a commercial kitchen.
• Semi-Annual Functional Testing: Used by technicians to reset the system after a dry trip test, which verifies the detection line is functioning correctly without releasing the agent.
• 6-Year Internal Maintenance: Providing the means to disassemble and re-arm valves during mandatory hydrostatic testing and internal inspections.
• System Commissioning: Ensuring a factory-standard set on newly installed systems before the final fire marshal inspection.
• Industrial Paint Spray Booths: Restoring dry chemical systems in high-hazard zones where rapid re-arming is critical for maintaining production schedules.

To maintain UL Listing and ensure system reliability, the use of the BFR-PRT must follow strict professional protocols:

• Professional Use Only: This tool is designed for use by licensed fire protection technicians. Improper use can lead to accidental system discharge or permanent damage to the actuation assembly.
• Cleanliness and Inspection: Before each use, the BFR-PRT should be inspected for debris. A dirty tool can introduce contaminants into the valve, leading to O-ring bypass or slow leaks.
• Post-Reset Verification: After using the tool to set the pin, a technician must perform a pull-test on the mechanical linkage to ensure the pin is fully seated before the final system pressurization.
• Storage and Organization: As a critical service item, the BFR-PRT should be stored in a dedicated technician service kit to prevent loss. A system cannot be legally armed without the proper reset procedure.

Can I reset a Buckeye cylinder without this tool?
While some attempt to use universal tools, the BFR-PRT is the only tool that ensures the pin is retracted to the precise depth required. Using improper tools can damage the pin's internal shoulder, which can lead to system activation failure.

Does this tool work for all Buckeye systems?
The BFR-PRT is specifically designed for the Buckeye BFR (Restaurant) and similar industrial actuation pins. Always verify the specific part number in the manufacturer's technical manual before performing service.

How do I know the pin is successfully reset?
The BFR-PRT tool is designed to allow the system's Locking Pin to slide into place only when the internal pin is at the correct depth. If the clip does not seat easily, the pin is not fully reset, potentially causing a maintenance-related red tag.
