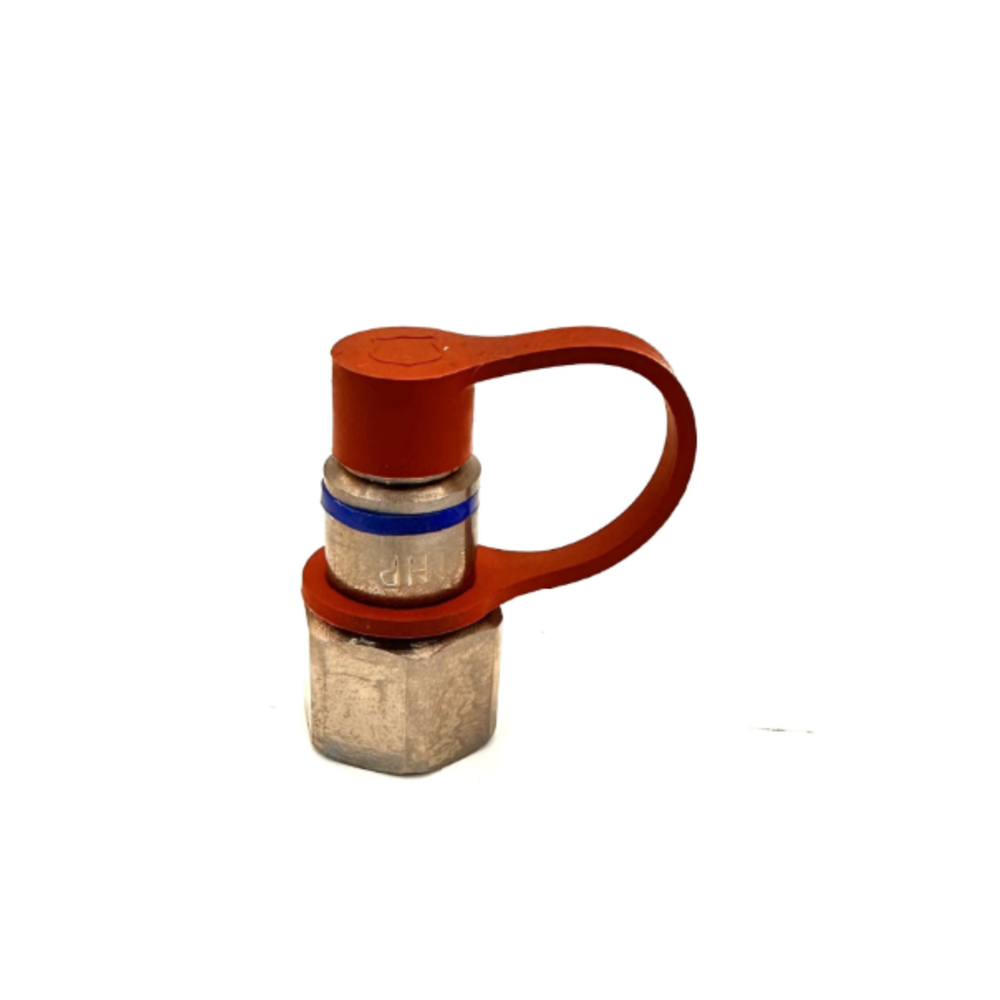

Wholesale PricingThe Buckeye N-1HP is a 1-flow-point nozzle for the Buckeye Kitchen Mister Wet Chemical Fire Suppression System, identified by its blue color band. It is the 1-flow-point counterpart to the N-1LP (red band), specified for different appliance coverage configurations per the Kitchen Mister Design, Installation, and Maintenance Manual. The N-1HP nozzle can protect a plenum of up to 12 feet in length and 4 feet in width per nozzle, with larger plenums divided into 12-foot sections. Not interchangeable with the N-1LP, N-2HP, N-2LP, or N-2W nozzle types. Sold individually. For full background on the Kitchen Mister system, flow point budgeting, nozzle color coding, and installation requirements, refer to the N-2HP product page.
| Feature | Details |
|---|---|
| Manufacturer | Buckeye Fire Equipment Company |
| Model Number | N-1HP |
| Flow Points | 1 |
| Color Band | Blue |
| Plenum Coverage | Up to 12 Feet Long x 4 Feet Wide Per Nozzle |
| Sold As | Single Unit |
| Compatible System | Buckeye Kitchen Mister Wet Chemical Fire Suppression System |
| Compatible Cylinders | BFR-5, BFR-10, BFR-15, BFR-20 (1 Flow Point Consumed Per Nozzle) |
| Certifications | UL Listed (UL-300 / UL-1254), ULC Listed, NFPA 17A and 96 Compliant |
| Related 1-Flow-Point Nozzle | N-1LP Red (1 Flow Point, Different Coverage Configuration) |
| Lead Product Page | N-2HP Green (2 Flow Points) |
