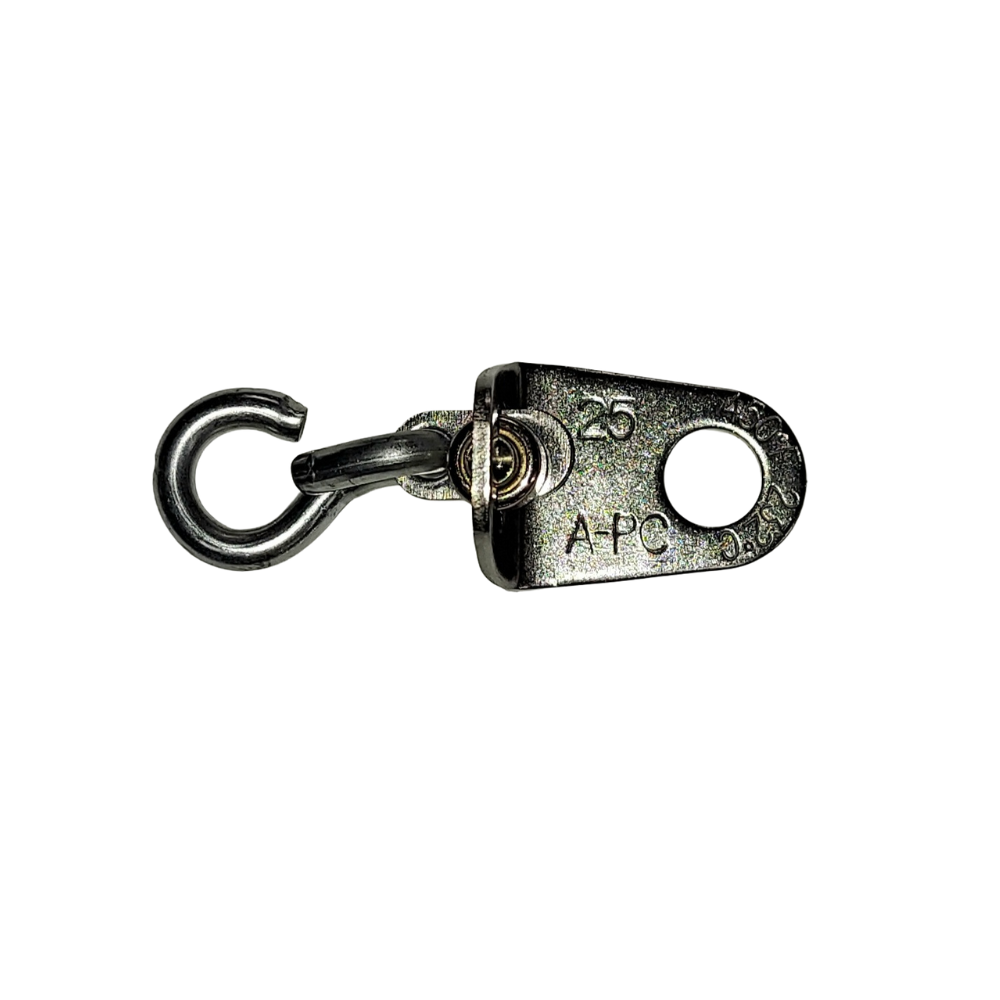

500° ML / A-PC Style UL Listed Fusible Link - 551527

The Ansul / Pyro-Chem 551527 is a UL Listed fusible link rated at 500°F, in the ML / A-PC style design, for use in the detection network of the Ansul R-102, Pyro-Chem Kitchen Knight II, and Monarch restaurant fire suppression systems. This is the highest temperature-rated link in the ML-style family and is specified for detector locations where the maximum normal ambient temperature reaches up to 400°F, such as directly above solid-fuel or wok cooking appliances that generate extreme sustained heat during service.

Fusible links are the automatic detection sensors of these pre-engineered kitchen suppression systems. Each link is a two-part assembly held together by a heat-sensitive alloy solder. The link is installed in a detector hook assembly and connected to the detection cable running back to the AUTOMAN or NMCH release mechanism. During normal operation, the link holds the cable under tension, keeping the release mechanism cocked and ready. When a fire raises the temperature at the link's location to its rated separation temperature, the solder melts and the link separates, releasing cable tension throughout the detection run and triggering the release mechanism to discharge agent over the protected appliances.

Selecting the Correct Temperature Rating

Fusible link temperature selection is based on the maximum normal ambient temperature at the detector location, not the expected fire temperature. The link must be rated high enough to survive normal cooking conditions without accidentally tripping, but low enough to respond quickly in a genuine fire. A maximum registering thermometer (P/N 15240) is used during system design to measure the highest normal ambient temperature at each detector location, and the link rating is then selected from the Ansul temperature chart. The 500°F link is specified where ambient temperatures are measured between 360°F and 400°F.

ML-Style vs K-Style Links

The ML-style (also called A-PC style) is the physical design of this link family and is distinct from the K-style (also called SL-style) used in other detector bracket configurations in the same systems. The two styles are not interchangeable: ML-style links require ML-style detector hook assemblies, and K-style links require K-style hook assemblies. The detector bracket assembly type in the system design determines which link style is correct for each detector location.

Mandatory Annual Replacement

Per NFPA 17A and Ansul's own installation and service documentation, fusible links must be replaced, not merely inspected, at every semiannual service interval. A link that has been exposed to 12 months of cooking heat may appear intact but have accumulated enough thermal stress to alter its separation temperature, which is why replacement is mandatory regardless of visible condition.

These systems are pre-engineered systems under NFPA 17A. Fusible link installation and replacement must be performed by a certified distributor for the specific system.

• Use a Maximum Registering Thermometer: Before specifying the 500°F link for a location, a certified technician uses a maximum registering thermometer (P/N 15240) to confirm the ambient temperature at that detector position actually reaches the 360°F to 400°F range that warrants this rating. Do not substitute a higher-rated link without confirming the actual measured ambient temperature.
• Mandatory Replacement Every 6 Months: All fusible links, including those that appear undamaged, must be replaced at every semiannual service interval. Thermal stress accumulation is not visible and cannot be verified by inspection alone.
• Match Style to Hook Assembly: Confirm the detector hook assembly at this location is ML-style before installing this link. Installing a K-style link in an ML-style hook, or vice versa, will result in incorrect cable tension and unreliable detection.

Why is the 500°F link only for locations where the ambient temperature reaches up to 400°F?

The link must survive normal cooking conditions without accidentally separating, while still responding reliably in a fire. Ansul's system design requires a margin between the maximum normal ambient temperature and the link's separation temperature. The 500°F rating provides that margin for locations where cooking generates sustained ambient temperatures up to 400°F.

Why aren't the 500°F links available in packs of 10 like other ML-style links?

The 500°F link is specified only for the most extreme heat locations in a system, which are typically limited in number. The individual unit format reflects the lower volume typically needed compared to lower-rated links, which may be used across more detector positions in a single kitchen.

Can I inspect a link and leave it in place if it looks fine?

No. NFPA 17A and the Ansul service documentation require that fusible links be replaced, not inspected and retained, at every semiannual service interval. Thermal degradation of the solder alloy is not visible and cannot be assessed by looking at the link.
