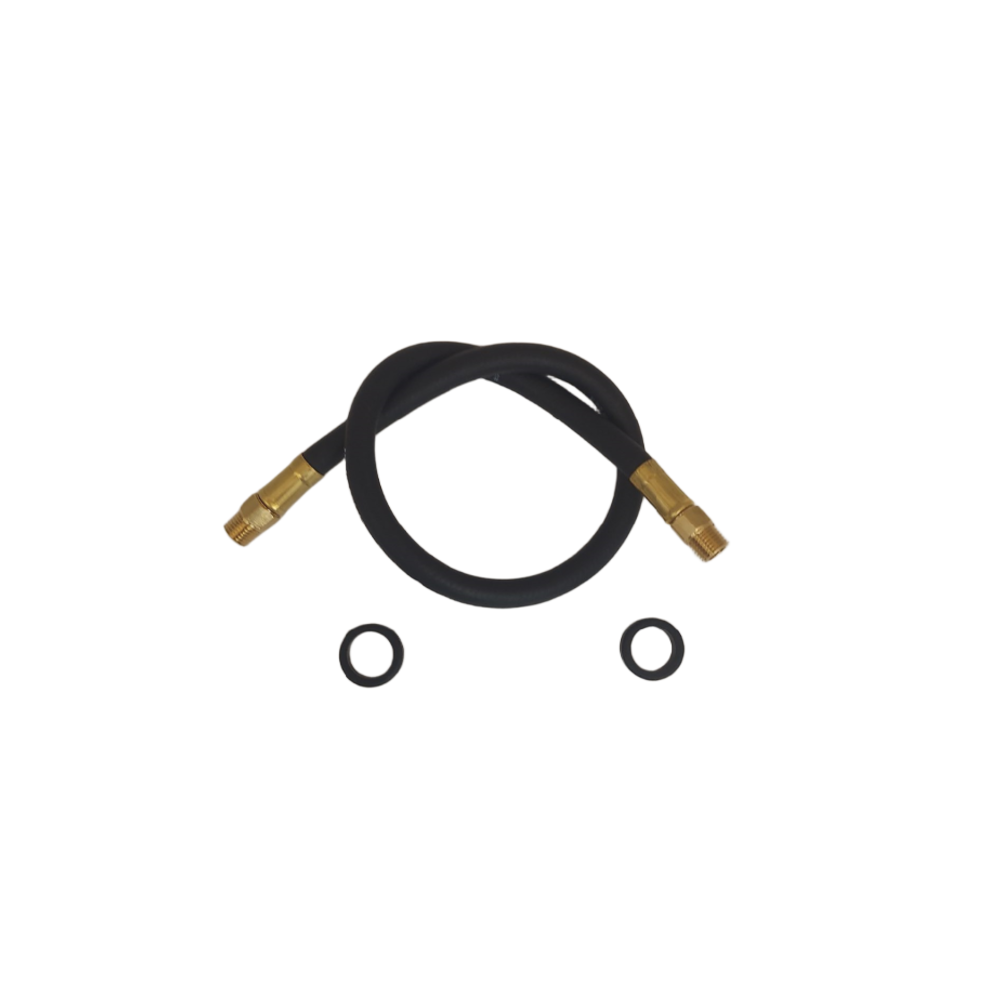

Hose Grommet Package 418511

The Ansul Hose Grommet Package (418511) is a precision-engineered OEM protective kit designed to safeguard high-pressure actuation and discharge hoses within ANSUL R-102 and PIRANHA fire suppression systems. In the dense mechanical environment of a commercial kitchen hood or industrial enclosure, hoses must frequently navigate through sharp-edged sheet metal panels and structural brackets. The 418511 grommets act as the essential structural interface, providing a smooth, cushioned boundary that eliminates the risk of shear-abrasion and vibration-induced wear.

Manufactured from high-density, oil-resistant elastomers, these grommets are designed to withstand persistent exposure to aerosolized grease and high ambient temperatures. By sealing the entry point where a hose penetrates a metal surface, the 418511 package ensures the hose's outer jacket remains intact, preserving the structural integrity of the internal wire braid. For fire protection professionals, these grommets are a zero-failure requirement for meeting the installation standards mandated by NFPA 17A.

Mitigating Vibration-Induced Abrasion

Commercial kitchens are high-vibration zones, driven by massive rooftop exhaust fans. When a stainless steel braided hose rests against a raw metal edge, these vibrations act like a saw. The 418511 grommets dampen these harmonics, isolating the hose from the sawing effect of the metal enclosure.

Accommodating Thermal Expansion

In the hot zone of a kitchen hood, metal panels and high-pressure hoses expand and contract at different rates. Without a grommet, this movement creates friction at the contact point. The elastic nature of the Ansul grommet allows for this localized movement without compromising the hose jacket, a critical factor in hose jacket preservation.

Dielectric and Galvanic Isolation

By providing a non-conductive barrier, the 418511 grommets prevent potential galvanic corrosion between different metal types, such as a stainless steel braid and a galvanized enclosure. This isolation is critical for long-term system life in humid or coastal environments.

Compliance with NFPA 17A and 96

NFPA explicitly states that all piping and hoses must be protected from mechanical damage and chafing. Using the 418511 package is the most direct way to prove to a Fire Marshal (AHJ) that the system was installed according to the UL-listed technical manual.

Zero-Maintenance Reliability

Once installed, these grommets provide years of passive protection. Unlike field-improvised solutions like tape wraps, these OEM grommets will not unravel or degrade when exposed to the high heat of a commercial broiler line.

Professional Finish

In modern open-kitchen designs, the visual quality of the installation reflects the facility's standards. The 418511 provides a clean, professional finished look that signals a code-compliant installation to both insurance underwriters and inspectors.

• Agent Tank Enclosures: Protecting the main discharge hoses as they exit the tank cabinet to feed the hood manifold.
• Actuation Line Routing: Safeguarding the 1/4" hoses that connect the Automan Release to the nitrogen cartridges in multi-tank systems.
• Remote Pull Stations: Ensuring the cable-housing transitions through walls remain protected from structural friction.
• Industrial Special Hazard Enclosures: Providing an abrasion-resistant seal for hoses protecting CNC machines or industrial dip tanks.
• Modernization Cycles: Replacing legacy or missing grommets during 12-year internal maintenance cycles to bring systems back to factory safety standards.

Sizing and Fitment Audit

Ensure the grommet is the correct size for the hole. A loose grommet can fall out, leaving the hose exposed, while a tight one can pinch the hose, potentially restricting the flow of the actuation gas.

Semi-Annual Integrity Check

During the mandatory 6-month inspection, technicians should check each grommet for signs of heat-hardening. If a grommet has become brittle, it must be replaced to ensure it continues to provide the necessary dampening effect.

Edge Preparation

Before installing the 418511, ensure the metal edge is free of sharp burrs. A razor-sharp metal edge can eventually cut through the elastomer under heavy mechanical vibration.

Cleanliness Protocol

Wipe the entry point clean of grease before snapping the grommet into place. This ensures the grommet seats correctly and will not slide out during a suppression discharge.

Can I use generic hardware-store grommets instead of the 418511?

No. Generic grommets are often made of low-grade rubber that melts or becomes brittle in a kitchen exhaust plenum. The 418511 is engineered for chemical and thermal stress. Using non-OEM parts can void your fire system UL listing.

Do these grommets work with stainless steel braided hoses?

Yes. In fact, they are even more critical for braided hoses. The stainless steel braid is abrasive to metal panels; without the 418511, the hose will essentially file through the panel, leading to hose jacket damage.

How many grommets come in a package?

The 418511 is a multi-unit package designed for a standard system installation. For large manifolds, ensure you have enough grommet sets to cover every panel penetration point in the facility.
