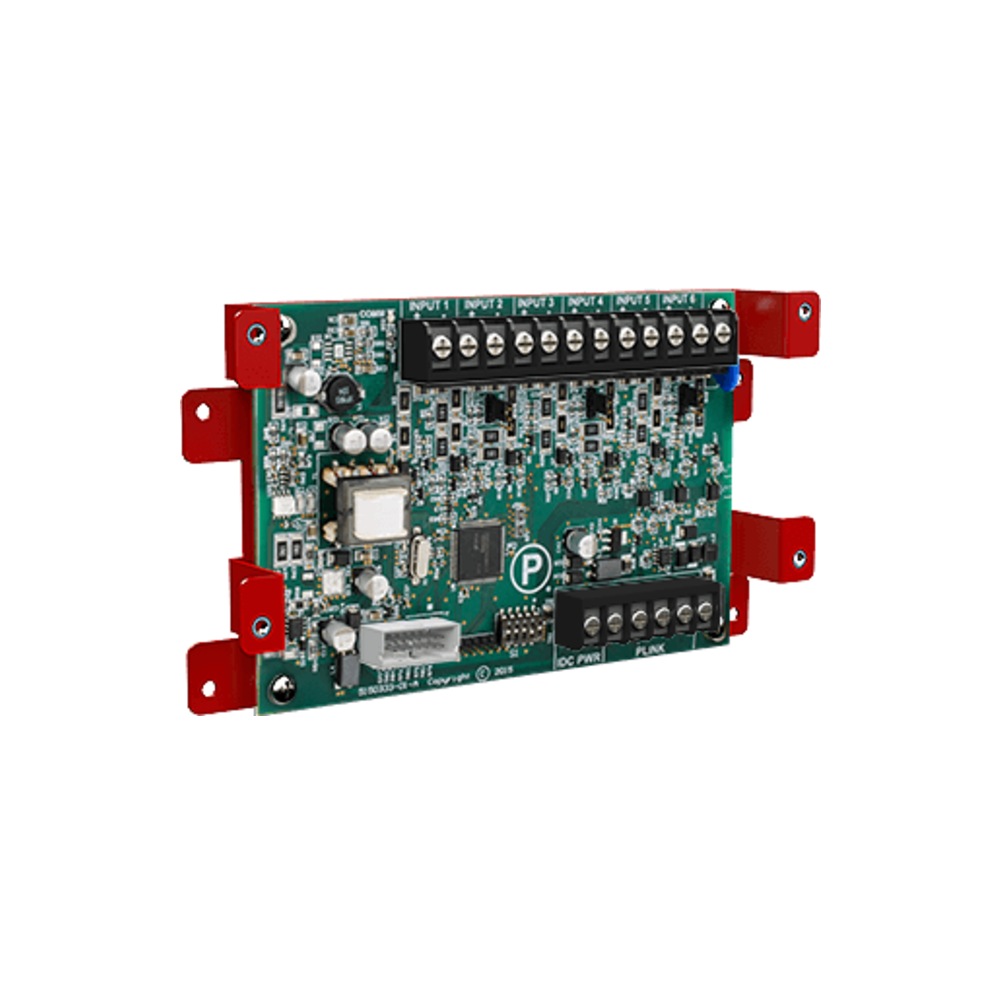

IDC-6 Initiating Device Circuit Expander

The IDC-6 Initiating Device Circuit Expander (P/N 3992362) is a six-zone expansion module for Potter fire alarm control panels. It adds six additional supervised initiating device circuits (IDC zones) to compatible Potter panels, allowing the system to monitor more smoke detectors, manual pull stations, waterflow switches, and other fire alarm initiating devices without requiring a larger base panel. Each zone is fully supervised for open and short circuit faults, maintaining NFPA 72 Class B wiring compliance throughout.

For commercial buildings, multi-tenant facilities, and industrial sites where the base fire alarm control panel's zone capacity is insufficient for the required number of detection devices, the IDC-6 provides a cost-effective expansion path. Rather than replacing the entire fire alarm control panel with a larger unit, contractors can add the IDC-6 to expand the system's initiating device capacity while retaining the existing panel infrastructure and programming.

The IDC-6 is an essential fire alarm equipment supplies item for Potter fire alarm system contractors managing growing facilities or retrofitting older buildings with expanded fire detection coverage. It is compatible with Potter's conventional fire alarm control panel series and integrates seamlessly into existing fire alarm signalling networks without requiring additional fire alarm testers or specialized programming tools beyond standard Potter panel configuration.

Panel Compatibility Verification

Before installing the IDC-6, verify compatibility with your specific Potter fire alarm control panel model and firmware version. The expander must be listed for the panel it is connected to — using an unlisted expander module voids the panel's UL listing and NFPA 72 compliance. Refer to the Potter panel installation manual for the approved expander modules for your system.

Zone Wiring

Wire each of the six IDC zones using Class B wiring with end-of-line resistors sized to the Potter panel specification. Each zone must be tested for correct alarm, supervisory, and trouble responses after installation. Document all zone assignments and device types on the fire alarm inspection and test records for the AHJ review.

System Commissioning

After installing the IDC-6, perform a full system commissioning test per NFPA 72. This includes activating each connected initiating device — smoke detectors, manual pull stations, and waterflow switches — and verifying correct annunciation at the fire alarm control panel. Fire alarm inspection stickers and test records must be updated to reflect the expanded zone configuration.

How many IDC-6 modules can be added to a single Potter panel?

The maximum number of IDC-6 expanders per panel depends on the specific Potter fire alarm control panel model. Refer to the panel's installation manual for the maximum expander capacity. Exceeding the panel's maximum zone count voids the UL listing and can cause panel instability.

Can the IDC-6 support addressable devices?

No. The IDC-6 adds conventional supervised IDC zones for Class B wiring. It does not support addressable devices. For addressable device expansion, Potter offers SLC loop expander modules compatible with their addressable fire alarm slc panel series. Verify the correct expander type for your system architecture before ordering.

Is the IDC-6 compatible with non-Potter panels?

The IDC-6 is specifically designed and listed for Potter fire alarm control panels. Using it with non-Potter panels is not supported and will void both the expander's and the panel's UL certifications. For non-Potter systems, use the panel manufacturer's approved expander modules.
