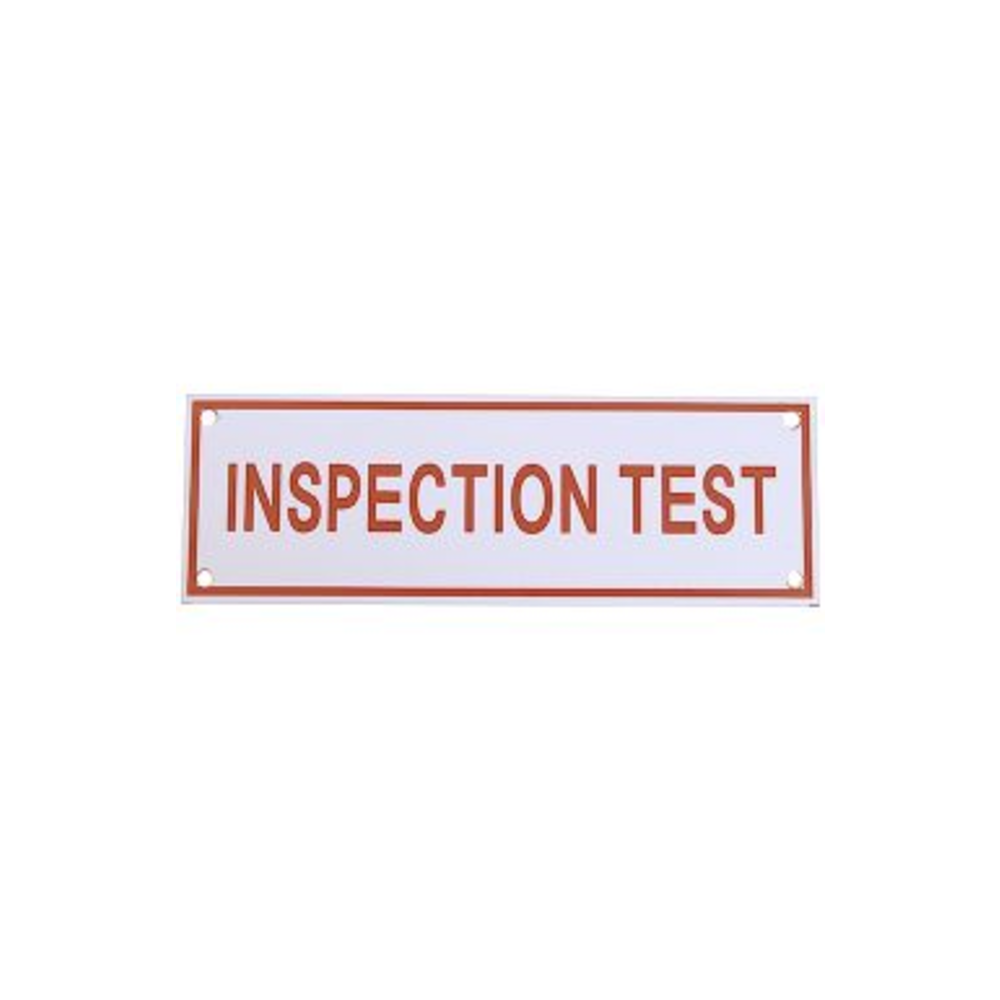

Inspection Test Sign

The Inspection Test Sign identifies the location of the inspector's test connection on a fire sprinkler system, the test drain or valve used to simulate sprinkler activation and verify that the system's flow alarms work correctly without triggering a full discharge. NFPA 25 requires that inspector's test connections be clearly identified so that inspectors and testing personnel can locate them quickly during the periodic testing required to maintain the system's listing and operational readiness.

Inspector's test connections are typically located at the hydraulically most remote point in a sprinkler system, often at the end of a branch line where they serve as a controlled way to introduce a metered flow of water into the system and verify that the alarm devices, flow switches, and monitoring equipment respond correctly. Without a properly placed sign, a technician unfamiliar with a specific building's layout may spend considerable time locating the correct connection, delaying required testing and documentation.

• Automatic Sprinkler Systems: Required at the inspector's test connection location in any wet or dry pipe automatic sprinkler system maintained under NFPA 25.
• Commercial and Industrial Buildings: Facilities with automatic sprinkler systems where periodic flow testing is required by the Authority Having Jurisdiction or the building's fire protection plan.
• New Construction and Renovation: Required as part of a compliant sprinkler system installation to identify all test and drain connections for inspectors and future service personnel.

• NFPA 25 Compliance: NFPA 25 requires that inspector's test connections be identified with a sign. This identification is verified during the inspection, testing, and maintenance procedures required to keep a sprinkler system compliant.
• Placement: Mount directly on or immediately adjacent to the inspector's test valve or connection point, at a height clearly visible to personnel approaching from the normal access direction.
• Authority Having Jurisdiction: Confirm any specific sign format, material, or color requirements with your local Authority Having Jurisdiction before installation.

What happens during an inspector's test?

A technician opens the inspector's test connection valve to flow water at a rate equivalent to one sprinkler activating. This flow should trigger the system's flow switches and activate alarm devices, confirming the alarm components are functioning without requiring an actual sprinkler head to open. The test is documented in the NFPA 25 inspection record.

Is this sign required by NFPA?

Yes. NFPA 25 requires that inspector's test connections be identified. Inspectors verify that the connection is properly labeled as part of the required inspection procedure. Missing or illegible signs may result in inspection deficiencies that must be corrected.
