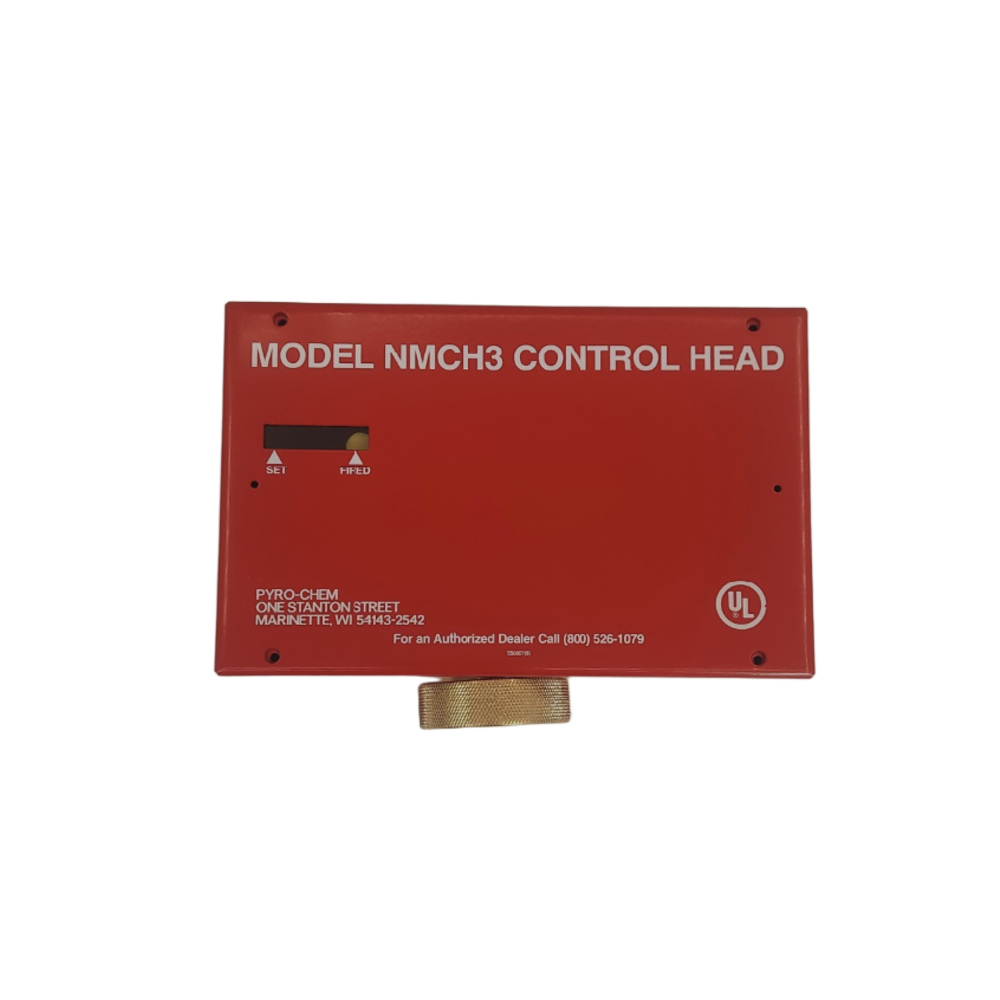

Pyro-Chem NMCH Control Head 551203

The Pyro-Chem NMCH Control Head (551203) is a high-precision mechanical command module engineered for the Kitchen Knight II (Wet Chemical) and Monarch series (Dry Chemical) fire suppression systems. In the complex safety architecture of an industrial kitchen or paint spray booth, the control head acts as the decision engine. It is responsible for monitoring thermal detection lines, processing manual overrides, and executing a synchronized discharge of extinguishing agents and utility shut-offs.

The NMCH (Non-Manual Control Head) designation is a critical engineering distinction. Unlike standard models, the 551203 is designed for installations where local manual actuation at the cylinder is either physically inaccessible or prohibited by safety protocols. By relying exclusively on remote manual pull stations, the NMCH allows for a streamlined, tamper-resistant remote logic installation. For fire protection stakeholders, the 551203 is the definitive choice for centralized, multi-cylinder scalability in high-volume environments.

Tension-Release Principle

The NMCH operates on a mechanical equilibrium. A continuous loop of stainless steel cable, held under precise tension by fusible links, keeps the internal spring-loaded firing pin in a cocked position. When a link melts or a remote pull station is activated, the tension drops instantly. The resulting kinetic energy ensures a high firing pin strike force against the activation cartridge.

Pneumatic Pulse Hydraulics

Upon puncture, the 16-gram CO2 cartridge releases a concentrated burst of gas into the actuation manifold. This pneumatic pulse travels through the actuation piping to the system valve actuators (SVA) on each agent cylinder. The NMCH is engineered to manage the volume required to actuate up to five cylinders simultaneously, ensuring a uniform discharge across the largest cooking lines.

Sequential Utility Interlock

The 551203 is designed with internal cam interfaces that allow for the simultaneous execution of auxiliary functions. As the firing pin drops, the mechanical rotation of the cam trips a mechanical gas valve and toggles auxiliary microswitches, ensuring that the fuel source is severed and exhaust fans are managed at the exact millisecond the suppression agent begins to flow.

Multi-Cylinder Scalability

In large-scale operations like hospital cafeterias, a single agent tank is rarely sufficient. The 551203 allows for a modular bank of up to five tanks to be controlled by a single head. This reduces the number of failure points and simplifies the semi-annual inspection process.

Tamper-Resistant Remote Logic

In public-access areas or high-traffic industrial zones, having a manual pull handle directly on the cylinder can lead to accidental discharges. The NMCH moves the manual interface to remote pull stations located along the path of egress, ensuring the system is only triggered by personnel safely exiting the hazard zone.

Listed System Integrity

Every component is part of a tested and approved safety envelope. The 551203 is the exact control head used during rigorous UL testing. Utilizing this OEM part protects the owner from insurance-related liability and fire marshal red-tags.

• Industrial Paint Spray Booths: Integrated with the Monarch system to protect plenums, ducts, and open-front work areas.
• Large-Scale Institutional Kitchens: Providing the massive 5-tank capacity required for stadium concessions and hospital cook lines.
• Remote Mechanical Rooms: Where agent cylinders are stored away from the kitchen hood, necessitating a remote-only manual trigger.
• Hazmat Storage Locker Protection: Providing a rugged, mechanical fail-safe for lockers containing flammable liquids or chemicals.
• Retrofit Modernization: Replacing aged or non-compliant control units during 12-year overhauls to restore factory reliability.

Axial Alignment and Tension Calibration

During installation, the detection line must be tensioned to exact specifications. Over-tensioning can lead to nuisance trips, while under-tensioning can cause the firing pin to strike with insufficient force.

Semi-Annual Functional Audit

Every 6 months, a technician must perform a silent trip of the NMCH. This involves removing the CO2 cartridge and triggering the system via a remote pull station to ensure all internal cams and microswitches toggle correctly.

Factory-Stamped Weight Verification

The 16-gram activation cartridge must be weighed during every inspection. If the weight has deviated by more than 0.5g from the factory-stamped weight, it must be replaced immediately to ensure the pneumatic pulse remains powerful enough.

Mounting Integrity Protocol

Because the NMCH manages detection line tension, it must be mounted to a rigid structural member. Any flex in the mounting surface can lead to a loss of cable tension over time.

What is the difference between NMCH and MCH?

The MCH (Manual Control Head) features a local pull handle directly on the unit. The NMCH (Non-Manual) lacks this handle and is intended for systems where manual activation happens exclusively at remote pull stations.

Can I use the 551203 with an Ansul R-102 cylinder?

No. While both brands are owned by Johnson Controls, the 551203 is specifically listed for Pyro-Chem hardware. Mixing brands is a major code violation and will void the UL listing and insurance coverage.

How many microswitches can I install in the NMCH?

The NMCH is designed to accommodate up to two auxiliary microswitches (SPDT or DPDT). These are used to shut down power to appliances, exhaust fans, or to send an alarm signal to the building's main fire panel.
