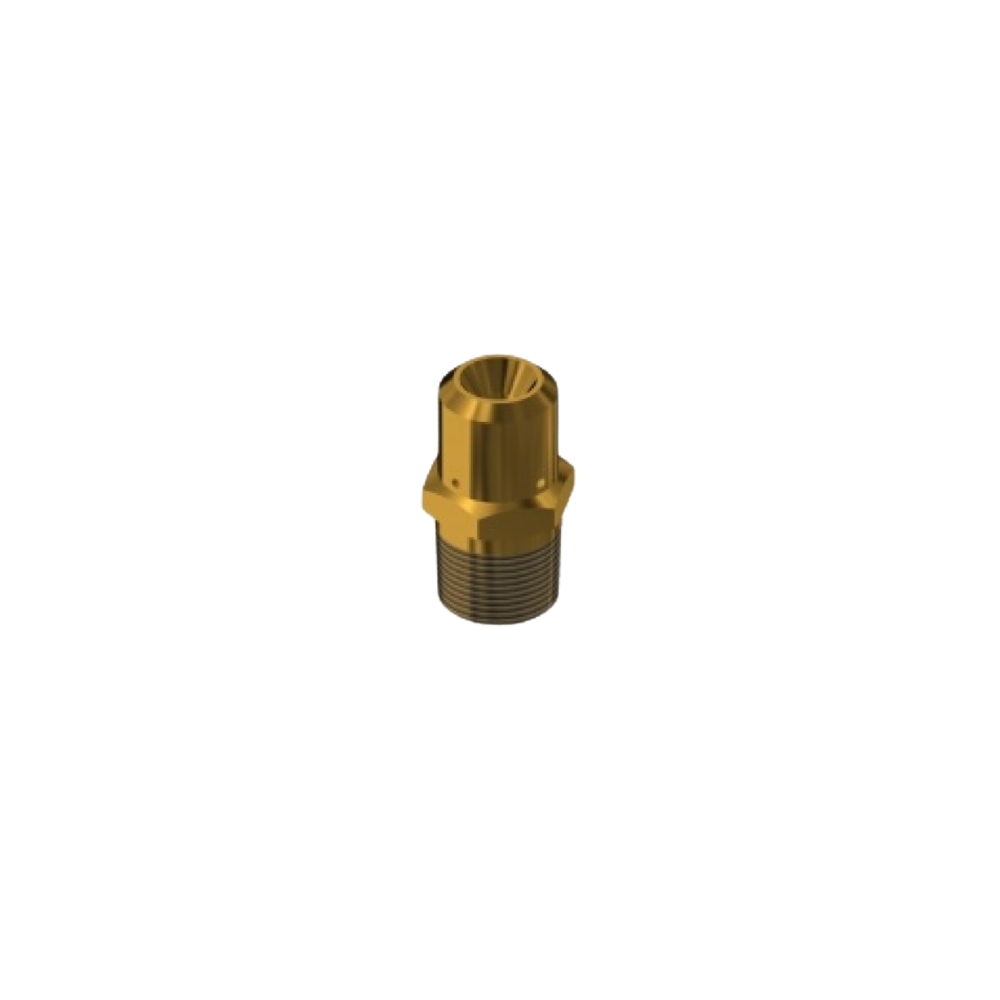

Amerex IS Total Flood Perimeter (TFP) Nozzle, Single Item, OEM - 17809
Are you a fire protection company? Get wholesale pricing
Wholesale PricingRelated Documents
The Amerex IS Total Flood Perimeter Nozzle (TFP, P/N 17809) is the high-volume total flood nozzle in the Amerex IS Industrial Dry Chemical Fire Suppression System, designed for perimeter mounting at the upper boundary of large enclosed hazard volumes. Two TFP nozzles provide total flood coverage for up to 5,440 cubic feet, making it the nozzle of choice for large enclosed industrial spaces where the standard Total Flood nozzle (TF, P/N 16172) would require too many nozzle positions to achieve the required agent concentration. The TFP uses a 1-inch female thread, distinct from the 3/4-inch male NPT used on all other IS nozzles, and uses a dedicated replacement cap (P/N 17810) rather than the shared P/N 14988 cap. For full background on the Amerex IS system and nozzle service requirements, refer to the LAOH nozzle product page (P/N 16216).
| Feature | Details |
|---|---|
| Manufacturer | Amerex Corporation |
| Part Number | 17809 |
| Nozzle Type | Total Flood Perimeter (TFP) |
| Thread Size | 1 Inch Female Thread (Different from Other IS Nozzles) |
| Coverage (2 Nozzles) | Up to 5,440 Cubic Feet |
| Mounting Position | Upper Perimeter of Protected Enclosure |
| Operating Temperature Range | -40°F to 120°F (-40°C to 49°C) |
| Replacement Cap | P/N 17810 (TFP-Specific, Not Interchangeable with P/N 14988) |
| System | Amerex IS Industrial Dry Chemical Fire Suppression System |
