Amerex IS Total Flood (TF) Nozzle, Single Item, OEM - 16172
Are you a fire protection company? Get wholesale pricing
Wholesale PricingRelated Documents

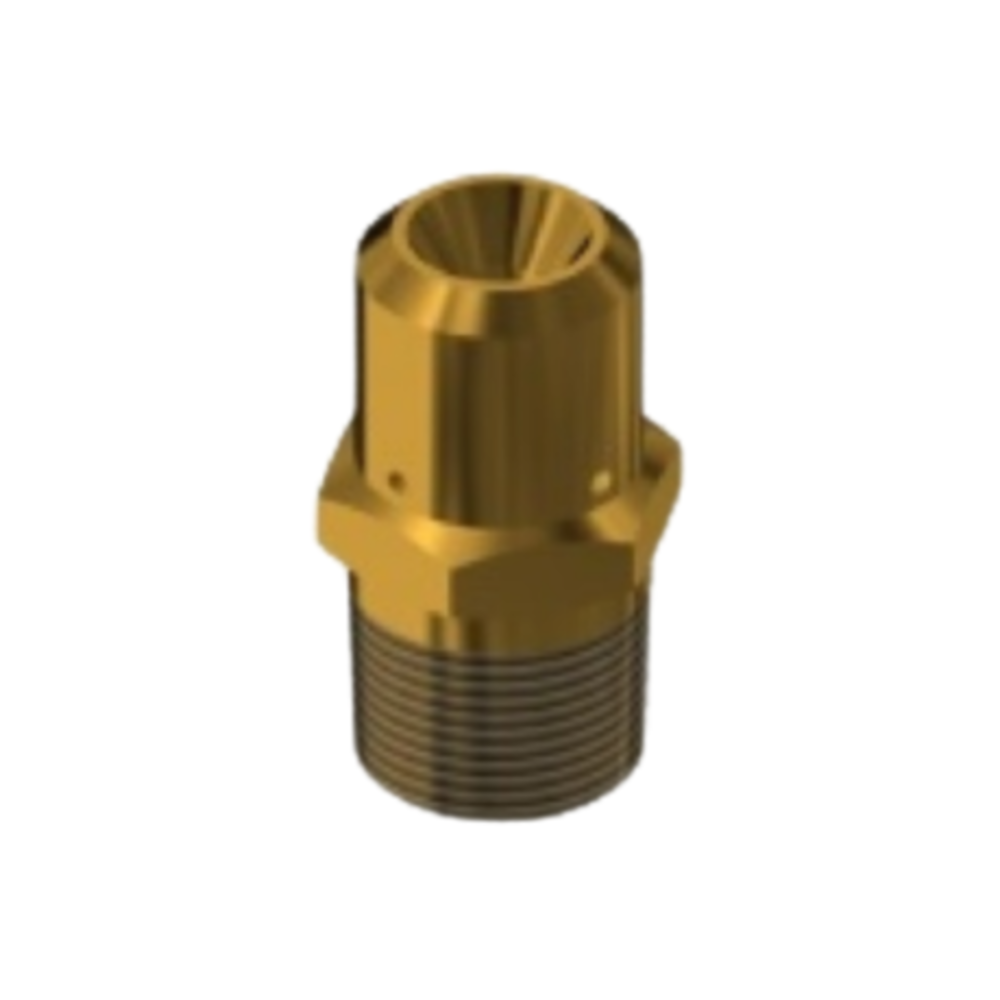

The Amerex IS Total Flood Nozzle (TF, P/N 16172) is the standard ceiling-mounted total flood nozzle for the Amerex IS Industrial Dry Chemical Fire Suppression System, used when the protected enclosure requires complete agent flooding rather than localized surface application. It is compatible with both the IS18 and IS35 cylinders: one TF nozzle per IS18 cylinder, and two TF nozzles per IS35 cylinder. The nozzle must be mounted within 6 inches of the ceiling of the protected space, with a maximum height of 20 feet and a maximum side dimension of 15 feet. The operating temperature range is -40°F to 120°F. For full background on the Amerex IS system and nozzle service requirements, refer to the LAOH nozzle product page (P/N 16216).
| Feature | Details |
|---|---|
| Manufacturer | Amerex Corporation |
| Part Number | 16172 |
| Nozzle Type | Total Flood (TF) |
| Thread Size | 3/4 Inch Male NPT |
| Compatible Cylinders | IS18 (1 Nozzle) and IS35 (2 Nozzles) |
| Maximum Height | 20 Feet |
| Maximum Side Dimension | 15 Feet |
| Mounting Position | Within 6 Inches of Ceiling |
| Operating Temperature Range | -40°F to 120°F (-40°C to 49°C) |
| Replacement Cap | P/N 14988 |
| System | Amerex IS Industrial Dry Chemical Fire Suppression System |
