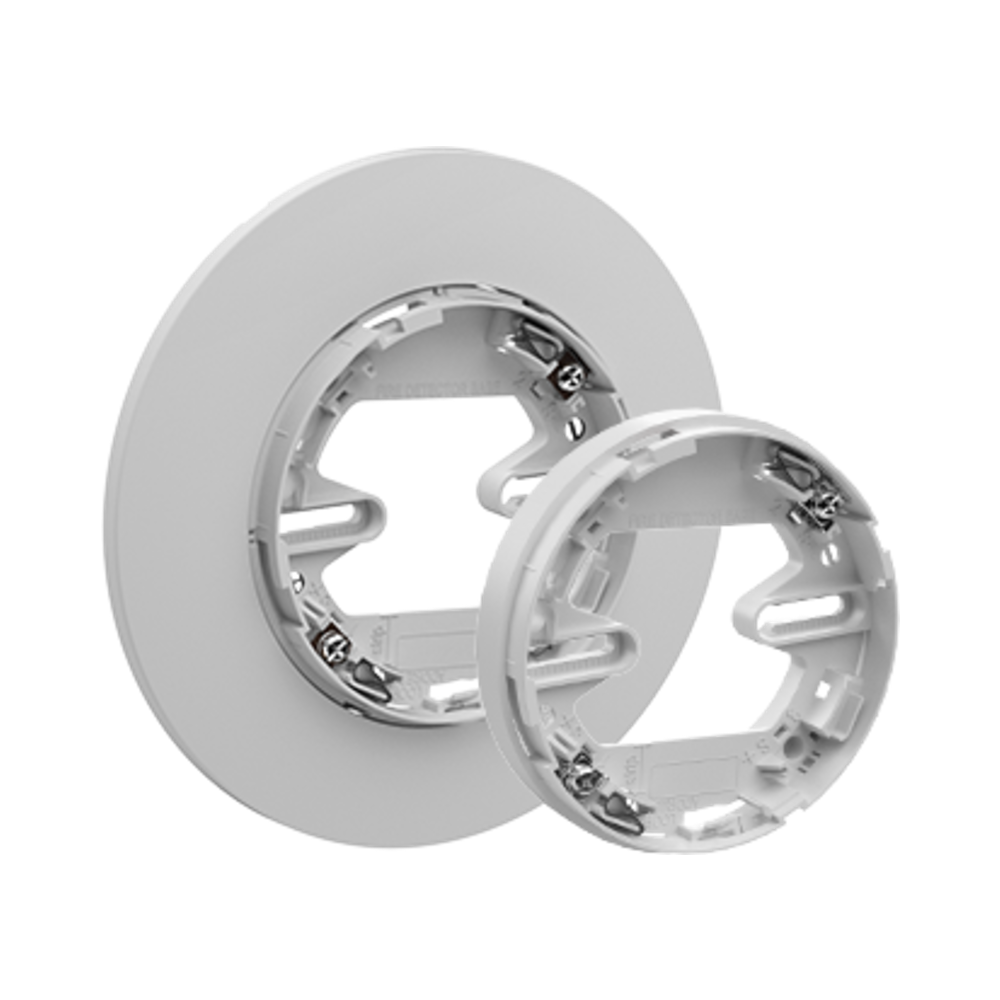

PAD300-4DB/6DB Detector Base

The PAD300-4DB and PAD300-6DB are OEM detector mounting bases for the Potter PAD300 series of addressable fire alarm detectors, available in 4-inch and 6-inch diameters. Each base provides a secure, low-profile surface mount platform that accommodates a variety of electrical boxes — from single-gang to 4-inch square — and supports in-and-out Signaling Line Circuit (SLC) wiring for clean loop continuity through the smoke detector mounting base. A locking tab prevents unauthorized removal of the detector head, triggering a panel trouble condition if the head is tampered with between inspections.

Selecting the right base size is critical for code-compliant installation. The PAD300-4DB (4-inch) suits single-gang and standard 4-inch octagon box locations commonly found in commercial buildings. The PAD300-6DB (6-inch) accommodates larger ceiling boxes and provides a wider mounting footprint preferred in open commercial ceiling environments. Both versions accept the full range of PAD300-series detector heads — including the PAD300-PD photoelectric smoke detector and PAD300-PHD combination smoke and heat detector — making them the universal mounting solution for the PAD300 commercial smoke detectors platform.

For fire alarm equipment supplies contractors stocking PAD300-series installations, the detector base is a high-volume consumable. Every smoke detector installation requires a base — and keeping both the 4DB and 6DB variants in inventory ensures the correct base is available for any commercial smoke detectors for commercial buildings installation regardless of the existing electrical box configuration at the site.

Base Installation

Mount the PAD300-4DB or 6DB to the ceiling electrical box using the provided hardware. Connect the SLC in and out loop wires to the correct terminals per the Potter wiring diagram — polarity must be correct for SLC communication. Verify the base is flush with the ceiling surface with no gaps around the perimeter before inserting the detector head. A gap at the base perimeter can affect the detector's smoke entry performance.

Detector Head Installation

Insert the PAD300-series detector head into the base and rotate clockwise until the locking tab engages. Confirm full engagement — a partially locked detector can fall from the base and trigger a system trouble condition. After installation, use a smoke detector tester spray to verify alarm response and confirm the correct device address is reported at the fire alarm control panel.

Replacement and Annual Service

The detector base remains in place during annual smoke detector testing and routine maintenance. Only the detector head needs to be removed for cleaning or replacement — the base SLC wiring stays intact. This design eliminates rewiring during fire detector tester annual service visits, significantly reducing inspection time in large commercial smoke detectors for commercial buildings installations. Update fire alarm inspection stickers after each annual test cycle.

Which base should I choose — 4DB or 6DB?

Choose the PAD300-4DB for single-gang or standard 4-inch octagon box locations. Choose the PAD300-6DB for 4-inch square boxes or when a wider mounting footprint is preferred for the ceiling aesthetic. Both accept the same PAD300-series detector heads — the difference is only the physical diameter and electrical box compatibility.

Is this base compatible with non-PAD300 Potter detectors?

The PAD300-4DB and 6DB are designed for PAD300-series detector heads only. They are not compatible with other Potter detector series or non-Potter detectors. Always verify the correct base and detector head combination before installation to ensure proper electrical and mechanical engagement.

Does the locking tab require a special tool to remove the detector?

The locking tab is designed to prevent casual removal without completely preventing authorized maintenance. Authorized technicians with a smoke detector tool or the Potter recommended removal tool can disengage the lock for head replacement or cleaning during scheduled maintenance. Unauthorized removal without the tool triggers a trouble condition at the fire alarm control panel, alerting monitoring personnel to the tamper event.
