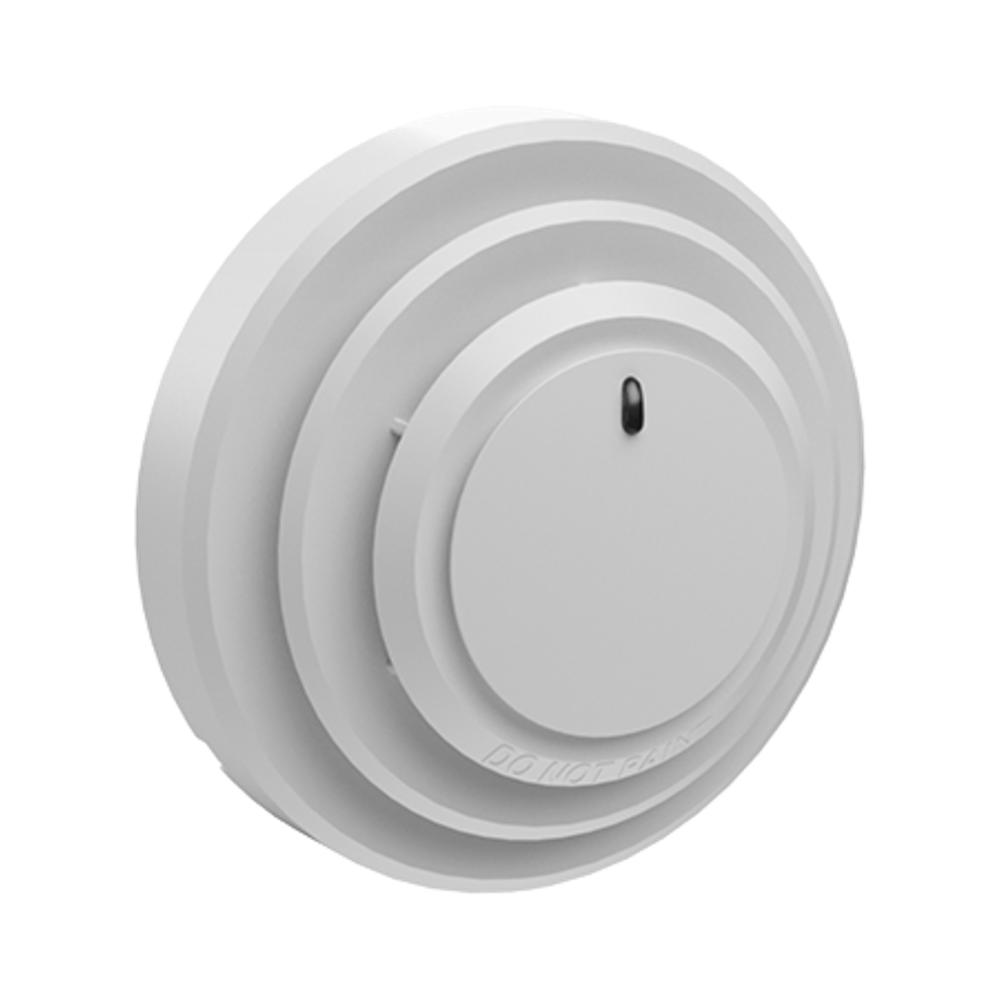

PAD300-PD Photoelectric Smoke Detector

The PAD300-PD is an analog addressable photoelectric smoke detector designed for commercial smoke detector applications using the Potter PAD signaling protocol. With a low-profile footprint and durable off-white housing, the PAD300-PD blends nearly flush with ceilings while delivering reliable detection of smoke and fire. Its broad sensitivity range, simple DIP-switch address setup, and digital communication make it one of the most practical commercial smoke detectors for commercial buildings requiring NFPA 72 compliant addressable fire alarm coverage.

Photoelectric smoke detection technology is the preferred detection method for slow-smoldering fires — the type most commonly associated with commercial and residential fire fatalities. Unlike ionization detectors which respond faster to fast-flaming fires, photoelectric detectors like the PAD300-PD excel at detecting the large combustion particles produced in early-stage smoldering fires, making them the right choice for offices, hotels, healthcare facilities, and other occupancies where slow-developing fires are the primary concern. For smoke detectors for commercial buildings where occupant safety is the top priority, the PAD300-PD's analog addressable architecture provides the added advantage of early-stage sensitivity monitoring — the panel can identify when a detector's analog value is trending toward alarm before it reaches the alarm threshold.

Built-in drift compensation automatically adjusts the detector's alarm threshold over time as environmental contamination accumulates, reducing nuisance alarms from gradual dust buildup without sacrificing fire detection sensitivity. The PAD300-PD uses a standard 4-inch or 6-inch PAD300-series detector base (sold separately) for mounting, allowing easy head replacement without rewiring during the annual smoke detector test cycle.

Detector Placement

Install the PAD300-PD per NFPA 72 spacing requirements for commercial smoke detectors — typically one detector per 900 square feet of open area with a maximum spacing of 30 feet between detectors. Adjust spacing for ceiling height, air movement, and obstructions per the NFPA 72 design criteria. Never install in locations subject to high airflow velocities that could dilute smoke before reaching the detector chamber.

Sensitivity and Drift Compensation

The PAD300-PD's analog sensitivity value is visible at the fire alarm control panel, allowing technicians to identify detectors trending dirty before they generate a maintenance alert. This proactive monitoring reduces emergency maintenance calls and nuisance fire alarm signalling events. Review all detector analog values during each annual smoke detector test to identify units requiring cleaning.

Annual Smoke Detector Test

Per NFPA 72, all commercial smoke detectors must be functionally tested annually using a listed smoke detector tester spray or smoke detector test smoke. Use a smoke detector checker compatible with photoelectric detectors for the PAD300-PD. Verify alarm response at the fire alarm control panel and document in the fire alarm inspection and test records. Fire alarm inspection stickers should be updated after each successful test. Replace any detector that fails to respond to the smoke detector tester stick or spray within the NFPA 72 specified response time.

What is the difference between PAD300-PD and PAD300-PHD?

The PAD300-PD is a photoelectric smoke-only detector. The PAD300-PHD adds an integrated heat sensor (rate-of-rise and fixed temperature) providing combination smoke and heat detection from a single addressable device. Specify the PHD for locations where both smoke and heat detection is required by the system design or AHJ.

Is a base included with the PAD300-PD?

No. The PAD300-PD detector head requires a separate PAD300-4DB (4-inch) or PAD300-6DB (6-inch) smoke detector mounting base. Order the appropriate base for your electrical box configuration alongside the detector head. The locking base tab prevents unauthorized detector removal and generates a panel trouble condition if the head is removed.

Can this detector be used in an ac smoke detector configuration?

No. The PAD300-PD is a low-voltage SLC-powered addressable device. It is not an ac smoke detector or smoke detector ac power unit. It requires a compatible Potter PAD addressable fire alarm control panel with an active SLC loop for power and communication.
