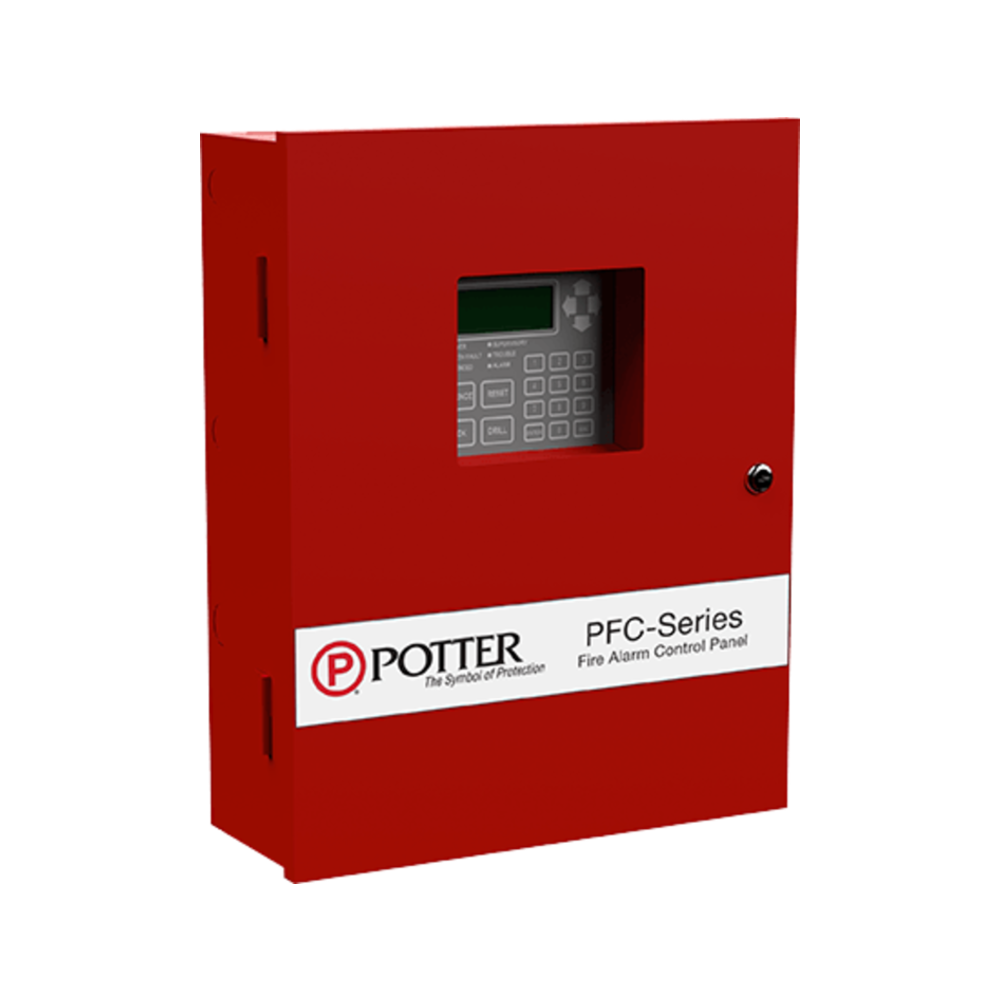

PFC-6006 Fire Alarm Control Panel

The Potter PFC-6006 is a high-performance, compact conventional fire alarm control panel (FACP) engineered to provide reliable detection and sprinkler monitoring for small to mid-sized commercial facilities. In the world of life safety, the control panel is the "brain" of the operation. The PFC-6006 is designed to receive signals from initiating devices—such as smoke detectors, manual pull stations, and waterflow switches—and translate them into immediate, life-saving action.

Designed by the Potter Electric Signal Company, this panel combines the simplicity of conventional 6-zone wiring with the sophisticated reporting technology required by modern fire codes. Whether you are managing a retail storefront, a professional office building, or a light industrial warehouse, the PFC-6006 offers a secure, space-efficient solution that prioritizes both occupant safety and ease of maintenance. With its built-in dual-line communicator and Ethernet capabilities, the PFC-6006 ensures that your facility is never alone, providing constant connectivity to central monitoring stations.

Advanced Conventional Logic: Beyond Simple Detection

While the PFC-6006 is classified as a "conventional" panel, its internal logic is anything but basic. It features six programmable Initiating Device Circuits (IDCs) that allow for precise system customization.

• Dedicated Waterflow Monitoring: Zone 1 is specifically configurable for Class A or Class B waterflow monitoring. This is a critical feature for facilities with automatic sprinkler systems, as it allows the panel to distinguish between a fire alarm and a supervisory "tamper" signal from a valve.
• Dual-Path Reporting: Reliability is the core of the PFC-6006. It features a built-in Dual Line Digital Alarm Communicator (DACT) for traditional phone line reporting, alongside integrated Ethernet/IP communication. This dual-path approach ensures that if a phone line is cut or fails, the emergency signal is still transmitted via the internet.
• Flexible Device Support: The panel is engineered to support a diverse ecosystem of conventional devices, including two-wire smoke detectors, heat detectors, and manual stations, allowing for a tailored safety profile based on your building's specific hazards.

The Potter Advantage: Built for Compliance and Longevity

• Durable Steel Enclosure: The PFC-6006 is housed in a heavy-duty, lockable steel cabinet. The integrated Lexan viewing window allows facility managers to check system status (Power, Alarm, Trouble, Supervisory) without needing to open the panel and expose sensitive electronics.
• 1.0 Amp "Clean" Power Supply: The panel delivers 1.0 Amp of total system power, providing a stable current for notification appliance circuits (NACs) and auxiliary power for devices like beam detectors or four-wire smoke sensors.
• Event History Buffer: Understanding the "why" behind a trouble signal is vital for maintenance. The PFC-6006 maintains a comprehensive event history, allowing technicians to troubleshoot intermittent issues by reviewing past system activity.
• Trilingual Support: To support a diverse workforce and international safety standards, the panel's interface and documentation support multiple languages, ensuring clarity during emergency operations.

The Potter PFC-6006 is frequently specified as a "Sprinkler Monitoring Panel" due to its specialized zone configurations:

• Small to Mid-Sized Retail: Provides a cost-effective, code-compliant solution for standalone retail buildings requiring both fire detection and waterflow monitoring.
• Educational & Daycare Centers: Its compact footprint allows for installation in small mechanical closets while providing enough zones to cover classrooms, offices, and kitchen areas.
• Warehouse & Storage: Ideal for facilities that require monitoring of tamper switches on fire pump valves and waterflow switches on riser assemblies.
• Multi-Unit Residential Common Areas: Provides a centralized point for monitoring fire safety in apartment lobbies, laundry rooms, and mechanical spaces.

Operating a fire alarm control panel carries significant regulatory responsibility. To remain compliant with NFPA 72 and local ordinances, the following protocols are mandatory:

• Initial Programming: The PFC-6006 must be programmed by a qualified fire alarm technician to ensure that zones are correctly identified (e.g., "Main Lobby Smoke" vs. "Riser 1 Waterflow").
• Annual Testing & Inspection: Every year, the panel's batteries, fuses, and communication paths must be tested. The DACT and Ethernet paths are verified to ensure they are successfully reaching the Central Monitoring Station.
• Battery Replacement: Backup batteries should typically be replaced every 3 to 5 years. The PFC-6006 monitors its own battery health and will trigger a "Trouble" light if it detects a low-voltage or disconnected battery condition.
• UL Listing Integrity: This panel is UL listed for fire alarm service. Any modifications or use of non-listed compatible devices can void the UL listing and result in a "Notice of Violation" from the Authority Having Jurisdiction (AHJ).

What is the difference between an "Addressable" panel and this "Conventional" panel?
In a conventional panel like the PFC-6006, devices are grouped into zones. If a smoke detector goes off, the panel tells you which zone has the fire (e.g., "Zone 3 - Warehouse"). Addressable panels can identify the exact individual detector. For small to mid-sized buildings, conventional panels are often preferred for their simplicity and lower cost.

Does this panel require a dedicated phone line?
While it has a dual-line DACT for phone lines, the PFC-6006 also features an Ethernet port. Many modern facilities choose to monitor their systems via the internet (IP) to eliminate the monthly cost of dedicated analog phone lines.

Can I monitor my fire pump with this panel?
Yes. You can program one of the zones as a "Supervisory" input to monitor fire pump run, phase reversal, or power failure, ensuring you are alerted to any condition that might prevent your fire suppression system from working.
