Set Screw Pulley Elbow Shipping Assembly (Single, 415670)

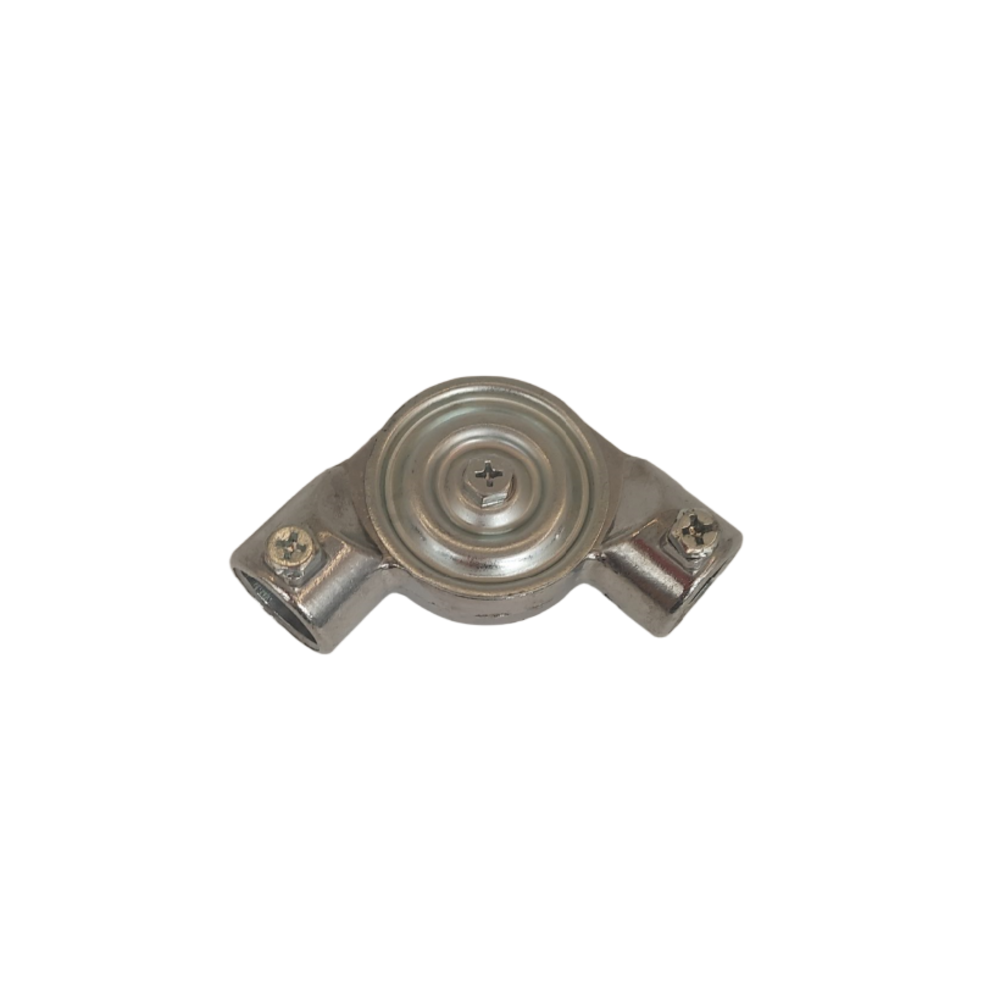

The Ansul Set Screw Pulley Elbow (415670) is a precision-engineered mechanical component designed to facilitate seamless 90-degree directional changes in ANSUL AUTOMAN detection and actuation cable lines. In a commercial kitchen hood, fire suppression cables must navigate a complex landscape of exhaust ducts, structural steel, and appliance headers. The 415670 provides the low-friction pivot point required to redirect these cables without inducing the parasitic drag or cable sawing that can disable a fire suppression system.

Manufactured with a durable cast body and featuring a secure set-screw mounting interface, this assembly is built for the high-vibration, high-heat environments of professional cooking lines. It is an essential zero-failure component for ensuring that the tension drop from a melted fusible link or the manual pull of a station is transmitted instantaneously to the release mechanism. For fire protection professionals, the 415670 is the industry standard for maintaining the kinetic integrity and code-compliant routing of any Ansul fire suppression network.

Mitigating Kinetic Friction

Every time a stainless steel cable turns a corner, it generates friction. In fire suppression, excessive friction can lead to a dead pull, where the line breaks but the cable does not move far enough to trip the control head. The 415670 utilizes a precision-machined internal pulley wheel that rolls with the cable, converting sliding friction into rolling friction and significantly reducing mechanical resistance compared to static conduit bends.

Maintaining Cable Eccentricity

If a cable is forced through a standard pipe elbow, it will eventually saw through the metal. The 415670 ensures the cable stays perfectly centered within its 90-degree arc. This maintains the cable's structural integrity and prevents cable binding, ensuring the 1/16 inch or 3/32 inch stainless steel line can travel its full rated distance during activation.

Set-Screw Stability

Unlike compression-only fittings, the set-screw design of the 415670 allows the pulley to be physically locked onto the 1/2 inch EMT conduit. This prevents the elbow from shifting under the high-tension load of an armed system, ensuring the system's cocking point remains constant over decades of service.

Compliance with NFPA 17A and 96

NFPA requires that all detection and actuation cables be protected and guided to ensure smooth and reliable operation. The 415670 is a UL-listed component of the Ansul R-102 system. Using standard plumbing elbows or non-listed pulleys is a code violation that can lead to red-tag failures during fire marshal inspections.

Simplified Pull-Test Verification

During mandatory semi-annual inspections, technicians must perform a trip test. The low-friction performance of the 415670 makes these tests highly predictable. A system using OEM Ansul pulleys will consistently trip at the rated tension, reducing troubleshooting time and getting the kitchen back into production faster.

Resistance to Heat and Grease Fouling

The 415670 features a closed-body design that shields the internal pulley wheel from aerosolized grease and carbon buildup. This ensures the internal wheel continues to spin freely, preventing the system from seizing up between service intervals.

• High-Volume Restaurant Lines: Directing the detection cable from the hood plenum, around the exhaust duct, and down to the Automan release enclosure.
• Manual Pull Station Routing: Providing the 90-degree turn needed to route the manual actuation cable through walls to an accessible exit path.
• Multi-Tank Manifolds: Coordinating cable movement across multiple agent tanks to ensure simultaneous discharge in large-scale facilities.
• Institutional Cafeterias: Maintaining a robust safety infrastructure that passes rigorous public health audits.
• Remote Gas Valve Actuation: Safeguarding the cable path that triggers mechanical gas shutoff valves located behind heavy equipment.

Conduit Alignment Protocol

When attaching the 415670 to 1/2 inch EMT, ensure the conduit is cut squarely and de-burred. A jagged conduit edge inside the pulley elbow can snag the cable, leading to activation failure.

Set-Screw Torque Verification

Tighten the set screw until it firmly bites into the conduit. If the elbow is loose, the cable tension will eventually pull the elbow out of alignment, causing nuisance trips or failure to discharge.

Visual Inspection for Fraying

During every service, technicians should check the cable path. If you see silver dust or frayed wires, it indicates the pulley wheel has seized or the alignment is off, and the elbow must be replaced immediately to avoid a mechanical malfunction.

Maximum Bend Limits

While efficient, NFPA 96 often limits the number of 90-degree bends allowed in a single detection line. Always refer to the system's as-built drawings to ensure you have not exceeded the maximum allowable mechanical resistance.

Can I use this pulley for a manual pull station line?

Yes. The 415670 is rated for both detection lines (fusible links) and manual actuation lines. Its robust construction can easily handle the high-force pull required to trigger the system manually.

Does this pulley need to be lubricated?

No. The internal wheel is designed for dry-operation. Adding grease or oil can attract kitchen dust, eventually creating a thick paste that will cause the wheel to seize. If the wheel does not spin freely, it is a failed safety component and must be replaced.

What is the difference between a "set screw" and a "compression" elbow?

The set screw version (415670) provides a mechanical lock that prevents the elbow from spinning on the conduit. This is generally preferred for high-tension lines where line-twist can become an issue during the system cocking process.
