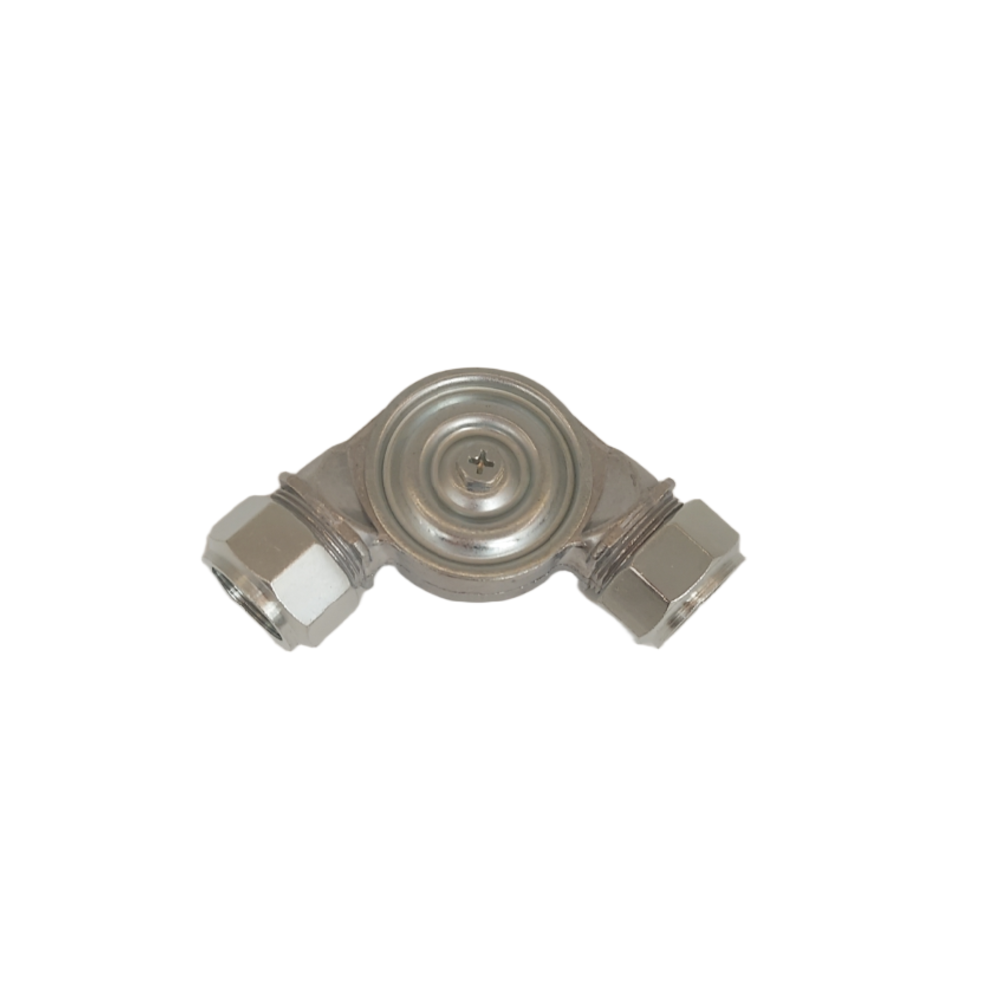

Compression Pulley Elbow Shipping Assembly, Single Item - 423250

The Ansul 423250 Compression Pulley Elbow is a mission-critical, high-performance routing component engineered specifically for the mechanical detection and actuation lines of Ansul R-102 and PIRANHA fire suppression systems. In the sophisticated architecture of a fire safety network, the detection line is the sensory system. Its success depends on the fluid, unhindered movement of the 1/16" stainless steel cable. The 423250 serves as the primary 90-degree routing junction, replacing traditional high-friction conduit bends with a precision-machined, rolling-pulley interface.

Designed for the high-velocity, grease-heavy environment of a commercial kitchen, the 423250 is more than a conduit fitting; it is a friction neutralizer. By providing a low-resistance path for the mechanical signal, it ensures that the kinetic energy from a melting fusible link or a manual pull station is transmitted instantly to the AUTOMAN release mechanism. For fire protection contractors, the 423250 is the definitive choice for cable drag mitigation in complex, multi-corner layouts where resistance would otherwise lead to a failure to discharge.

Mitigation of Kinetic Friction

Standard conduit bends create significant sliding friction as the cable rubs against the interior wall of the EMT. The 423250 utilizes a bearing-supported internal roller that converts this into rolling friction, drastically reducing the force required to actuate the system.

Line-of-Sight Tension Conservation

Every 90-degree turn is a potential force drain. The 423250 is engineered to maintain line-of-sight tension. By ensuring the cable remains centered within the 1/2" EMT conduit, it prevents the cable from biting into metal edges, which prevents fraying and eventual snapping.

Adhesive Effect Defense

Commercial kitchens are aerosolized grease environments. Over time, grease can penetrate conduit runs and solidify. The 423250 features a fully enclosed housing that shields the internal roller from this accumulation, preventing solidified grease from seizing the pulley.

Threadless Compression Logistics

Traditional threaded pulleys require time-consuming pipe threading. The 423250 utilizes a threadless compression connection, allowing it to snap directly onto standard 1/2" EMT. This reduces labor hours during installation and allows for rapid field adjustments.

Compliance with the 20-Pulley Limit

NFPA 17A and the Ansul Technical Manual set a strict 20-pulley limit per single cable run. Because the 423250 is the factory-listed component for this calculation, using it ensures that the system remains within its UL-tested performance envelope.

Zinc Alloy Metallurgy

Situated directly above high-heat appliances, routing hardware is subject to thermal cycling. The 423250 is manufactured with zinc alloy metallurgy that resists pitting corrosion, ensuring the roller remains free-spinning for the entire service life of the system.

• Multi-Appliance V-Bank Hoods: Routing detection lines across long appliance batteries where multiple 90-degree turns are required.
• Remote Manual Pull Stations: Ensuring the mechanical pull reaches the AUTOMAN release without being absorbed by cable drag.
• Industrial Paint Booths: Integrated into the Ansul I-101 system to route detection cables around complex machinery.
• Mobile Kitchen Units: Providing a vibration-resistant routing solution that ensures the cable remains centered despite vehicle motion.
• Retrofit Modernization: Replacing aged, high-friction conduit bends during 12-year overhauls to restore factory-rated actuation speed.

The Bottom-Out Seating Rule

When installing the 423250, the conduit must be pushed until it bottoms out against the internal shoulder. If partially inserted, the cable can catch on the raw edge of the pipe, potentially jamming the system.

Cable-Pull Fluidity Audit

During every 6-month inspection, perform a tension-sweep. While the system is locked out, the cable should be moved manually to verify every 423250 is spinning freely. A gritty feeling indicates grease-caking defense failure, requiring immediate replacement.

Compression Nut Torque

Nuts must be tightened to the point of immobility. A loose pulley can rotate under the tension of an actuation line discharge, causing the cable to misalign and bind.

Structural Member Mounting

Ensure the conduit run is secured to a structural member to prevent the entire run from shifting, which would alter the calibrated tension of the detection loop.

Can I use the 423250 with 1/8" cable?

No. The 423250 is specifically engineered for 1/16" stainless steel cable. Using a thicker cable can cause binding within the pulley housing, preventing the system from firing.

Is there a difference between the 423250 and a standard conduit elbow?

Yes. A standard conduit elbow is a hollow pipe; the cable rubs against the interior wall, creating high friction. The 423250 contains an internal rolling wheel. You cannot pass a fire inspection using standard conduit elbows for detection or actuation lines.

Does this pulley require lubrication?

No. The internal roller is designed to be maintenance-free. Adding oil or grease can be counterproductive, as it will attract and trap airborne kitchen grease, eventually leading to a seized pulley.
