Manual Reset Relay 426151

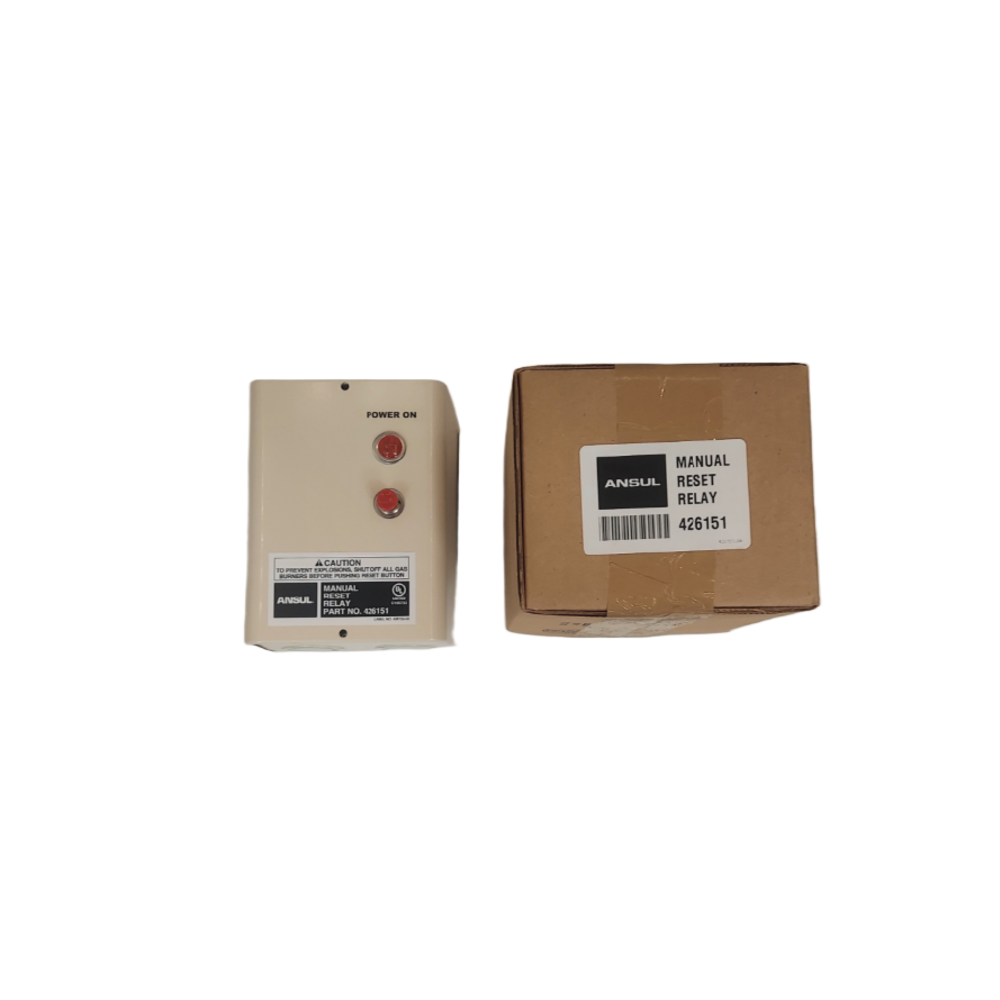

The Ansul R-102 Manual Reset Relay is a sophisticated electrical safety component used in conjunction with the Ansul R-102 Restaurant Fire Suppression System. While a standard switch simply turns power on or off, the Manual Reset Relay adds a critical layer of "Latching" logic to your kitchen's emergency response.

Its primary purpose is to control electric gas valves and other electrical appliances. In the event of a fire, the suppression system triggers the relay to cut power instantly. However, unlike a standard light switch, this relay "remembers" the alarm state. Even after the fire is out and the suppression system is reset, the relay will not allow power to return to the cooking line until a human being manually pushes the reset button. This prevents gas from flowing back into a potentially damaged or unlit appliance, averting a secondary explosion or gas leak.

Why This Component is Essential for Compliance

In many jurisdictions, local fire codes and NFPA 17A regulations mandate that fuel sources cannot automatically restart after a fire suppression discharge. The Ansul 426151 is the approved solution to meet this requirement.

• Fail-Safe Operation: Designed to remain in the "Tripped" position during a power outage or system actuation.
• Intentional Restart: By requiring a manual physical reset, it forces the kitchen manager or fire technician to verify that all pilot lights are out and the cooking area is safe before re-energizing the equipment.
• High-Load Compatibility: Operates on standard 120V / 60 Hz power, making it compatible with most commercial electrical panels and solenoid-style electric gas valves.

Key Technical Differentiators

It is important to distinguish the Manual Reset Relay from the Micro Switch:

• Micro Switch (Mechanical): Activated physically by the movement of the Ansul Automan's firing pin.
• Manual Reset Relay (Electrical): Activated by an electrical pulse from the system. It "latches" the power off, whereas a micro switch would simply flip back once the mechanical tension is restored.
• Model 426151: This is the current, high-reliability replacement for the older Ansul 14702 model.

The Ansul Manual Reset Relay is typically found in professional kitchens that utilize Electric Gas Valves or Shunt-Trip Breakers:

• Solenoid Gas Valves: It acts as the "Gatekeeper" for the solenoid, ensuring the valve stays closed after a discharge.
• Electrical Appliance Interlock: Prevents deep fryers and griddles from heating up immediately after a system reset, protecting the heating elements from being damaged before the kitchen is fully cleaned.
• Remote Alarm Integration: Can be used to maintain a "Trouble" signal to a building's main fire alarm panel until the site is cleared by a professional.

Maintenance and Professional Service

As a life-safety electrical component, the Ansul 426151 requires semi-annual testing by a certified technician:

1. Trip Test: During the 6-month inspection, the technician will electrically trip the relay to ensure it successfully disconnects power to the gas valve.
2. Reset Confirmation: Verification that the relay stays "locked" in the off position and only restores power when the manual button is firmly depressed.
3. Terminal Check: Ensuring all wiring connections remain tight and free of the oxidation often caused by high-humidity kitchen environments.

The Ansul 426151 Manual Reset Relay meets critical regulatory requirements for commercial kitchen fire protection:

• UL Listed: Tested and certified by Underwriters Laboratories for reliable performance in fire safety applications.
• CSA Approved: Meets Canadian Standards Association requirements for electrical safety components.
• NFPA 17A & NFPA 96: Complies with National Fire Protection Association standards requiring manual verification before fuel sources can be re-energized after a fire suppression event.
• Latching Memory Function: Ensures compliance with local fire codes that prohibit automatic restart of fuel sources after system discharge.
